20CMH (1985)
Optional Parts 2

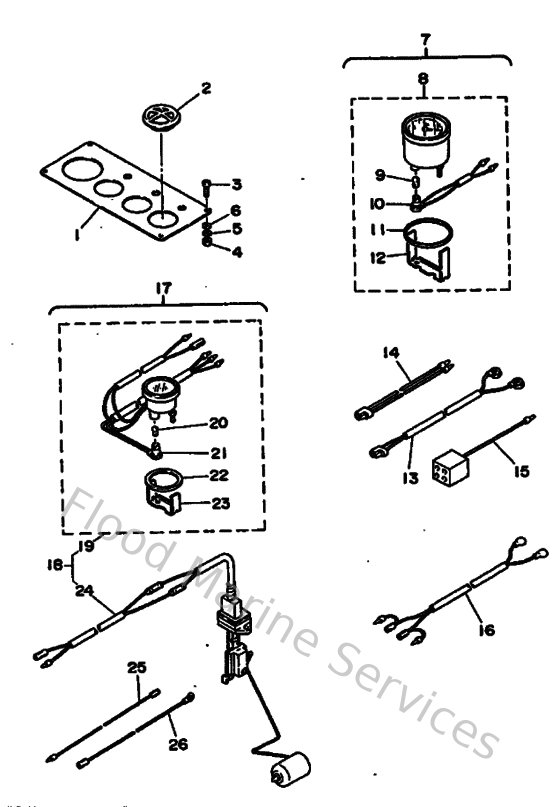

Diagram: Optional Parts 2
Parts List
Reference
Description
Price
1
688836110000
Panel, meter
Loading…
↗
2
688835590000
Cover, meter
Loading…
↗
3
989030502500
Screw, bind
Loading…
↗
4
953030560000
Nut, hexagon (663)
Loading…
↗
5
929900510000
Ybs67-5 washer, spring
Loading…
↗
6
929030560000
Washer, plain (646)
Loading…
↗
8
688835400000
Tachometer assembly
Loading…
↗
9
688835160000
Bulb, pilot (t6.5, 12v-1.7w)
Loading…
↗
10
688835360000
Socket, meter
Loading…
↗
12
688835440000
Plate, Fitting
Loading…
↗
16
689835532000
Wire, lead
Loading…
↗
19
688857510000
Fuel Gauge
Loading…
↗
22
688836640000
Damper
Loading…
↗
24
688857520100
Sender unit assembly, fuel meter
Loading…
↗
25
66383553Y000
Wire, lead
Loading…
↗
26
66383553A000
Wire, lead
Loading…
↗
