25JETO (1989)
Optional Parts 2

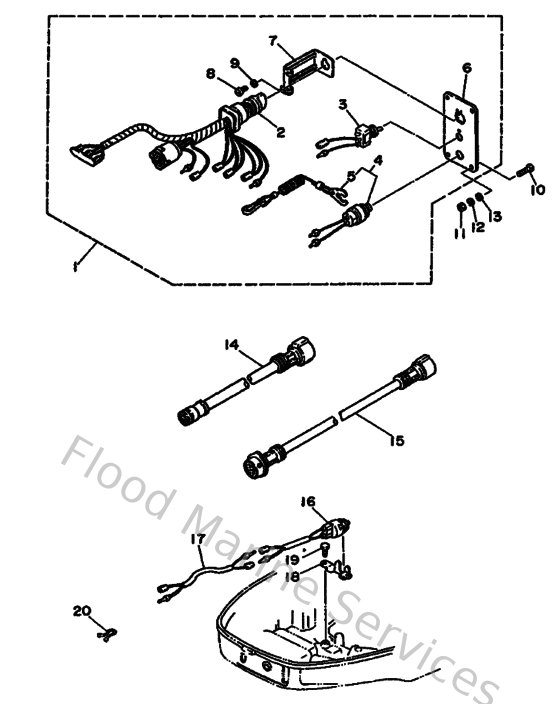

Diagram: Optional Parts 2
Parts List
Reference
Description
Price
1
689825701500
Panel switch assembly
Loading…
↗
2
689825100000
Main switch assembly
Loading…
↗
3
703825740000
Switch, choke
Loading…
↗
4
688825750200
Engine stop switch assembly
Loading…
↗
5
682825560000
Lanyard, stop switch
Loading…
↗
6
689825710200
Panel, Switch
Loading…
↗
7
663825810100
Stay, cord clamp
Loading…
↗
8
983030400800
Screw, pan head (713)
Loading…
↗
9
929900410000
Ybs67-4 washer, spring
Loading…
↗
11
953800560000
Nut, hexagon (663)
Loading…
↗
12
929900510000
Ybs67-5 washer, spring
Loading…
↗
13
929900560000
Washer, plain (646)
Loading…
↗
14
688825865000
Extension, wire harness
Loading…
↗
15
688825861100
Extension, wire harness
Loading…
↗
16
688825401200
Neutral switch assembly
Loading…
↗
17
6H4825530000
Extension, wire lead
Loading…
↗
18
6J8825540000
Stay, neutral switch
Loading…
↗
19
973130601200
Bolt(gh1)
Loading…
↗
20
904651814700
Clamp
Loading…
↗
