Yamaha Outboard Parts - Optional Parts 2 - 60FETO (1985) | Flood Marine

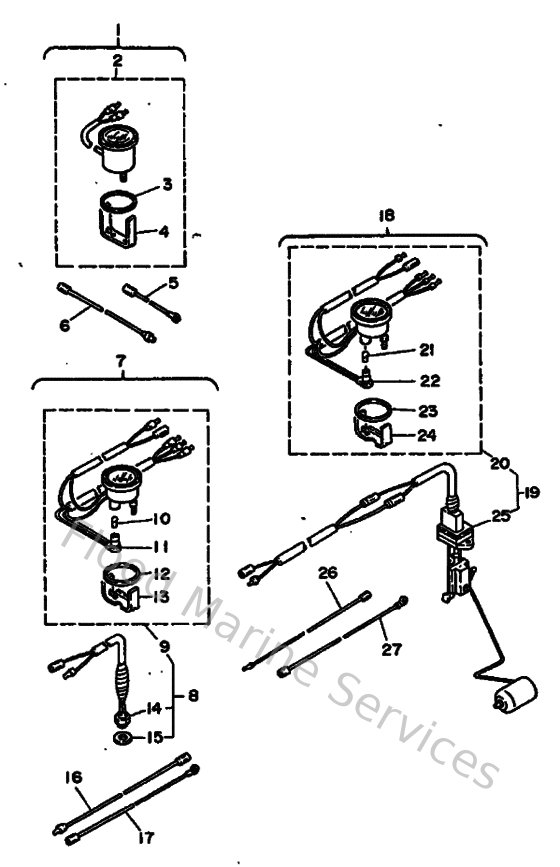

Diagram: Optional Parts 2

Diagram

Parts List

Reference
Description
Price


2
688835040000
Hour Meter assembly
Loading…

↗
3
688836640000
Damper
Loading…

↗
5
66383553A000
Wire, lead
Loading…

↗
6
66383553Y000
Wire, lead
Loading…

↗
8
688835900000
Water temperature assembly
Loading…

↗
9
6Y5835900000
Water temperature assembly
Loading…

↗
10
688835160000
Bulb, pilot (t6.5, 12v-1.7w)
Loading…

↗
11
688835360000
Socket, meter
Loading…

↗
13
688836650000
Plate, fitting
Loading…

↗
14
688835910000
Thermo unit
Loading…

↗
15
904301411500
Gasket (663)
Loading…

↗
20
688857510000
Fuel Gauge
Loading…

↗
