Yamaha Outboard Parts - Optional Parts 2 - 70BETO (1994) | Flood Marine

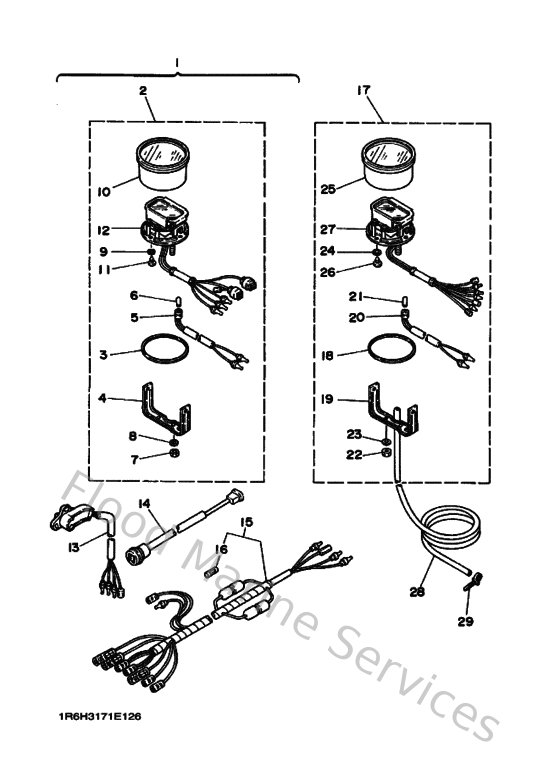

Diagram: Optional Parts 2

Diagram

Parts List

Reference
Description
Price


2
6Y5835000300
Digital tachometer assembly
Loading…

↗
3
6Y58353J0000
Gasket, Upper
Loading…

↗
6
4YR835171000
Bulb
Loading…

↗
7
953010460000
Nut(6ta)
Loading…

↗
8
929900410000
Ybs67-4 washer, spring
Loading…

↗
11
901640301600
Screw, Tapping
Loading…

↗
12
6Y58357J0100
Digital tachometer assembly
Loading…

↗
13
6H1836721000
Trim Sender
Loading…

↗
14
6H1825410000
Wire, Lead
Loading…

↗
15
6Y583553N000
Wire, lead (l=2.5m)
Loading…

↗
16
1E6821510000
Fuse (10a)
Loading…

↗
19
6Y58355XM000
Bracket Meter 1
Loading…

↗
21
10L835170000
Bulb
Loading…

↗
27
6Y58357JA000
No Longer Available
Loading…

↗
28
6Y5835570000
Tube (8m)
Loading…

↗
29
9046511M1000
Clamp
Loading…

↗
