130BETOL (1993)
Optional Parts 3

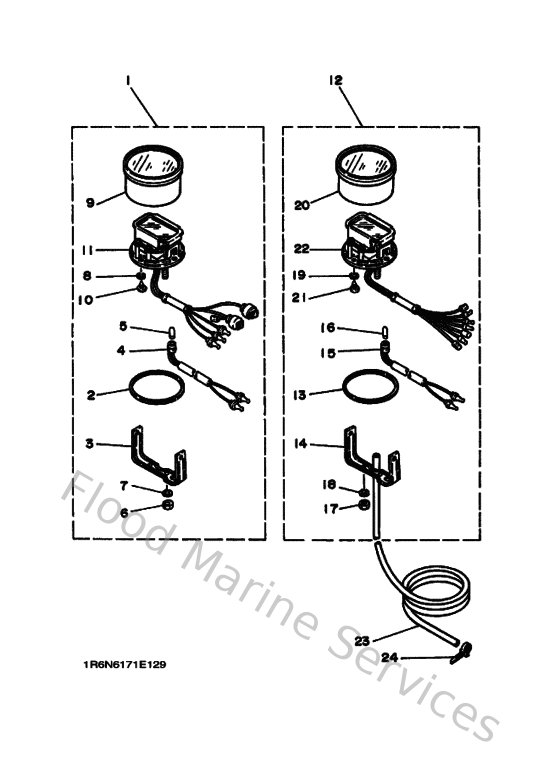

Diagram: Optional Parts 3
Parts List
Reference
Description
Price
1
6Y5835000300
Digital tachometer assembly
Loading…
↗
2
6Y58353J0000
Gasket, Upper
Loading…
↗
5
10L835170000
Bulb
Loading…
↗
6
953070460000
Nut(6ta)
Loading…
↗
7
929010410000
Ybs67-4 washer, spring
Loading…
↗
10
901640301600
Screw, Tapping
Loading…
↗
11
6Y583500C900
Digital tachometer assembly
Loading…
↗
14
6Y58355XM000
Bracket Meter 1
Loading…
↗
17
953010460000
Nut(6ta)
Loading…
↗
18
929900410000
Ybs67-4 washer, spring
Loading…
↗
22
6Y58357JA000
No Longer Available
Loading…
↗
23
6Y5835570000
Tube (8m)
Loading…
↗
24
9046511M1000
Clamp
Loading…
↗
