20CMH (1985)
Optional Parts 3

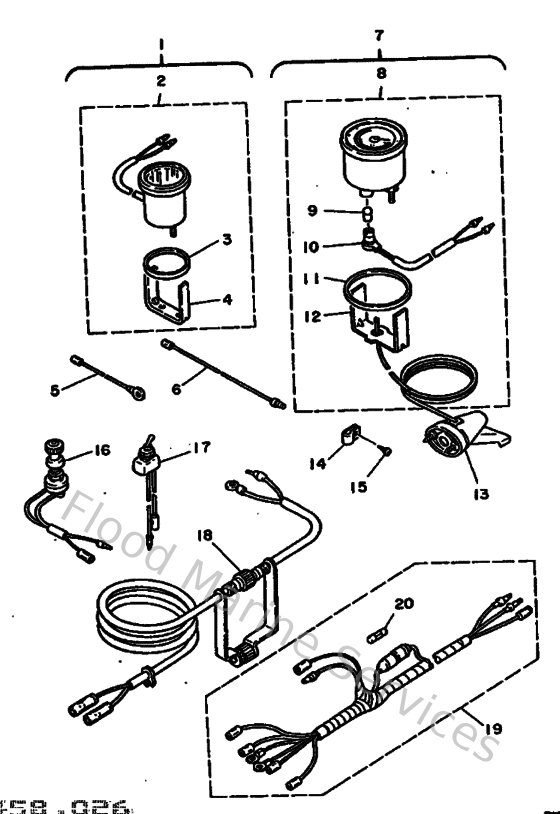

Diagram: Optional Parts 3
Parts List
Reference
Description
Price
2
688835040000
Hour Meter assembly
Loading…
↗
3
688836640000
Damper
Loading…
↗
4
688835570000
Tube (8m)
Loading…
↗
5
66383553A000
Wire, lead
Loading…
↗
6
66383553Y000
Wire, lead
Loading…
↗
8
688835100100
Speedometer assembly
Loading…
↗
9
688835160000
Bulb, pilot (t6.5, 12v-1.7w)
Loading…
↗
10
688835360000
Socket, meter
Loading…
↗
13
688835560100
Sender (with hose l:6m/d:4mm)
Loading…
↗
14
906013140200
021-58119-01 clip,nylon 14
Loading…
↗
15
977804011600
Screw,panh.tapping
Loading…
↗
16
688825200000
Lamp switch assembly
Loading…
↗
17
688825260000
Switch, lamp
Loading…
↗
18
689825532000
Extension, wire lead
Loading…
↗
20
1E6821510000
Fuse (10a)
Loading…
↗
