20DMHO (1989)
Optional Parts 3

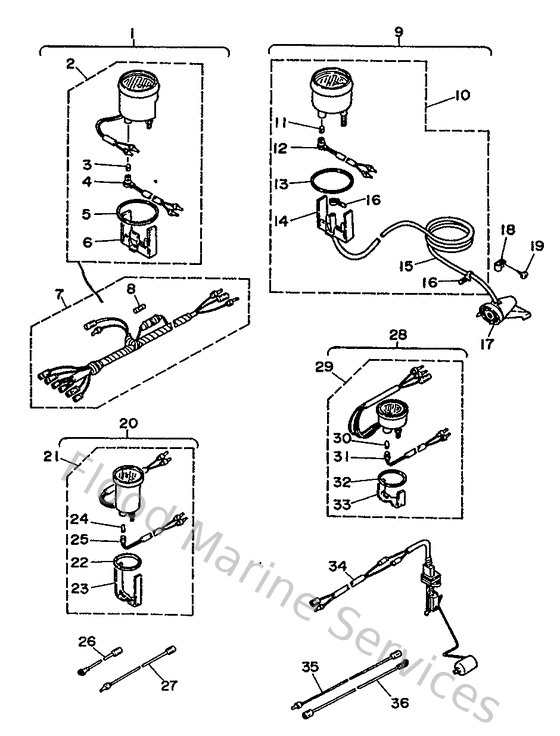

Diagram: Optional Parts 3
Parts List
Reference
Description
Price
1
6Y5W00801100
Tachometer kit
Loading…
↗
2
6Y5835401200
Tachometer assembly
Loading…
↗
3
688835160000
Bulb, pilot (t6.5, 12v-1.7w)
Loading…
↗
4
6Y5835361000
Socket, meter
Loading…
↗
5
6Y5835230000
Damper
Loading…
↗
6
6Y5835140000
Plate, fitting
Loading…
↗
7
6Y583553N000
Wire, lead (l=2.5m)
Loading…
↗
8
1E6821510000
Fuse (10a)
Loading…
↗
9
6Y5W00814000
Speedometer Kit
Loading…
↗
10
6Y5835103000
Speedometer assembly (km/h,knots,m
Loading…
↗
12
688835360000
Socket, meter
Loading…
↗
15
688835570000
Tube (8m)
Loading…
↗
16
904651009800
Clamp
Loading…
↗
17
688835560100
Sender (with hose l:6m/d:4mm)
Loading…
↗
18
906013140200
021-58119-01 clip,nylon 14
Loading…
↗
20
6Y5W00883100
Hour meter kit
Loading…
↗
21
6Y5835041100
Hour meter assembly (digital)
Loading…
↗
22
688836640000
Damper
Loading…
↗
23
6Y5835770000
Plate, fitting
Loading…
↗
24
6Y5835180000
Bulb (12v-1.7w) t6.5
Loading…
↗
25
6Y5835360000
Socket, meter
Loading…
↗
26
66383553A000
Wire, lead
Loading…
↗
27
66383553Y000
Wire, lead
Loading…
↗
28
6Y5W00882000
Fuel meter kit
Loading…
↗
29
6Y5857500000
Fuel meter assembly
Loading…
↗
33
6Y5835440000
Plate, fitting
Loading…
↗
34
688857520100
Sender unit assembly, fuel meter
Loading…
↗
