Yamaha Outboard Parts - Optional Parts 3 - 55BM (1990) | Flood Marine

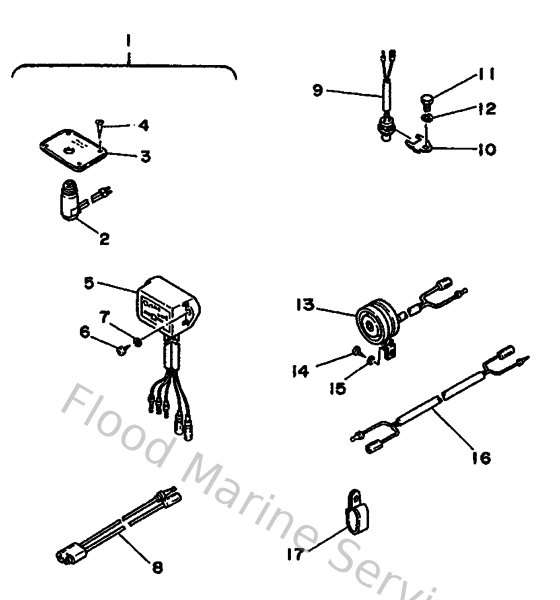

Diagram: Optional Parts 3

Diagram

Parts List

Reference
Description
Price


2
663843010100
Pilot lamp ass'y
Loading…

↗
3
663843090000
Plate set
Loading…

↗
4
954283131600
Screw, round tapping
Loading…

↗
6
977806052000
Screw, tapping(6k8)
Loading…

↗
7
929900660000
Washer, plain (646)
Loading…

↗
9
688825600000
Thermo switch assembly
Loading…

↗
10
663825880000
Plate
Loading…

↗
11
970850601000
Bolt
Loading…

↗
12
929900610000
Washer(6a1)
Loading…

↗
13
688833831100
Buzzer
Loading…

↗
14
977806011600
Screw, panhead tapping (j20)
Loading…

↗
15
929900560000
Washer, plain (646)
Loading…

↗
16
688833731000
Lead, horn
Loading…

↗
17
9046106M0100
Clamp (6a4)
Loading…

↗
