L250AETO (1991)
Optional Parts 3

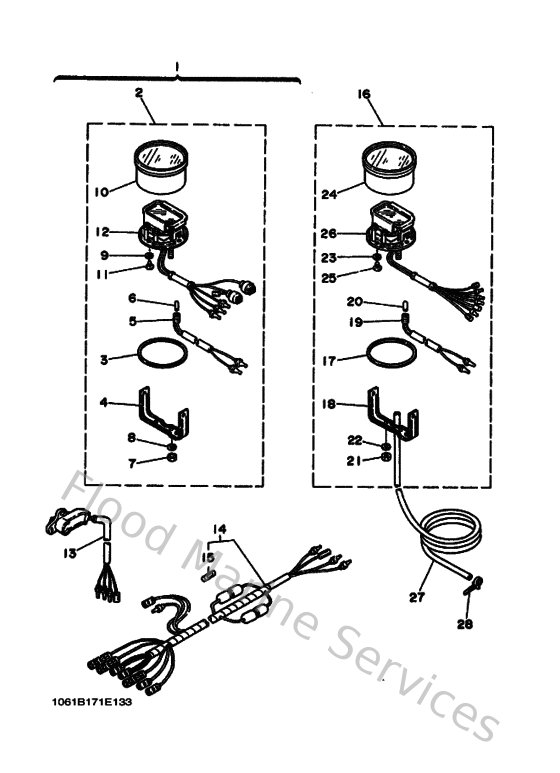

Diagram: Optional Parts 3
Parts List
Reference
Description
Price
2
6Y5835000300
Digital tachometer assembly
Loading…
↗
3
6Y58353J0000
Gasket, Upper
Loading…
↗
6
10L835170000
Bulb
Loading…
↗
7
953070460000
Nut(6ta)
Loading…
↗
8
929010410000
Ybs67-4 washer, spring
Loading…
↗
11
901640301600
Screw, Tapping
Loading…
↗
12
6Y58357J0100
Digital tachometer assembly
Loading…
↗
13
6R3836720100
Trim sender
Loading…
↗
14
6Y583553M000
Wire, lead (l=2.5m)
Loading…
↗
15
1E6821510000
Fuse (10a)
Loading…
↗
18
6Y58355XM000
Bracket Meter 1
Loading…
↗
27
6Y5835570000
Tube (8m)
Loading…
↗
28
9046511M1000
Clamp
Loading…
↗
