25DMH (1986)
Optional Parts 4

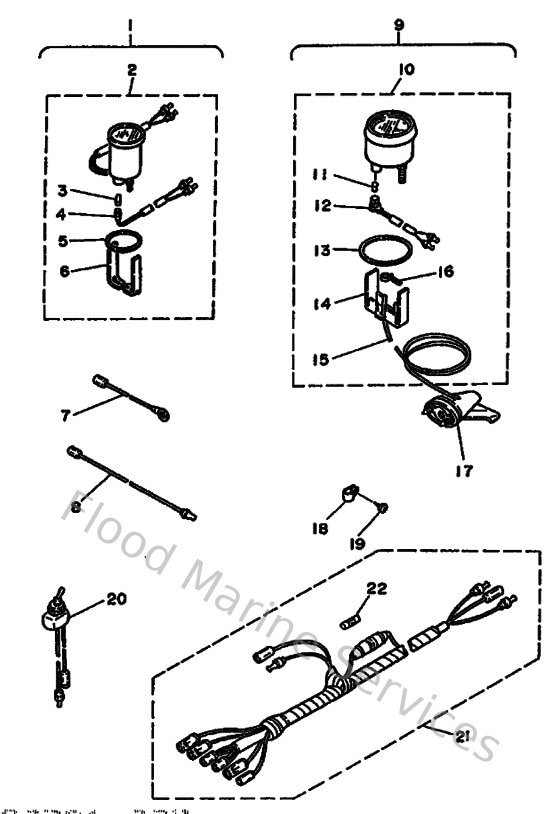

Diagram: Optional Parts 4
Parts List
Reference
Description
Price
1
6Y5W00883000
Hour meter kit
Loading…
↗
2
6Y5835040000
Hour meter kit
Loading…
↗
3
6Y5835180000
Bulb (12v-1.7w) t6.5
Loading…
↗
4
6Y5835360000
Socket, meter
Loading…
↗
5
688836640000
Damper
Loading…
↗
7
66383553A000
Wire, lead
Loading…
↗
8
66383553Y000
Wire, lead
Loading…
↗
9
6Y5W00814000
Speedometer Kit
Loading…
↗
10
6Y5835103000
Speedometer assembly (km/h,knots,m
Loading…
↗
11
688835160000
Bulb, pilot (t6.5, 12v-1.7w)
Loading…
↗
12
688835360000
Socket, meter
Loading…
↗
13
6Y5835230000
Damper
Loading…
↗
14
6Y5835140000
Plate, fitting
Loading…
↗
15
688835570000
Tube (8m)
Loading…
↗
16
9046511M1000
Clamp
Loading…
↗
17
688835560000
Sender (with hose l:6m/d:4mm)
Loading…
↗
18
906013140200
021-58119-01 clip,nylon 14
Loading…
↗
19
977804011600
Screw,panh.tapping
Loading…
↗
20
688825260000
Switch, lamp
Loading…
↗
21
6Y5835530000
Wire, lead (l=2.5m)
Loading…
↗
22
1E6821510000
Fuse (10a)
Loading…
↗
