Yamaha Outboard Parts - Optional Parts 4 - 25NEMO (1993) | Flood Marine

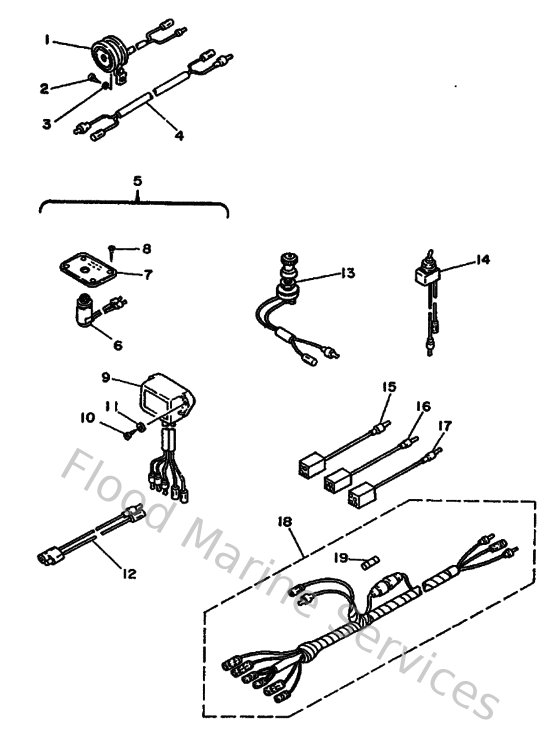

Diagram: Optional Parts 4

Diagram

Parts List

Reference
Description
Price


1
688833831100
Buzzer
Loading…

↗
2
977806051600
Screw, panhead tapping (j20)
Loading…

↗
3
929900560000
Washer, plain (646)
Loading…

↗
4
688833731000
Lead, horn
Loading…

↗
6
663843010100
Pilot lamp ass'y
Loading…

↗
7
663843090000
Plate set
Loading…

↗
8
954283131600
Screw, round tapping
Loading…

↗
10
977806052000
Screw, tapping(6k8)
Loading…

↗
11
929900660000
Washer, plain (646)
Loading…

↗
12
663825210900
Wire, Lead
Loading…

↗
13
688825200000
Lamp switch assembly
Loading…

↗
14
688825260000
Switch, lamp
Loading…

↗
15
6Y5821490000
Wire, lead 3
Loading…

↗
16
6Y5821170000
Wire, lead
Loading…

↗
17
6Y5825210000
Wire, lead
Loading…

↗
18
6Y5835530000
Wire, lead (l=2.5m)
Loading…

↗
19
1E6821510000
Fuse (10a)
Loading…

↗
