40QMH (1992)
Optional Parts 4

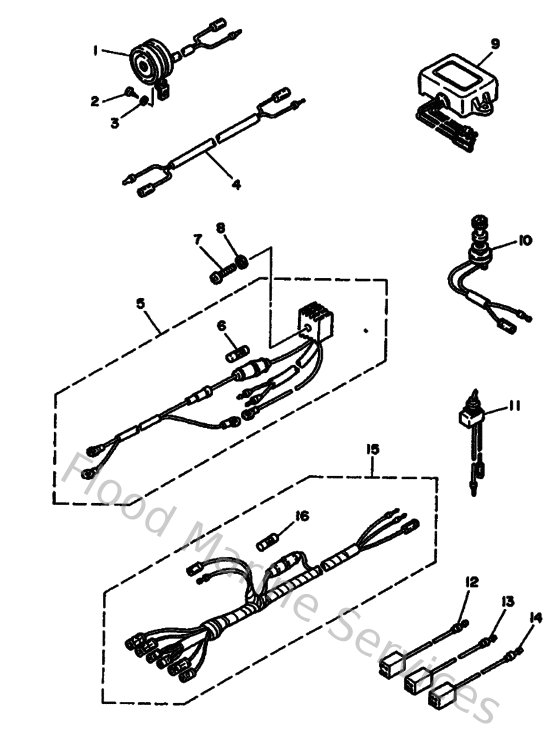

Diagram: Optional Parts 4
Parts List
Reference
Description
Price
1
688833831100
Buzzer
Loading…
↗
2
977806051600
Screw, panhead tapping (j20)
Loading…
↗
3
929900560000
Washer, plain (646)
Loading…
↗
5
676819700100
Rectifier assembly
Loading…
↗
6
682821510000
Fuse
Loading…
↗
7
985800552500
Screw, panhead (a93)
Loading…
↗
9
663819101000
Voltage Regulator assembly
Loading…
↗
10
688825200000
Lamp switch assembly
Loading…
↗
11
688825260000
Switch, lamp
Loading…
↗
12
6Y5821490000
Wire, lead 3
Loading…
↗
13
6Y5821170000
Wire, lead
Loading…
↗
14
6Y5825210000
Wire, lead
Loading…
↗
15
6Y5835530000
Wire, lead (l=2.5m)
Loading…
↗
16
1E6821510000
Fuse (10a)
Loading…
↗
