Yamaha Outboard Parts - Optional Parts 4 - 50DEMTO (1985) | Flood Marine

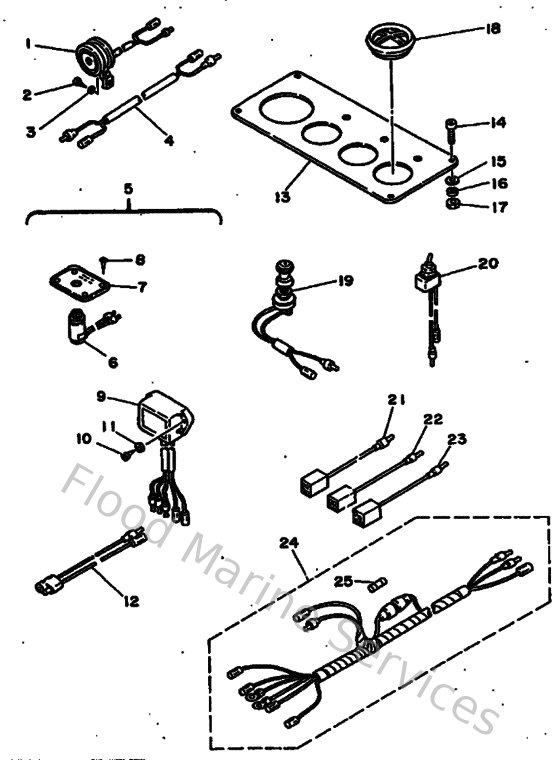

Diagram: Optional Parts 4

Diagram

Parts List

Reference
Description
Price


1
688833831000
Buzzer
Loading…

↗
2
977806051600
Screw, panhead tapping (j20)
Loading…

↗
3
929030560000
Washer, plain (646)
Loading…

↗
4
688833731000
Lead, horn
Loading…

↗
6
663843010000
Pilot lamp ass'y
Loading…

↗
7
663843090000
Plate set
Loading…

↗
8
954283131600
Screw, round tapping
Loading…

↗
10
977806012000
Screw, tapping(6k8)
Loading…

↗
11
929030660000
Washer, plain (646)
Loading…

↗
12
663825210900
Wire, Lead
Loading…

↗
13
688836110000
Panel, meter
Loading…

↗
14
989030502500
Screw, bind
Loading…

↗
16
929030510000
Ybs67-5 washer, spring
Loading…

↗
17
953030560000
Nut, hexagon (663)
Loading…

↗
18
688835590000
Cover, meter
Loading…

↗
19
688825200000
Lamp switch assembly
Loading…

↗
20
688825260000
Switch, lamp
Loading…

↗
21
688821490000
Wire, lead 3
Loading…

↗
22
688821170000
Wire, lead
Loading…

↗
23
688825210000
Wire, lead
Loading…

↗
24
688835531000
Wire, lead
Loading…

↗
25
1E6821510000
Fuse (10a)
Loading…

↗
