Yamaha Outboard Parts - Optional Parts 4 - 60FETO (1987) | Flood Marine

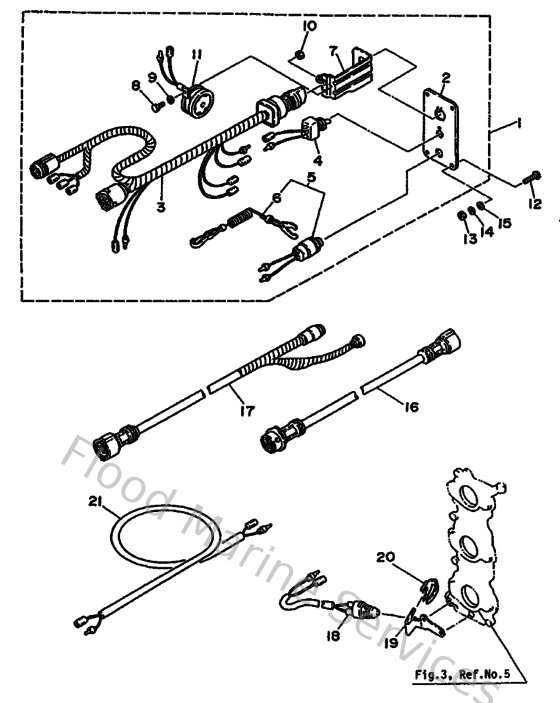

Diagram: Optional Parts 4

Diagram

Parts List

Reference
Description
Price


1
704825700100
Panel switch assembly
Loading…

↗
2
689825710200
Panel, Switch
Loading…

↗
3
704825100100
Main switch assembly
Loading…

↗
4
6K1825740000
Switch, choke
Loading…

↗
5
688825750100
Engine stop switch assembly
Loading…

↗
6
682825560000
Lanyard, stop switch
Loading…

↗
7
704825810000
Stay, Cord Clamp
Loading…

↗
8
973030501200
Bolt, hexagon
Loading…

↗
9
929900510000
Ybs67-5 washer, spring
Loading…

↗
10
953800570000
Nut (656)
Loading…

↗
11
688833831100
Buzzer
Loading…

↗
12
9014905M0500
Screw(6k0)
Loading…

↗
13
953800560000
Nut, hexagon (663)
Loading…

↗
15
929900560000
Washer, plain (646)
Loading…

↗
16
6888258A3000
10p main harness mec 3m (10ft)
Loading…

↗
17
6888258A5000
10p main harness mec 5m (16ft)
Loading…

↗
18
6H3825400000
Neutral switch assembly
Loading…

↗
19
6H3825540000
Stay, neutral switch
Loading…

↗
20
663825550100
Plate
Loading…

↗
21
688825411000
Wire, lead
Loading…

↗
