90AETOL (1985)
Optional Parts 4

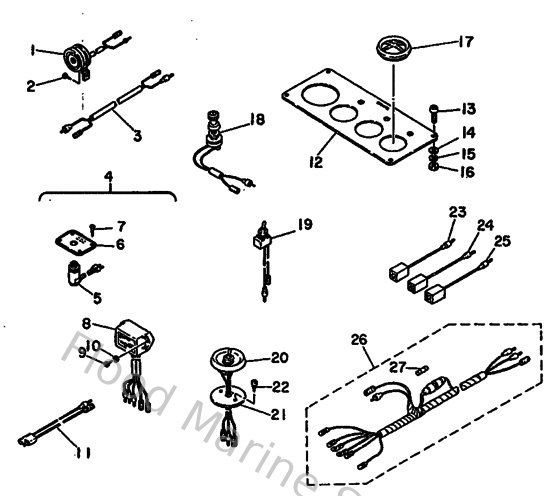

Diagram: Optional Parts 4
Parts List
Reference
Description
Price
1
688833831000
Buzzer
Loading…
↗
2
977805011200
Screw, tapping(61a)
Loading…
↗
3
688833731000
Lead, horn
Loading…
↗
5
663843010000
Pilot lamp ass'y
Loading…
↗
6
663843090000
Plate set
Loading…
↗
7
9016003M0100
Screw, round tapping
Loading…
↗
9
977806012000
Screw, tapping(6k8)
Loading…
↗
10
929030660000
Washer, plain (646)
Loading…
↗
11
663825210900
Wire, Lead
Loading…
↗
12
688836110000
Panel, meter
Loading…
↗
13
989030502500
Screw, bind
Loading…
↗
14
929900560000
Washer, plain (646)
Loading…
↗
15
929030510000
Ybs67-5 washer, spring
Loading…
↗
16
953030560000
Nut, hexagon (663)
Loading…
↗
17
688835590000
Cover, meter
Loading…
↗
18
688825200000
Lamp switch assembly
Loading…
↗
19
688825260000
Switch, lamp
Loading…
↗
20
688825631000
Trim & tilt switch
Loading…
↗
21
688823880000
Plate
Loading…
↗
22
977804011600
Screw,panh.tapping
Loading…
↗
23
688821490000
Wire, lead 3
Loading…
↗
24
688821170000
Wire, lead
Loading…
↗
25
688825210000
Wire, lead
Loading…
↗
26
688835531000
Wire, lead
Loading…
↗
27
1E6821510000
Fuse (10a)
Loading…
↗
