90AETOL (1992)
Optional Parts 4

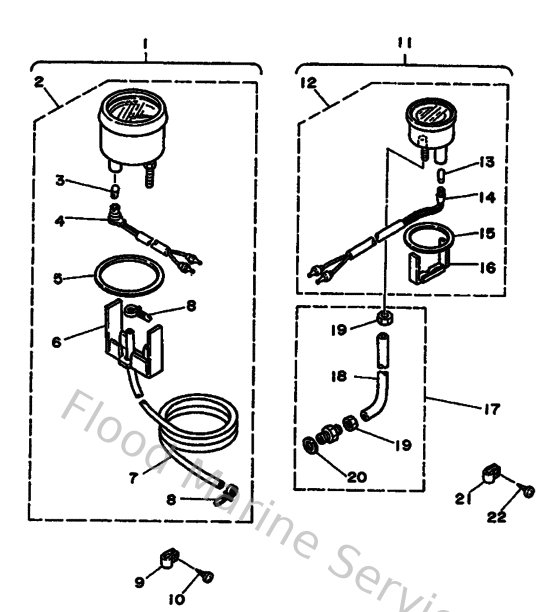

Diagram: Optional Parts 4
Parts List
Reference
Description
Price
2
6Y5835103000
Speedometer assembly (km/h,knots,m
Loading…
↗
3
688835160000
Bulb, pilot (t6.5, 12v-1.7w)
Loading…
↗
5
6Y5835230000
Damper
Loading…
↗
6
6Y5835140000
Plate, fitting
Loading…
↗
7
688835570000
Tube (8m)
Loading…
↗
8
904651009800
Clamp
Loading…
↗
9
906013140200
021-58119-01 clip,nylon 14
Loading…
↗
10
977804011600
Screw,panh.tapping
Loading…
↗
11
6Y5W00880000
Water Pressure Meter Kit
Loading…
↗
12
6Y5836601000
Water pressure meter assembly
Loading…
↗
13
6Y5835180000
Bulb (12v-1.7w) t6.5
Loading…
↗
14
6Y5835360000
Socket, meter
Loading…
↗
15
688836640000
Damper
Loading…
↗
16
688836650000
Plate, fitting
Loading…
↗
17
688836670000
Sender
Loading…
↗
18
688836660000
Tube
Loading…
↗
19
663836680000
Nut, nipple
Loading…
↗
20
904301411500
Gasket (663)
Loading…
↗
