L200BETOL (1990)
Optional Parts 4

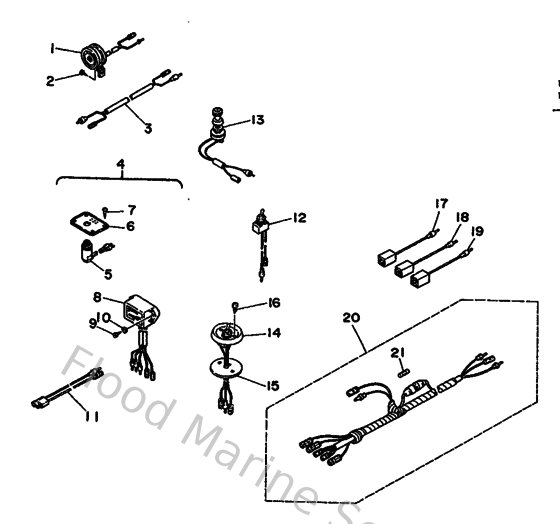

Diagram: Optional Parts 4
Parts List
Reference
Description
Price
1
688833831100
Buzzer
Loading…
↗
2
977805011200
Screw, tapping(61a)
Loading…
↗
3
688833731000
Lead, horn
Loading…
↗
5
663843010100
Pilot lamp ass'y
Loading…
↗
6
663843090000
Plate set
Loading…
↗
7
954283131600
Screw, round tapping
Loading…
↗
9
977806012000
Screw, tapping(6k8)
Loading…
↗
10
929900660000
Washer, plain (646)
Loading…
↗
11
663825210900
Wire, Lead
Loading…
↗
12
688825260000
Switch, lamp
Loading…
↗
13
688825200000
Lamp switch assembly
Loading…
↗
14
688825631000
Trim & tilt switch
Loading…
↗
15
688823880000
Plate
Loading…
↗
16
977804011600
Screw,panh.tapping
Loading…
↗
17
6Y5825210000
Wire, lead
Loading…
↗
18
6Y5821490000
Wire, lead 3
Loading…
↗
19
6Y5821170000
Wire, lead
Loading…
↗
20
6Y5835530000
Wire, lead (l=2.5m)
Loading…
↗
21
1E6821510000
Fuse (10a)
Loading…
↗
