Yamaha Outboard Parts - Optional Parts 5 - L250AETO (1993) | Flood Marine

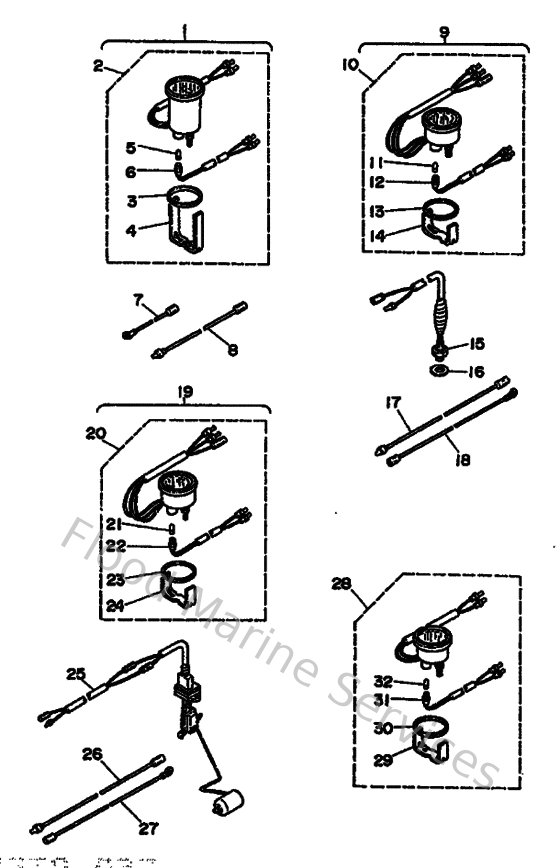

Diagram: Optional Parts 5

Diagram

Parts List

Reference
Description
Price


1
6Y5W00883100
Hour meter kit
Loading…

↗
2
6Y5835040100
Hour meter assembly
Loading…

↗
3
688836640000
Damper
Loading…

↗
4
6Y5835770000
Plate, fitting
Loading…

↗
5
6Y5835180000
Bulb (12v-1.7w) t6.5
Loading…

↗
6
6Y5835360000
Socket, meter
Loading…

↗
7
66383553A000
Wire, lead
Loading…

↗
8
66383553Y000
Wire, lead
Loading…

↗
9
6Y5W00881000
Water Temp. Meter Kit
Loading…

↗
10
6Y5835900000
Water temperature assembly
Loading…

↗
14
6Y5835440000
Plate, fitting
Loading…

↗
15
688835910000
Thermo unit
Loading…

↗
16
904301411500
Gasket (663)
Loading…

↗
19
6Y5W00882000
Fuel meter kit
Loading…

↗
20
6Y5857500000
Fuel meter assembly
Loading…

↗
25
688857520100
Sender unit assembly, fuel meter
Loading…

↗
28
6Y5835030000
Voltmeter assembly
Loading…

↗
