55BM (1995)
Optionnelles 1

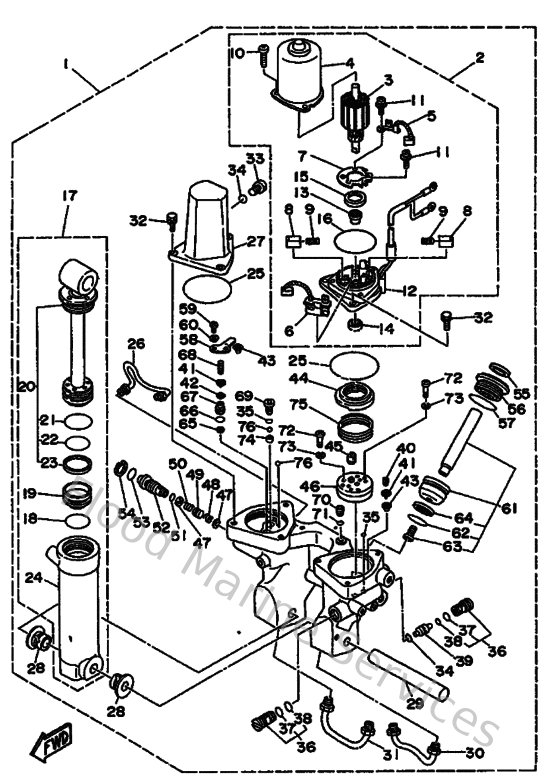

Diagram: Optionnelles 1
Parts List
Reference
Description
Price
1
62F43800004D
Power trim & tilt assembly
Loading…
↗
2
6H1438800200
Motor assembly
Loading…
↗
3
6H1438051000
Armature assembly
Loading…
↗
4
6H1438041000
Stator assembly
Loading…
↗
5
6H1438911000
Brush
Loading…
↗
6
6H1438921000
Breaker comp. (brush 2)
Loading…
↗
7
6H14380F1000
Plate, brush holder
Loading…
↗
8
6H14380J1000
Holder, brush
Loading…
↗
9
6H14386K1000
Spring, brush
Loading…
↗
10
978850501600
Screw, pan head(6b0)
Loading…
↗
11
985070401000
Screw, pan head(6g8)
Loading…
↗
12
6H1438811000
Frame, end
Loading…
↗
13
6H14380H1000
Metal
Loading…
↗
14
9310208M4300
Oil seal(6b0)
Loading…
↗
15
6H14380G1000
Plate
Loading…
↗
16
6H1438651000
O-ring
Loading…
↗
17
6H1438401100
Power tilt assembly
Loading…
↗
18
6H1438611000
O-ring
Loading…
↗
19
6H1438141100
Piston, free
Loading…
↗
20
6H1438101200
Tilt piston sub assembly
Loading…
↗
21
6H1438610000
O-ring
Loading…
↗
23
6H1438711000
Ring, back up
Loading…
↗
24
6H1438131000
Cylinder, tilt
Loading…
↗
25
932106575200
O-ring(2hj)
Loading…
↗
26
6H1438351000
Pipe
Loading…
↗
27
6H1438281000
Body, reservoir
Loading…
↗
28
9038618M1400
Bushing (6e5)
Loading…
↗
29
6E5438180000
Pin, lower shock mount
Loading…
↗
30
6H1438331000
Pipe
Loading…
↗
31
6H1438340000
Pipe
Loading…
↗
32
975950642000
Bolt(7u8)
Loading…
↗
33
6H1438290000
Plug, reservoir
Loading…
↗
34
932100935000
O-ring
Loading…
↗
35
932100651900
O-ring(6h0)
Loading…
↗
36
6T4438020100
Valve sub assembly
Loading…
↗
37
6H1438660000
O-ring
Loading…
↗
38
9321012N5200
O-ring
Loading…
↗
39
6H1438411000
Piston, shuttle
Loading…
↗
40
6H1438561000
Spring, down relief
Loading…
↗
41
6H1438441000
Pin, valve support
Loading…
↗
42
6H14384G1100
Seal, relief valve
Loading…
↗
43
6H14384F1000
Seal, main valve
Loading…
↗
44
6H1438170100
Filter 2
Loading…
↗
45
6H1438311000
Connector, shaft
Loading…
↗
46
6H1438301100
Gear pump assembly
Loading…
↗
47
6H1438990000
Spring, manual release
Loading…
↗
49
6H14382A1000
Adaptor 1
Loading…
↗
50
6H1438540000
Spring, manual release
Loading…
↗
51
9321010M7400
O-ring
Loading…
↗
52
6H1438450100
Screw, manual release
Loading…
↗
53
9321018M7500
O-ring (6e5)
Loading…
↗
54
6H1438750000
Ring, snap
Loading…
↗
55
6H1438221000
Seal, trim dust
Loading…
↗
56
6H1438211100
Screw, trim cylinder end
Loading…
↗
58
6H14384E2000
Spring, trim
Loading…
↗
59
978850501000
Screw, pan head(62x)
Loading…
↗
60
929900520000
Ybs66-5 washer, plain
Loading…
↗
61
6H1438201100
Piston sub assembly
Loading…
↗
62
6H1438640000
O-ring
Loading…
↗
63
913170801600
Bolt, socket
Loading…
↗
64
6H1438740000
Ring, back up
Loading…
↗
65
6H1438160000
Filter 1
Loading…
↗
66
6H1438960000
O-ring (2h7)
Loading…
↗
67
6H1438951200
Seat, relief valve
Loading…
↗
68
62F438550000
Spring, up relief
Loading…
↗
69
6H1438431100
Screw, valve lock
Loading…
↗
70
6H14388E1100
Plug, tapper screw
Loading…
↗
71
6H1438680000
O-ring
Loading…
↗
72
985170402500
Screw, pan head
Loading…
↗
73
929010410000
Ybs67-4 washer, spring
Loading…
↗
74
6H14387J0000
Washer, special 2
Loading…
↗
75
6H14385H0000
Spring, seal
Loading…
↗
1
6H143111004D
Bracket, clamp 1
Loading…
↗
2
6H1452510200
Anode
Loading…
↗
3
6H1445260000
Plate 2
Loading…
↗
4
9020106M3100
Washer (6a0)
Loading…
↗
5
970800601200
Bolt(gh1)
Loading…
↗
6
973950601600
Bolt, hexagon deep recess
Loading…
↗
7
929950610000
Washer(6a1)
Loading…
↗
8
929900660000
Washer, plain (646)
Loading…
↗
9
6H1821480000
Wire, lead
Loading…
↗
10
970850601000
Bolt
Loading…
↗
12
6H143112004D
Bracket, clamp 2
Loading…
↗
13
6E5821480000
Wire, lead 5
Loading…
↗
14
985800601200
Screw, pan head(62j)
Loading…
↗
15
970951004500
Bolt(64d)
Loading…
↗
16
929901010000
Ybs67-10 washer, spring
Loading…
↗
17
6H143311014D
Bracket, swivel 1
Loading…
↗
18
9370006M0300
Nipple, grease(6a1)
Loading…
↗
19
663451190000
Cap, grease nipple
Loading…
↗
20
688431310300
Bolt, clamp bracket
Loading…
↗
21
9038622M1500
Bushing (688)
Loading…
↗
22
9020122M6700
Washer, plate (688)
Loading…
↗
23
9018522M1100
Nut, self-locking
Loading…
↗
24
6G5431450000
Cap, clamp bracket
Loading…
↗
25
6H1431810100
Lever, tilt stop 1
Loading…
↗
26
6H1431850100
Lever, tilt stop 2
Loading…
↗
27
9038610M1600
Bushing (688)
Loading…
↗
28
6G5431480000
Collar, distance
Loading…
↗
29
916903002000
Pin, spring (6h4)
Loading…
↗
30
9024906M1900
Pin(6e5)
Loading…
↗
31
9038710M0200
Collar(6e5)
Loading…
↗
32
9050614M2400
Spring, tension(6e5)
Loading…
↗
33
6G5431440000
Hook, spring
Loading…
↗
34
970950601000
Bolt
Loading…
↗
35
688431600100
Tilt rod ass'y
Loading…
↗
36
688431650000
Stopper, tilt rod
Loading…
↗
37
916903001200
Pin, spring
Loading…
↗
38
9050216M0200
Spring, conical (688)
Loading…
↗
39
6E5431260100
Pin, upper shock mount
Loading…
↗
40
9038618M3500
Bush (688)
Loading…
↗
41
9341018M0500
Circlip (6f2)
Loading…
↗
42
9038618M6300
Bush(6e5)
Loading…
↗
43
9044014M0000
Pipe(6h4)
Loading…
↗
44
9010112M5100
Bolt
Loading…
↗
45
929951220000
Ybs66-12 washer,plain
Loading…
↗
46
902011242600
Washe, plate(663)
Loading…
↗
47
953801260000
Nut (707)
Loading…
↗
