Yamaha Outboard Parts - Optionnelles 1 - 55BM (1996) | Flood Marine

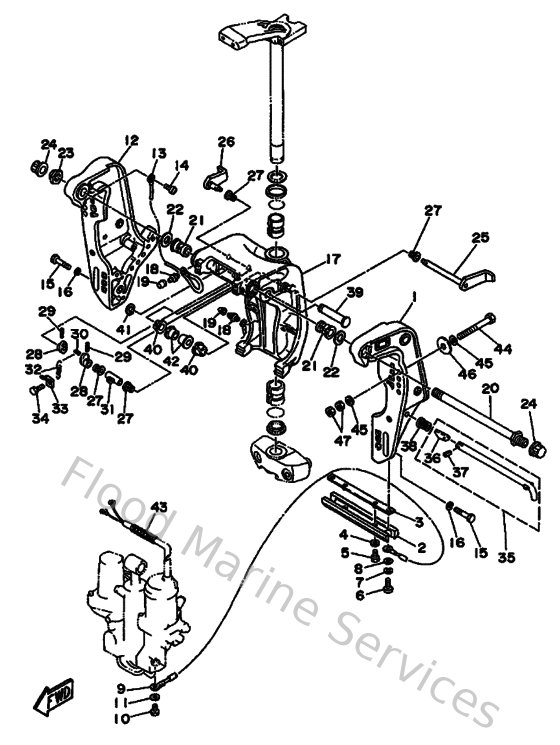

Diagram: Optionnelles 1

Diagram

Parts List

Reference
Description
Price


1
6H143111014D
Bracket, clamp 1
Loading…

↗
2
6H1452510200
Anode
Loading…

↗
3
6H1445260000
Plate 2
Loading…

↗
4
9020106M3100
Washer (6a0)
Loading…

↗
5
970800601200
Bolt(gh1)
Loading…

↗
6
970950601600
Bolt, hexagon deep recess
Loading…

↗
7
929950610000
Washer(6a1)
Loading…

↗
8
929900660000
Washer, plain (646)
Loading…

↗
9
6H1821480000
Wire, lead
Loading…

↗
10
970850601000
Bolt
Loading…

↗
12
6H143112004D
Bracket, clamp 2
Loading…

↗
13
6E5821480000
Wire, lead 5
Loading…

↗
14
985800601200
Screw, pan head(62j)
Loading…

↗
15
970751004500
Bolt(64d)
Loading…

↗
16
929901010000
Ybs67-10 washer, spring
Loading…

↗
18
9370006M0300
Nipple, grease(6a1)
Loading…

↗
19
663451190000
Cap, grease nipple
Loading…

↗
20
688431310300
Bolt, clamp bracket
Loading…

↗
21
9038622M1500
Bushing (688)
Loading…

↗
22
9020122M6700
Washer, plate (688)
Loading…

↗
23
901852200700
Nut, self-locking
Loading…

↗
24
6G5431450000
Cap, clamp bracket
Loading…

↗
25
6H1431810100
Lever, tilt stop 1
Loading…

↗
26
6H1431850100
Lever, tilt stop 2
Loading…

↗
27
9038610M1600
Bushing (688)
Loading…

↗
28
6G5431480000
Collar, distance
Loading…

↗
29
916903002000
Pin, spring (6h4)
Loading…

↗
30
9024906M1900
Pin(6e5)
Loading…

↗
31
9038710M0200
Collar(6e5)
Loading…

↗
32
9050614M2400
Spring, tension(6e5)
Loading…

↗
33
6G5431440000
Hook, spring
Loading…

↗
34
970950601000
Bolt
Loading…

↗
35
688431600100
Tilt rod ass'y
Loading…

↗
36
688431650000
Stopper, tilt rod
Loading…

↗
37
916903001200
Pin, spring
Loading…

↗
38
9050216M0200
Spring, conical (688)
Loading…

↗
39
6E5431260200
Pin, upper shock mount
Loading…

↗
40
9341018M0200
Circlip (6f2)
Loading…

↗
41
9341018M0500
Circlip (6f2)
Loading…

↗
42
9038618M6300
Bush(6e5)
Loading…

↗
43
9044014M0000
Pipe(6h4)
Loading…

↗
44
9010112M5100
Bolt
Loading…

↗
45
929901220000
Ybs66-12 washer,plain
Loading…

↗
46
902011242600
Washe, plate(663)
Loading…

↗
47
953801260000
Nut (707)
Loading…

↗
