6DEM (1996)
Optionnelles 1

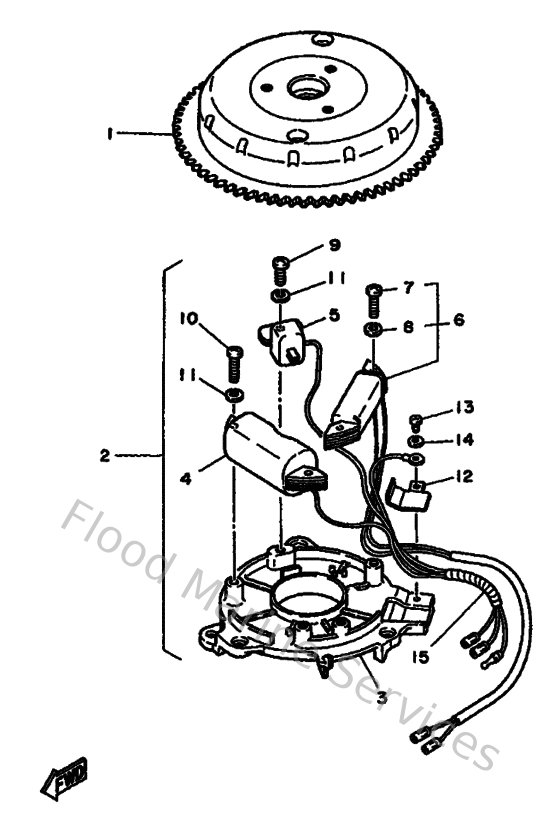

Diagram: Optionnelles 1
Parts List
Reference
Description
Price
1
6G185550A000
Rotor assembly
Loading…
↗
2
6G185560F000
Base ass'y
Loading…
↗
3
6G1855097000
Base, magneto
Loading…
↗
4
6E7855207000
Coil assembly
Loading…
↗
5
6E7855807000
Pulser coil ass'y
Loading…
↗
6
6E781303A000
Lighting coil ass'y
Loading…
↗
7
985800552500
Screw, panhead (a93)
Loading…
↗
8
929900510000
Ybs67-5 washer, spring
Loading…
↗
9
978850501600
Screw, pan head(6b0)
Loading…
↗
10
985110502000
Screw, pan head
Loading…
↗
12
6G1855487000
Cord, clamp
Loading…
↗
13
985800400800
Screw, pan head (713)
Loading…
↗
14
929900410000
Ybs67-4 washer, spring
Loading…
↗
15
6G1855157000
Wire, lead
Loading…
↗
