Yamaha Outboard Parts - Optionnelles 2 - 130BETOL (1996) | Flood Marine

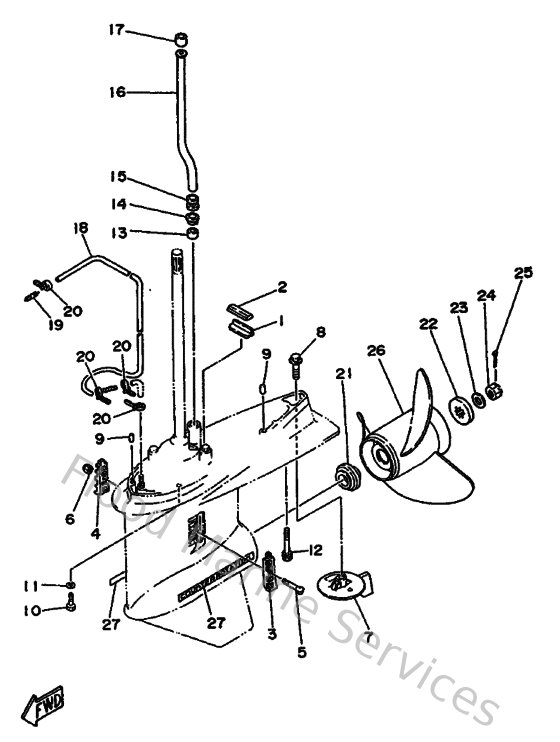

Diagram: Optionnelles 2

Diagram

Parts List

Reference
Description
Price


1
663453760094
Guide, seal damper
Loading…

↗
2
688453750000
Damper, seal 2
Loading…

↗
3
688452140200
Cover, water inlet
Loading…

↗
4
688452150200
Cover, water inlet
Loading…

↗
7
6L6453710000
Tab-trim
Loading…

↗
13
6E5443650000
Damper, water seal 1
Loading…

↗
14
6E5443120000
Cover, water pump housing
Loading…

↗
15
6E5443660000
Damper, water seal 2
Loading…

↗
16
6E5443612000
Tube, water
Loading…

↗
19
6E5835580000
End, nipple
Loading…

↗
21
6E5459870100
Spacer 1
Loading…

↗
22
688459970100
Spacer 2
Loading…

↗
26
6L6459720098
Propeller (ss 3x13"x21"-kl)
Loading…

↗
