Yamaha Outboard Parts - Optionnelles 2 - 225CETOL (1994) | Flood Marine

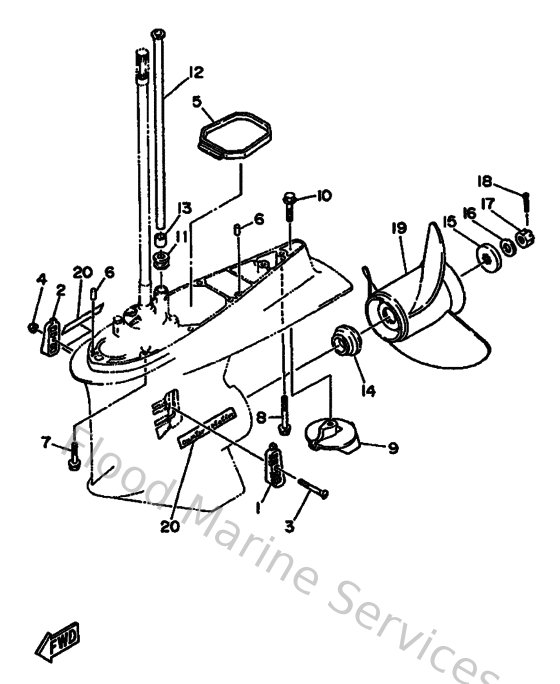

Diagram: Optionnelles 2

Diagram

Parts List

Reference
Description
Price


1
61A452140000
Cover, water inlet
Loading…

↗
2
61A452150000
Cover, water inlet
Loading…

↗
3
9014205M0400
Screw, countersunk
Loading…

↗
4
901850590400
Nut nylon (sus)(ex4)
Loading…

↗
5
61A453750000
Damper, seal
Loading…

↗
6
9360812M0500
Pin, dowel b (6e5)
Loading…

↗
7
970751004500
Bolt(64d)
Loading…

↗
8
9011910MA200
Bolt, with washer
Loading…

↗
9
61A453710000
Anode
Loading…

↗
10
9010510M0000
Bolt, hexagon (663)
Loading…

↗
11
6E5443660000
Damper, water seal 2
Loading…

↗
12
61A443612000
Tube, water
Loading…

↗
13
6E5443650000
Damper, water seal 1
Loading…

↗
14
63P459870000
Spacer 1
Loading…

↗
15
688459970100
Spacer 2
Loading…

↗
16
929901820000
Washer (6e5)
Loading…

↗
17
9017118M0400
Nut, castle (6e5)
Loading…

↗
18
914904003000
Pin, cotter (663)
Loading…

↗
19
6K1459700198
Propeller (3x15-1/4"x15"-ml)
Loading…

↗
