25JETO (1994)
Optionnelles 2

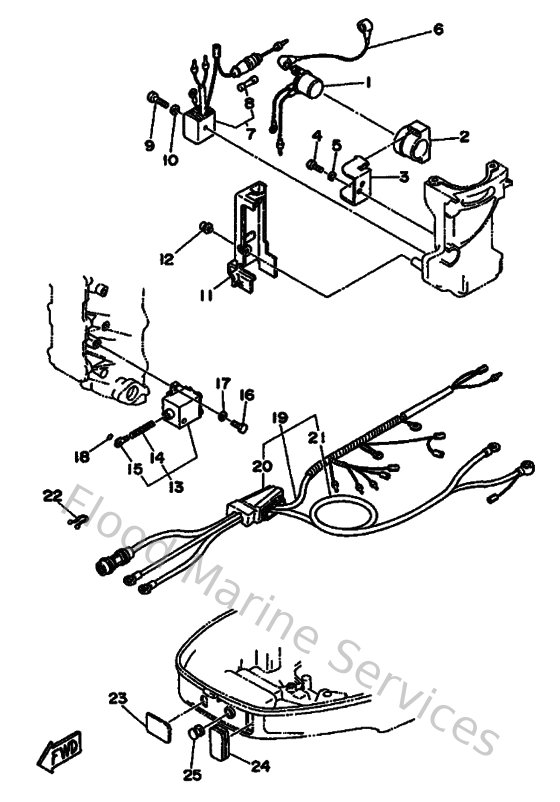

Diagram: Optionnelles 2
Parts List
Reference
Description
Price
1
6G1819411000
Starter relay
Loading…
↗
2
6G1819520000
Holder, relay
Loading…
↗
3
6J8819450000
Plate, switch fitting
Loading…
↗
4
970950601600
Bolt, hexagon deep recess
Loading…
↗
5
929900660000
Washer, plain (646)
Loading…
↗
6
6F5821170000
Wire, lead
Loading…
↗
7
6G1819706200
Rectifier assembly
Loading…
↗
8
6G1821510000
Fuse (10a)
Loading…
↗
9
985800552500
Screw, panhead (a93)
Loading…
↗
10
929900560000
Washer, plain (646)
Loading…
↗
11
6J8819160000
Cover, Terminal
Loading…
↗
12
979850521000
Screw, With Washer
Loading…
↗
13
6J8861100000
Solenoid
Loading…
↗
14
6J8861160000
Wire, pull
Loading…
↗
15
682861170000
Hook, wire pull
Loading…
↗
18
932100326100
O-ring (663)
Loading…
↗
19
6J8825800000
Wire harness assembly 2
Loading…
↗
20
6J8427245000
Grommet
Loading…
↗
21
689821051200
Battery cable
Loading…
↗
22
9046405M1600
Clamp(6j8)
Loading…
↗
23
6J8427262000
Grommet
Loading…
↗
24
6J8427261000
Grommet
Loading…
↗
25
6H4427250000
Grommet 2
Loading…
↗
