Yamaha Outboard Parts - Optionnelles 3 - 15DEH (1994) | Flood Marine

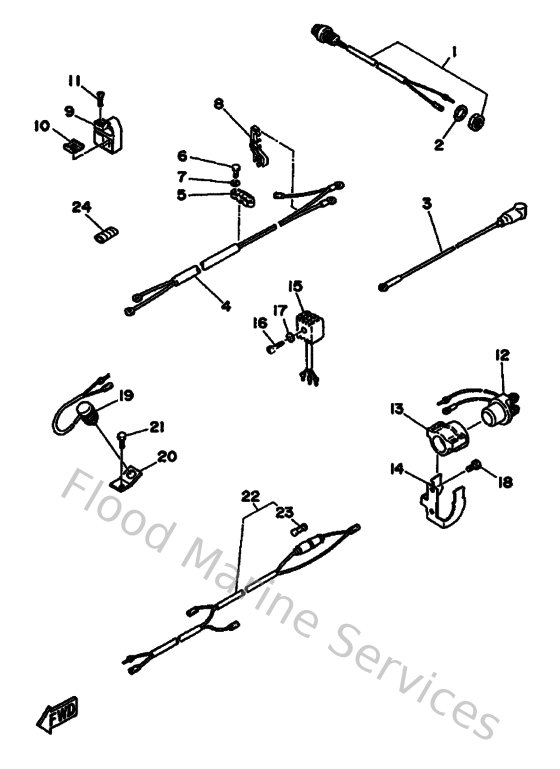

Diagram: Optionnelles 3

Diagram

Parts List

Reference
Description
Price


1
689818700000
Starting switch assembly
Loading…

↗
2
9020116M3600
Washer, plate(6e7)
Loading…

↗
3
6E7821170000
Wire, lead
Loading…

↗
4
6E7821051000
Battery cable
Loading…

↗
5
9046408M0300
Clamp
Loading…

↗
6
970950601600
Bolt, hexagon deep recess
Loading…

↗
7
929900660000
Washer, plain (646)
Loading…

↗
8
682825940100
Clamp
Loading…

↗
9
689825940000
Clamp
Loading…

↗
10
682425250000
Plate, friction 1
Loading…

↗
11
9016106M0000
Screw, tapping(6e7)
Loading…

↗
12
6G1819411000
Starter relay
Loading…

↗
13
6G1819520000
Holder, relay
Loading…

↗
14
6E7819450000
Plate, Switch Fitting
Loading…

↗
15
664819706100
Rectifier assembly
Loading…

↗
16
985800552500
Screw, panhead (a93)
Loading…

↗
17
929900560000
Washer, plain (646)
Loading…

↗
18
970950601400
Bolt(gj3)
Loading…

↗
19
689825400100
Neutral switch ass'y
Loading…

↗
21
970130601200
Bolt(gh1)
Loading…

↗
23
682821510000
Fuse
Loading…

↗
24
9044610M0200
Tube (6e5)
Loading…

↗
