Yamaha Outboard Parts - PISTON - ME730TIM (2006) | Flood Marine

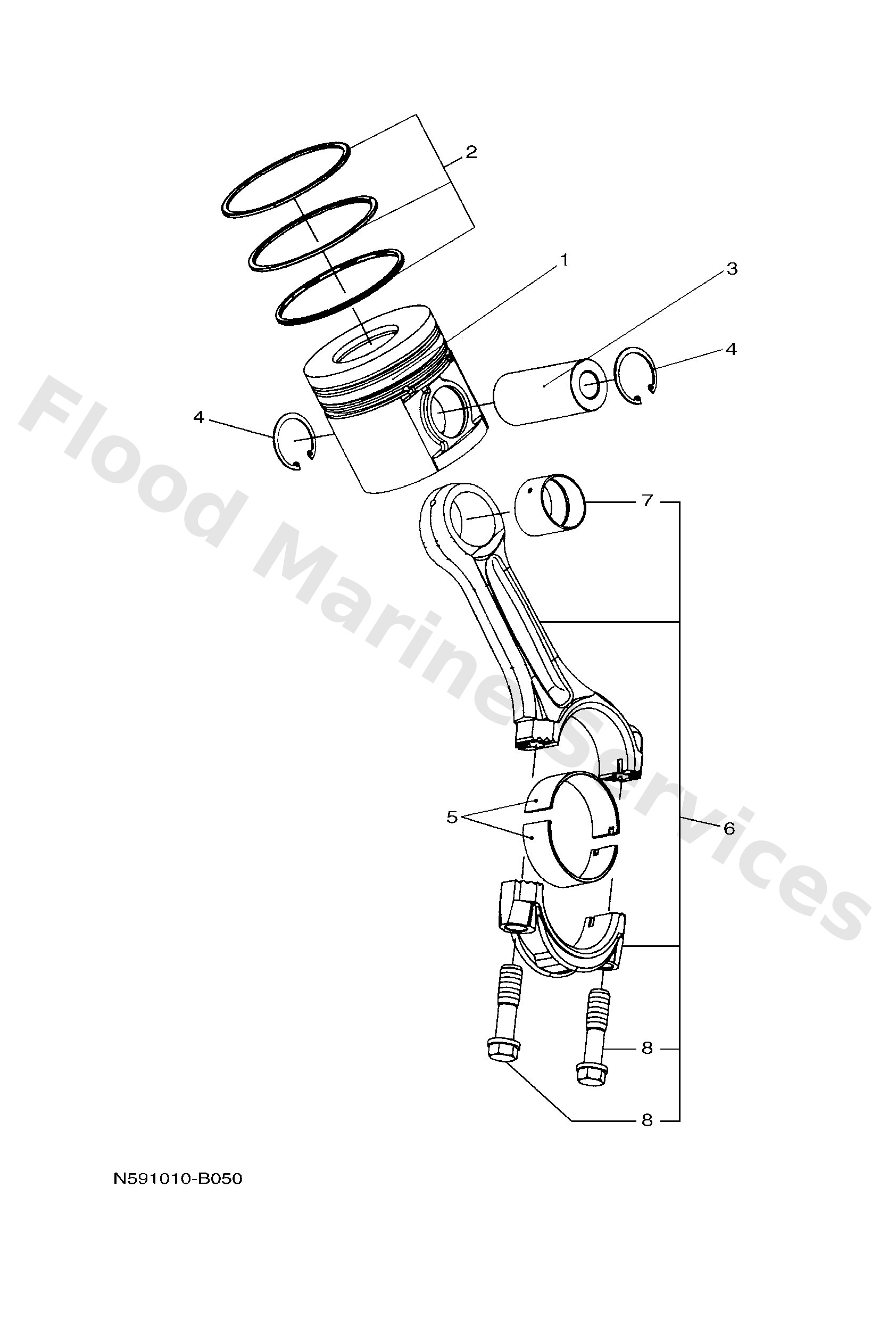

Diagram: PISTON

Diagram

Parts List

Reference
Description
Price


1
N591163100
Piston (a)
Loading…

↗
2
N5911610Y0
Piston ring set
Loading…

↗
3
N5911633Y0
Pin, piston
Loading…

↗
4
N5915744Y0
5- 4
Loading…

↗
5
N5911656Y0
Brg., Conn. Rod
Loading…

↗
6
N591165000
Connecting rod assembly
Loading…

↗
7
N5911653Y0
Bush, Connecting Rod
Loading…

↗
8
N5911654Y0
Bolt, connecting rod
Loading…

↗
