FT9.9DEP (2002)
POWER TILT ASSY

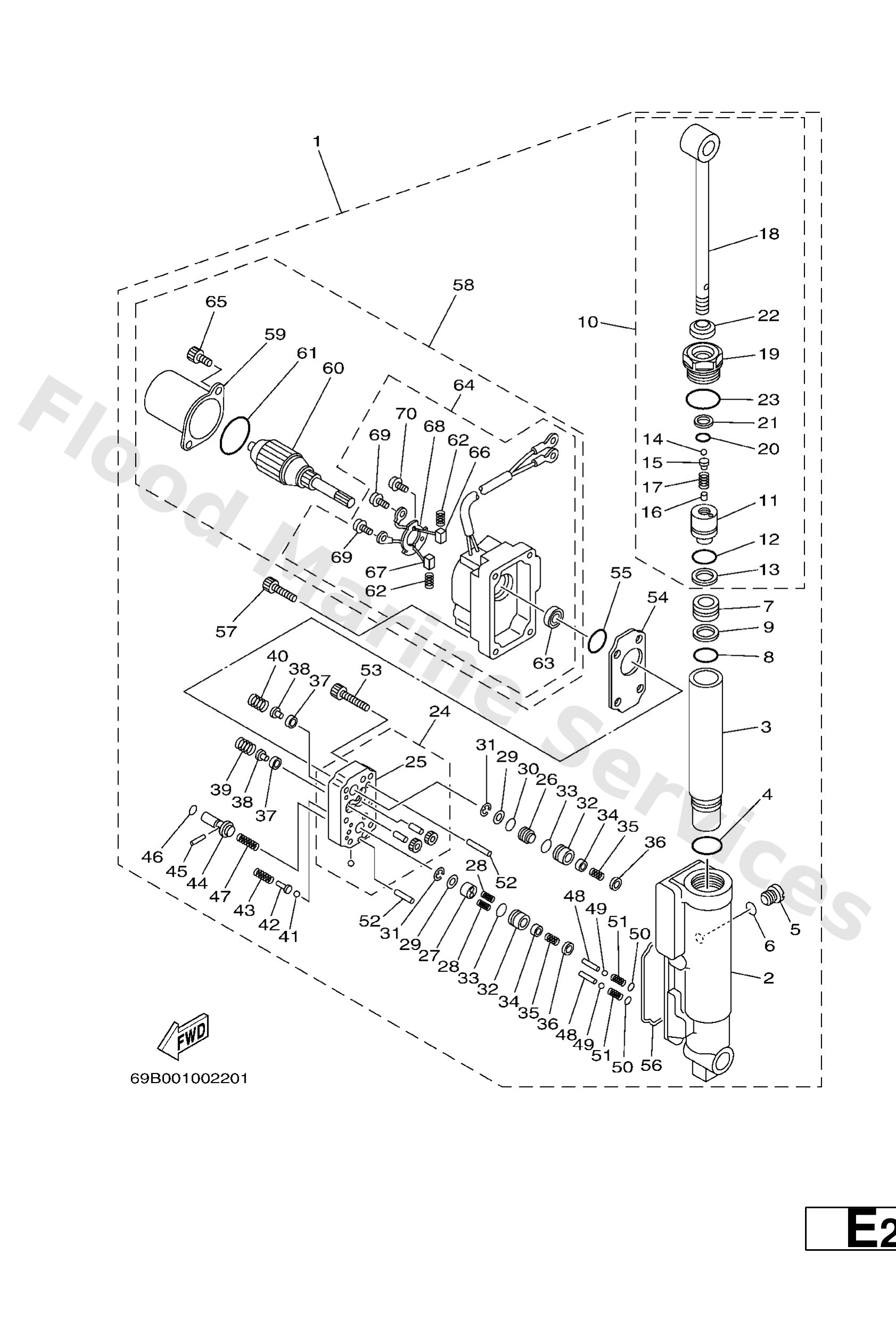

Diagram: POWER TILT ASSY
Parts List
Reference
Description
Price
1
69A−43840−00−4D
Power tilt assembly
Loading…
↗
2
69A−4380K−00
Cylinder, tilt sub assembly
Loading…
↗
3
69A−22471−00
Case, cylinder
Loading…
↗
4
93210−27666
O-ring(47x)
Loading…
↗
5
6H1−4388E−11
Plug, tapper screw
Loading…
↗
6
93210−07003
O-ring (11m)
Loading…
↗
7
69A−43814−00
Piston, free
Loading…
↗
8
93210−21276
O-ring
Loading…
↗
9
69A−43872−00
Ring, back up
Loading…
↗
10
69A−43810−00
Piston sub assembly
Loading…
↗
11
69A−4380D−00
Piston comp.
Loading…
↗
14
93505−32038
Ball(7fk)
Loading…
↗
15
65W−4386A−00
Pin, absorber valve
Loading…
↗
16
93604−06136
Pin, dowel
Loading…
↗
17
69A−43857−00
Spring, absorber valve
Loading…
↗
18
69A−43801−00
Rod
Loading…
↗
19
69A−43811−00
Screw, cylinder end
Loading…
↗
20
6H1−43866−00
O-ring
Loading…
↗
21
69A−43871−00
Ring, back up
Loading…
↗
22
69A−43812−00
Seal, dust
Loading…
↗
23
69A−43869−00
O-ring
Loading…
↗
24
69A−43830−00
Gear pump assembly
Loading…
↗
25
69A−4380C−00
Gear housing assembly
Loading…
↗
26
69A−43841−00
Piston, shuttle
Loading…
↗
27
69A−4384M−00
Piston, shuttle 2
Loading…
↗
28
62Y−43894−00
Spring, shuttle return
Loading…
↗
29
69A−4384F−00
Seal, main valve
Loading…
↗
30
6H1−43883−00
O-ring
Loading…
↗
31
99001−03600
Circlip(6l5)
Loading…
↗
32
69A−4382G−00
Valve Seat
Loading…
↗
33
93210−12N52
O-ring
Loading…
↗
34
6T4−43808−00
Seat valve comp. 1
Loading…
↗
35
6T4−43853−00
Spring, main valve
Loading…
↗
36
6H1−43816−00
Filter 1
Loading…
↗
37
6H1−4384G−11
Seal, relief valve
Loading…
↗
38
6H1−43844−10
Pin, valve support
Loading…
↗
39
69A−43855−00
Spring, up relief
Loading…
↗
40
6H1−43856−10
Spring, down relief
Loading…
↗
41
93501−08001
Ball
Loading…
↗
42
69A−4386A−00
Pin, absorber valve
Loading…
↗
43
69A−43824−00
Spring, down relief 2
Loading…
↗
44
69A−43848−00
Rod, manual release
Loading…
↗
45
93602−15250
Pin, dowel
Loading…
↗
46
93210−06001
O-ring (26h)
Loading…
↗
47
69A−43854−00
Spring, manual release
Loading…
↗
48
69A−4381G−00
Pin 1
Loading…
↗
51
69A−4384H−00
Spring
Loading…
↗
52
93606−14081
Pin,dowel(296)
Loading…
↗
53
91317−05025
Bolt, socket
Loading…
↗
54
69A−43816−00
Filter 1
Loading…
↗
55
N35−43862−10
O-ring
Loading…
↗
56
69A−23129−00
Gasket, drain plug
Loading…
↗
57
69A−43878−00
Bolt, socket
Loading…
↗
58
69A−43880−00
Motor assembly
Loading…
↗
59
65W−43804−00
Stator assembly
Loading…
↗
60
65W−43805−00
Armature assembly
Loading…
↗
61
65W−43869−00
O-ring
Loading…
↗
62
65W−4386K−00
Spring, brush
Loading…
↗
63
65W−43882−00
Oil seal
Loading…
↗
64
69A−43881−00
Frame, End
Loading…
↗
65
65W−43887−00
Bolt, screw
Loading…
↗
66
65W−43892−00
Brush 2
Loading…
↗
67
65W−43891−00
Brush 1
Loading…
↗
68
65W−4380F−00
Plate, brush holder
Loading…
↗
69
65W−43879−00
Screw, with washer
Loading…
↗
70
65W−4388E−00
Bolt
Loading…
↗
