FT9.9LMH (2017)
POWER TILT ASSY

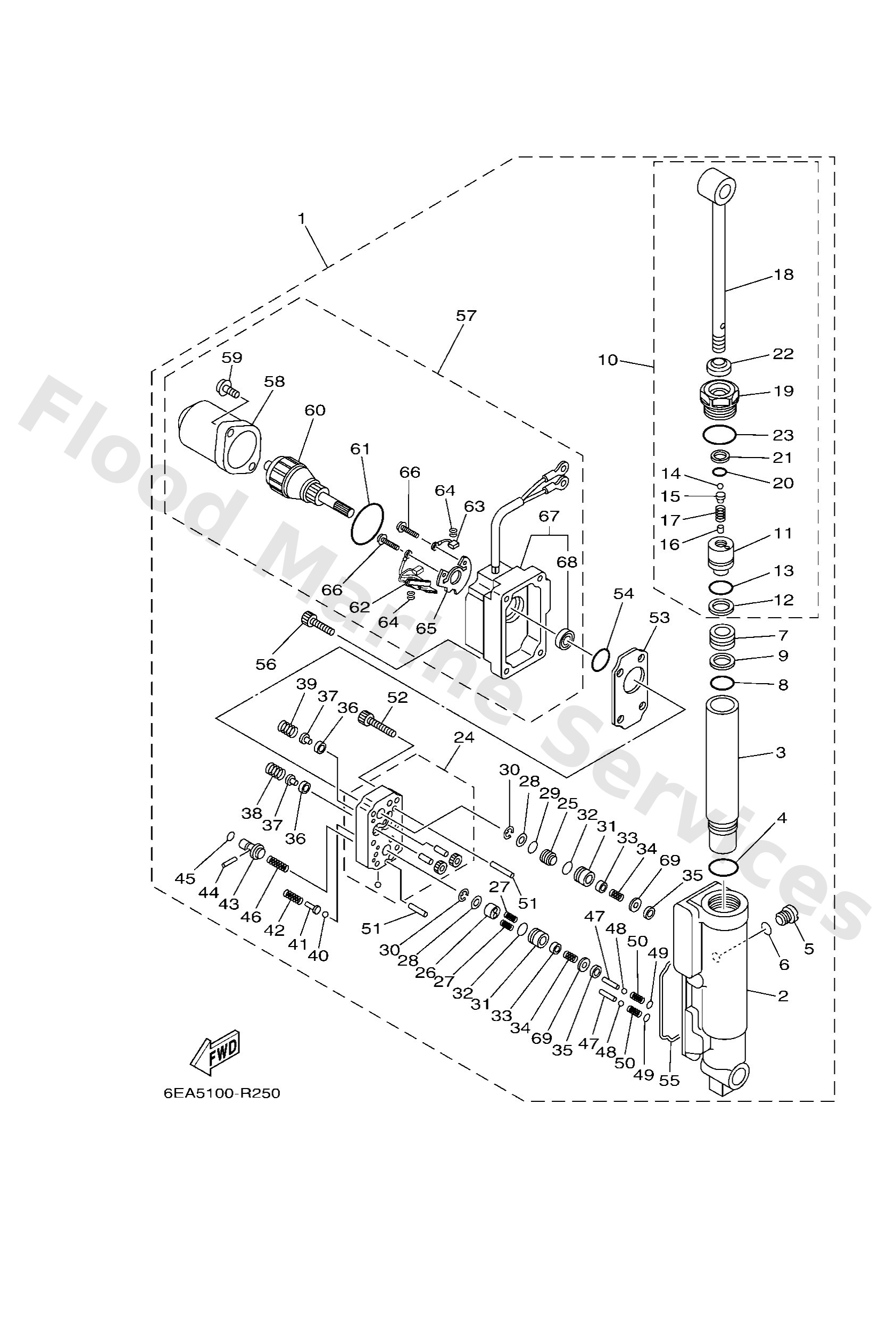

Diagram: POWER TILT ASSY
Parts List
Reference
Description
Price
1
69G43840038D
Power tilt assembly
Loading…
↗
2
69A4380K00
Cylinder, tilt sub assembly
Loading…
↗
3
69A2247100
Case, cylinder
Loading…
↗
4
9321027666
O-ring(47x)
Loading…
↗
5
6H14388E11
Plug, tapper screw
Loading…
↗
6
9321007003
O-ring (11m)
Loading…
↗
7
69A4381400
Piston, free
Loading…
↗
8
9321021276
O-ring
Loading…
↗
9
69A4387200
Ring, back up
Loading…
↗
10
69A4381000
Piston sub assembly
Loading…
↗
11
69A4380D00
Piston comp.
Loading…
↗
14
9350532038
Ball(7fk)
Loading…
↗
15
65W4386A00
Pin, absorber valve
Loading…
↗
16
9360406136
Pin, dowel
Loading…
↗
17
69A4385700
Spring, absorber valve
Loading…
↗
18
69A4380100
Rod
Loading…
↗
19
69A4381101
Screw, cylinder end
Loading…
↗
20
6H14386601
O-ring
Loading…
↗
21
69A4387100
Ring, back up
Loading…
↗
22
69A4381200
Seal, dust
Loading…
↗
23
69A4386900
O-ring
Loading…
↗
24
69A4383000
Gear pump assembly
Loading…
↗
25
69A4384100
Piston, shuttle
Loading…
↗
26
69A4384M00
Piston, shuttle 2
Loading…
↗
27
62Y4389400
Spring, shuttle return
Loading…
↗
28
69A4384F00
Seal, main valve
Loading…
↗
29
6H14388300
O-ring
Loading…
↗
30
9900203600
Circlip(6l5)
Loading…
↗
31
69G4382G00
Valve seat
Loading…
↗
32
9321012N52
O-ring
Loading…
↗
33
6T44380800
Seat valve comp. 1
Loading…
↗
34
69G4385300
Spring, main valve
Loading…
↗
35
69J4381C00
Filter 3
Loading…
↗
36
6H14384G11
Seal, relief valve
Loading…
↗
37
6H14384410
Pin, valve support
Loading…
↗
38
69A4385500
Spring, up relief
Loading…
↗
39
6H14385610
Spring, down relief
Loading…
↗
40
9350108001
Ball
Loading…
↗
41
69A4386A00
Pin, absorber valve
Loading…
↗
42
69A4382400
Spring, down relief 2
Loading…
↗
43
69A4384810
Rod, manual release
Loading…
↗
44
9360215250
Pin, dowel
Loading…
↗
45
9321006001
O-ring (26h)
Loading…
↗
46
69A4385400
Spring, manual release
Loading…
↗
47
69A4381G00
Pin 1
Loading…
↗
50
69A4384H00
Spring
Loading…
↗
51
9360614081
Pin,dowel(296)
Loading…
↗
52
9131205025
Bolt
Loading…
↗
53
69A4381601
Filter 1
Loading…
↗
54
N354386210
O-ring
Loading…
↗
55
69A2312900
Gasket, drain plug
Loading…
↗
56
69A4387800
Bolt, socket
Loading…
↗
57
69G4388010
Motor assembly
Loading…
↗
58
6AH4380400
Stator assembly
Loading…
↗
59
67C4387910
Screw, with washer
Loading…
↗
60
67C4380510
Armature assembly
Loading…
↗
61
67C4386210
O-ring
Loading…
↗
62
67C8218110
Circuit breaker comp.
Loading…
↗
63
67C4389210
Brush 2
Loading…
↗
64
67C4386K10
Spring, brush
Loading…
↗
65
67C4380F10
Plate, brush holder
Loading…
↗
66
9760204316
Screw, pan head with washer
Loading…
↗
67
69G4388110
Frame, end
Loading…
↗
68
67C4388210
Oil seal
Loading…
↗
69
69G4388F00
Spacer
Loading…
↗
