INTHDP/HDL (2014)
POWER TILT BODY ASSY 1 (PREVIOUS MODEL)

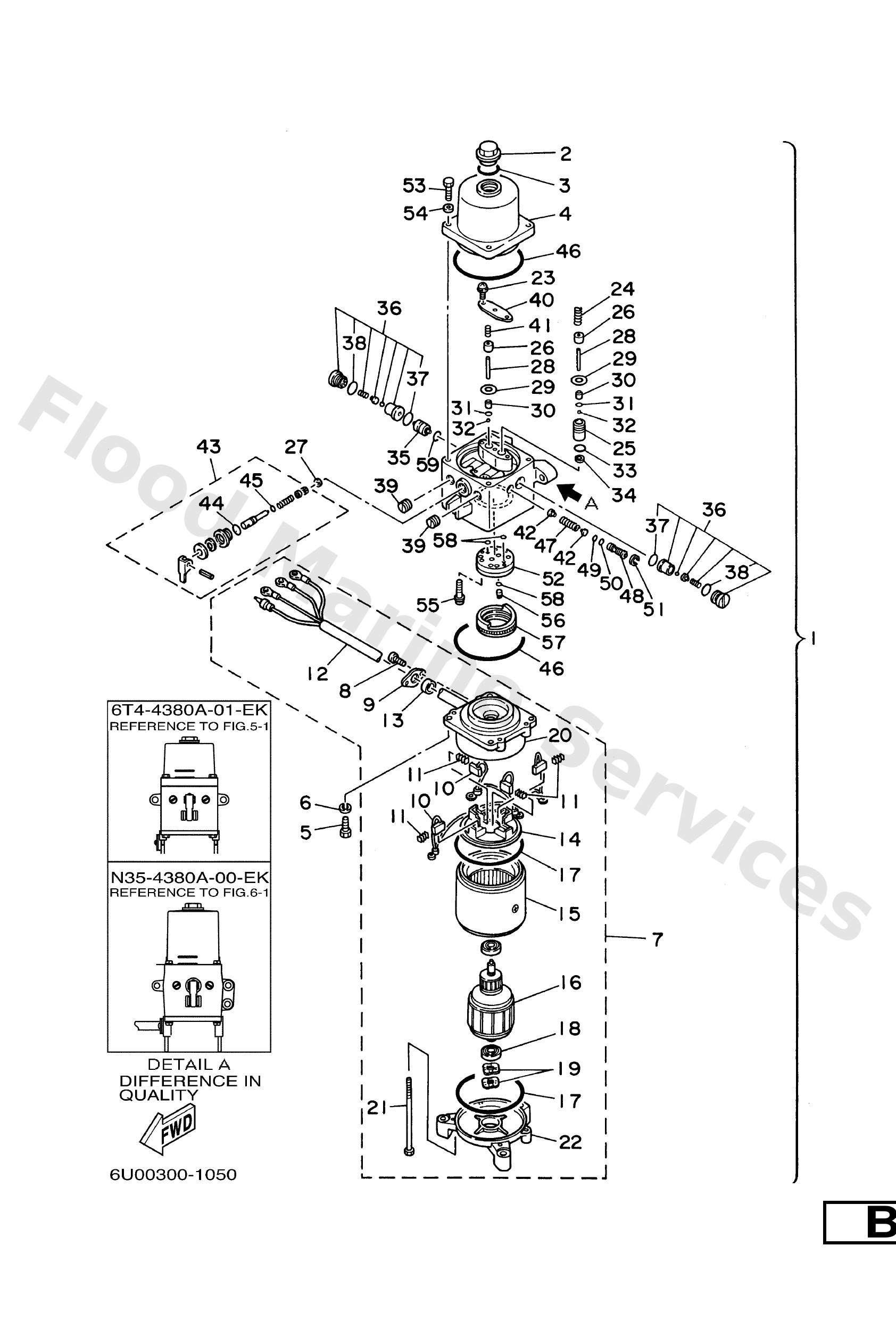

Diagram: POWER TILT BODY ASSY 1 (PREVIOUS MODEL)
Parts List
Reference
Description
Price
2
6T44382900
Plug, reservoir
Loading…
↗
3
9321021276
O-ring
Loading…
↗
4
6T44382800
Body, reservoir
Loading…
↗
5
9739506020
Bolt(7u8)
Loading…
↗
6
9299506100
Washer(6a1)
Loading…
↗
7
6T44388001
12V
Motor assembly
Loading…
↗
8
9858005008
Screw, pan head (7g3)
Loading…
↗
9
6T44386J00
Washer, special
Loading…
↗
10
6T44389100
12V
Brush 1
Loading…
↗
11
6T44386K00
Spring, brush
Loading…
↗
12
6T44380700
12V
Wire Sub assembly
Loading…
↗
13
6T44388500
Grommet
Loading…
↗
14
6T44380600
Brush holder assembly
Loading…
↗
15
6T44380400
Stator assembly
Loading…
↗
16
6T44380501
Armature assembly
Loading…
↗
17
9321081782
O-ring(6t4)
Loading…
↗
18
9330060820
Bearing(6t4)
Loading…
↗
19
9020614086
Washer, wave(6t4)
Loading…
↗
20
6T44388100
Frame, end
Loading…
↗
21
6T44388700
Bolt, through
Loading…
↗
22
6T44388400
Frame, commutator end
Loading…
↗
23
9858005010
Screw, pan head(62x)
Loading…
↗
24
6T44385500
Spring, up relief
Loading…
↗
25
6T44389500
Seat, relief valve
Loading…
↗
26
6T44384400
Pin, valve support
Loading…
↗
27
6H14384G11
Seal, relief valve
Loading…
↗
28
9160910014
Pin, spring(61a)
Loading…
↗
29
6T44389300
Washer
Loading…
↗
30
6T44385100
Seat, relief valve
Loading…
↗
31
6T44384G00
Seal, relief valve
Loading…
↗
32
9350108001
Ball
Loading…
↗
33
9321010M74
O-ring
Loading…
↗
34
6H14381600
Filter 1
Loading…
↗
35
6T44384100
Piston, shuttle
Loading…
↗
36
6T44380203
Valve sub assembly
Loading…
↗
37
6H14386700
O-ring
Loading…
↗
38
6H14386600
O-ring
Loading…
↗
39
6T44388H00
Plug
Loading…
↗
40
6T44382K00
Cap, relief valve
Loading…
↗
41
6H14385610
Spring, down relief
Loading…
↗
42
61A4384F00
Seal, main valve
Loading…
↗
43
6T44386000
Manual valve sub-assembly
Loading…
↗
45
9321006519
O-ring(6h0)
Loading…
↗
46
6T44386900
O-ring
Loading…
↗
47
6T44385H00
Spring, seal
Loading…
↗
48
6T44384900
Pin, valve support
Loading…
↗
49
9321006632
O-ring (26h)
Loading…
↗
50
6H14386800
O-ring
Loading…
↗
51
6T44387600
Ring, snap
Loading…
↗
52
6T44383000
Gear pump assembly
Loading…
↗
53
9739506025
Bolt
Loading…
↗
54
9299006600
Washer, plain (646)
Loading…
↗
55
9760104230
5- 55
Loading…
↗
56
6H14383100
Connector, shaft
Loading…
↗
57
6H14381700
Filter 2
Loading…
↗
59
9321009350
O-ring
Loading…
↗
