250GETO (2010)
POWER TRIM & TILT ASSY

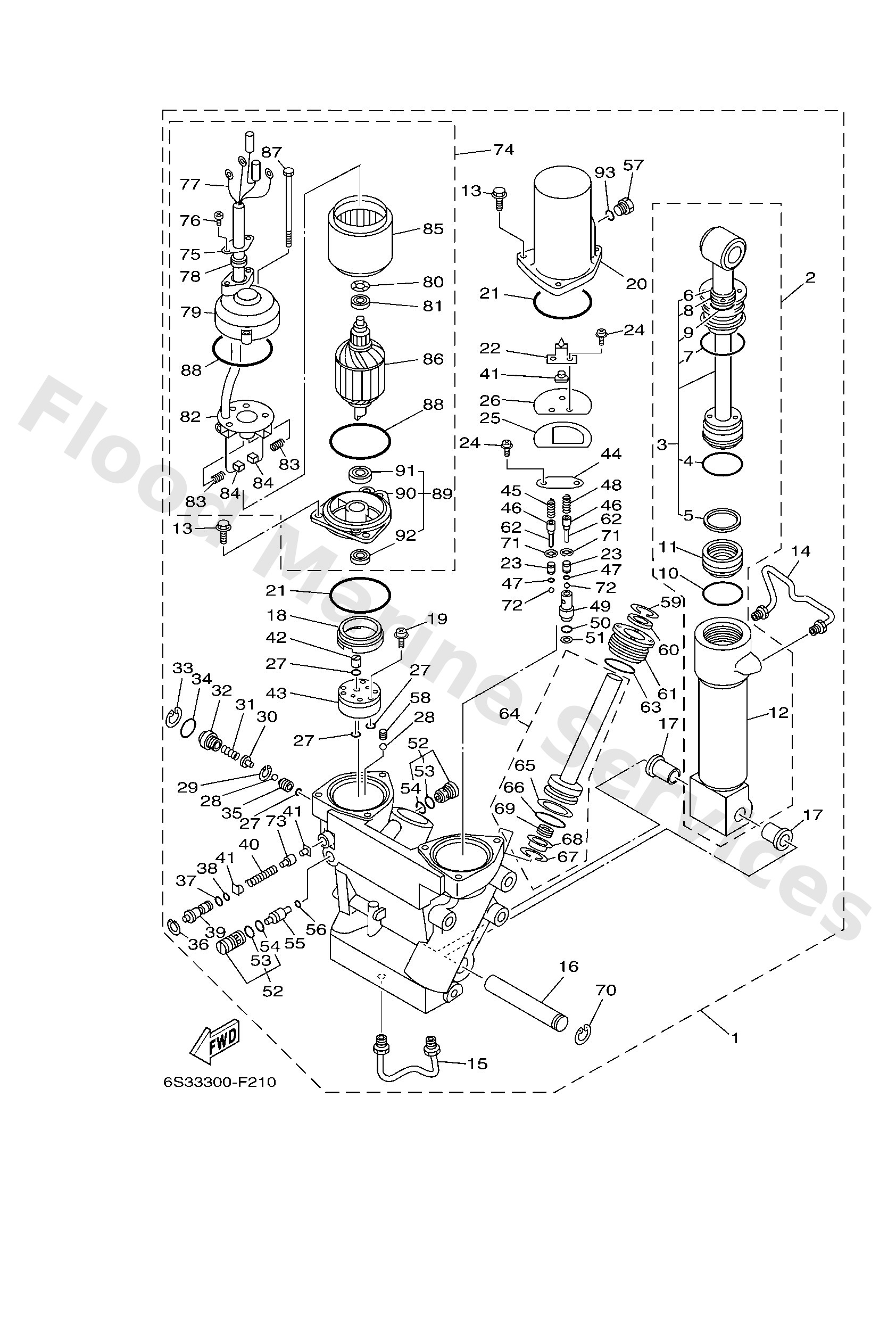

Diagram: POWER TRIM & TILT ASSY
Parts List
Reference
Description
Price
1
61A43800258D
Power Trim & Tilt assembly
Loading…
↗
2
61A4384001
Power tilt assembly
Loading…
↗
3
61A4381000
Tilt piston sub assembly
Loading…
↗
4
61A4386100
O-ring
Loading…
↗
5
61A4387100
Ring, back up
Loading…
↗
6
9310619N50
Oil seal
Loading…
↗
7
6H14386100
O-ring
Loading…
↗
8
6H14387200
Ring, back up
Loading…
↗
9
61A4389H00
O-ring
Loading…
↗
11
6H14381400
Piston, free
Loading…
↗
12
61A4381301
Cylinder, tilt
Loading…
↗
13
9759506420
Bolt(7u8)
Loading…
↗
14
61A4383501
Pipe
Loading…
↗
15
61A4383301
Pipe
Loading…
↗
16
61A4381800
Pin, lower shock mount
Loading…
↗
17
9038618M14
Bushing (6e5)
Loading…
↗
18
6H14381700
Filter 2
Loading…
↗
19
9760204230
Screw, pan head with washer
Loading…
↗
20
61A4382800
Body, reservoir
Loading…
↗
21
6H14386900
O-ring
Loading…
↗
22
61A4384L00
Spring, Trim Down
Loading…
↗
23
6T44385100
Seat, relief valve
Loading…
↗
24
9760205210
Screw, pan head with washer
Loading…
↗
25
61A4384K00
Plate, trim down
Loading…
↗
26
61A4384J00
Seal, trim down
Loading…
↗
27
93210064A5
O-ring(61a)
Loading…
↗
28
9350532038
Ball(7fk)
Loading…
↗
29
61A4387500
Ring, snap
Loading…
↗
30
61A4384800
Rod, manual release
Loading…
↗
31
61A4385400
Spring, manual release
Loading…
↗
32
61A4384500
Screw, manual release
Loading…
↗
33
6H14387500
Ring, snap
Loading…
↗
34
9321018397
O-ring (6g5)
Loading…
↗
35
61A4384700
Seat, manual valve
Loading…
↗
36
6T44387600
Ring, snap
Loading…
↗
37
9321007003
O-ring (11m)
Loading…
↗
38
9321006001
O-ring (26h)
Loading…
↗
39
6T44384900
Pin, valve support
Loading…
↗
40
61A4385H00
Spring, seal
Loading…
↗
41
6H14384F00
Seal, main valve
Loading…
↗
42
6H14383100
Connector, shaft
Loading…
↗
43
6T44383000
Gear pump assembly
Loading…
↗
44
61A4382K00
Cap, relief valve
Loading…
↗
45
6H14385610
Spring, down relief
Loading…
↗
46
6T44384400
Pin, valve support
Loading…
↗
47
6T44384G00
Seal, relief valve
Loading…
↗
48
6T44385500
Spring, up relief
Loading…
↗
49
6T44389500
Seat, relief valve
Loading…
↗
50
9321010M74
O-ring
Loading…
↗
51
6H14381600
Filter 1
Loading…
↗
52
6T44380203
Valve sub assembly
Loading…
↗
53
6H14386600
O-ring
Loading…
↗
54
6H14386700
O-ring
Loading…
↗
55
6T44384100
Piston, shuttle
Loading…
↗
56
9321009165
O-ring
Loading…
↗
57
6H14382900
Plug, reservoir
Loading…
↗
58
61A4387800
Bolt, socket
Loading…
↗
59
6T44387501
Ring, snap
Loading…
↗
60
61A4382200
Seal, trim dust
Loading…
↗
61
61A4382100
Screw, trim cylinder end
Loading…
↗
62
9160910014
Pin, spring(61a)
Loading…
↗
64
61A4382010
Trim piston sub assembly
Loading…
↗
65
61A4387400
Ring, back up
Loading…
↗
66
61A4386400
O-ring
Loading…
↗
67
61A4387510
Ring, snap
Loading…
↗
68
61A4383H11
Hose, oil 5
Loading…
↗
69
61A4384H10
Spring
Loading…
↗
70
61A4387600
Ring, snap
Loading…
↗
71
6T44389300
Washer
Loading…
↗
72
9350108001
Ball
Loading…
↗
73
61A4382A00
Adaptor 1
Loading…
↗
74
61A4388002
Motor assembly
Loading…
↗
75
6T44386J00
Washer, special
Loading…
↗
76
9015705107
Screw, pan head(61a)
Loading…
↗
77
61A4380700
Wire sub assembly
Loading…
↗
78
6T44388500
Grommet
Loading…
↗
79
61A4388401
Frame, commutator end
Loading…
↗
80
9020614086
Washer, wave(6t4)
Loading…
↗
81
9330060820
Bearing(6t4)
Loading…
↗
82
61A4380600
Brush holder assembly
Loading…
↗
83
61A4386K00
Spring, brush
Loading…
↗
84
61A4389100
Brush
Loading…
↗
85
61A4380401
Stator assembly
Loading…
↗
86
61A4380501
Armature assembly
Loading…
↗
87
61A4388700
Bolt, through
Loading…
↗
88
9321072789
O-ring(61a)
Loading…
↗
89
61A4388101
Frame, end
Loading…
↗
90
61A4388111
-
Loading…
↗
92
9310208414
Oil seal(61a)
Loading…
↗
