30DMO (1999)
POWER TRIM & TILT ASSY

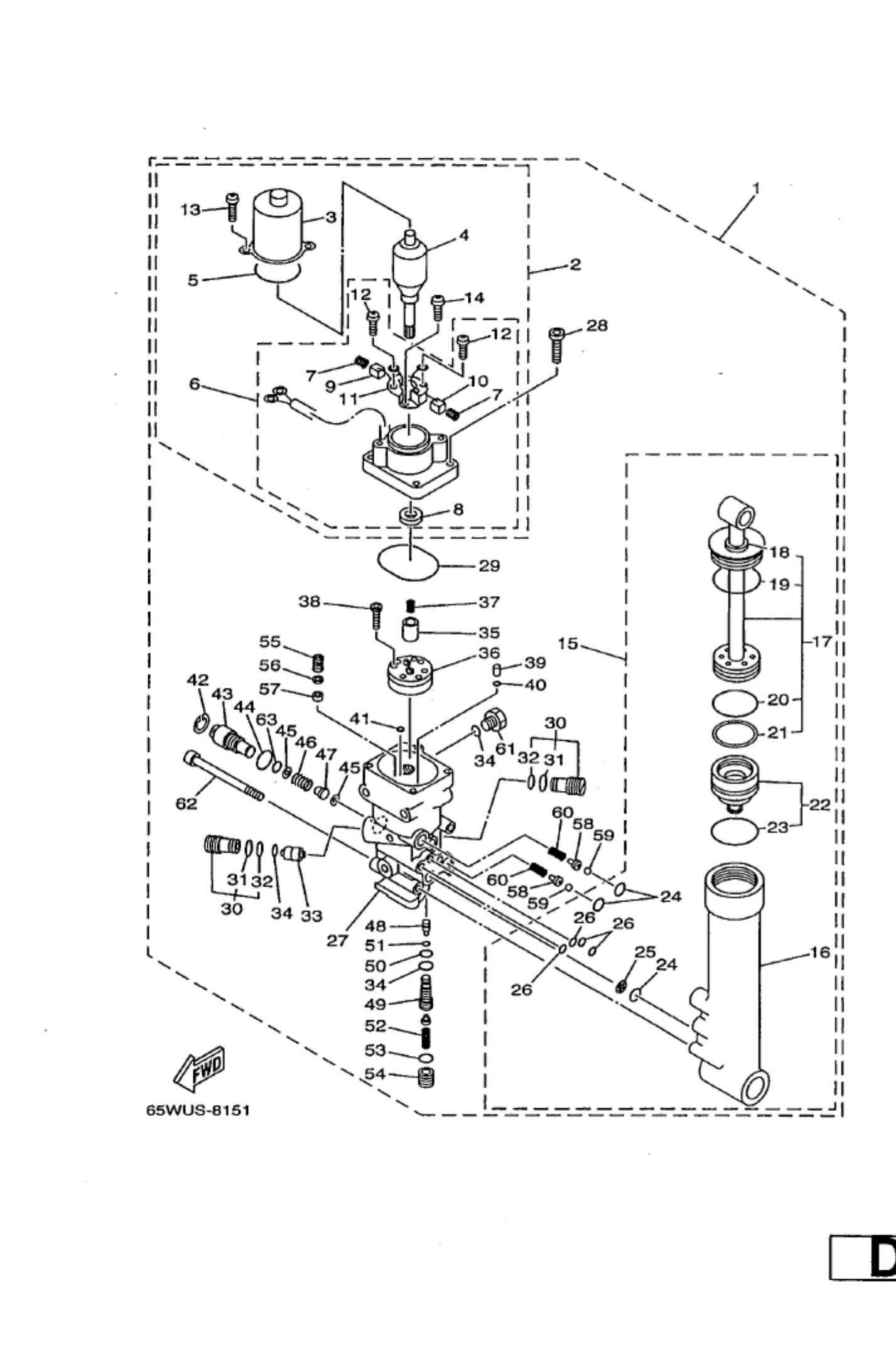

Diagram: POWER TRIM & TILT ASSY
Parts List
Reference
Description
Price
1
65W43800024D
Power trim & tilt assembly
Loading…
↗
2
85W4388000
Motor assembly
Loading…
↗
3
65W4380400
Stator assembly
Loading…
↗
4
65W4380500
-
Loading…
↗
5
65W4386900
O-ring
Loading…
↗
6
65W4388100
-
Loading…
↗
7
65W4386K00
Spring, brush
Loading…
↗
12
65W4367800
Screw, With Washer
Loading…
↗
13
65W4388700
Bolt, screw
Loading…
↗
15
5W4384000
Power Tilt
Loading…
↗
16
65W4380KG0
HRN EN
"..Cylinder, Tilt Sub assembly
Loading…
↗
17
65W4381000
Tilt piston sub assembly
Loading…
↗
21
65W4387100
Ring, back up
Loading…
↗
22
65W4381800
Free Piston Sub assembly
Loading…
↗
23
6H14386110
O-ring
Loading…
↗
24
9321011368
O-ring (2h7)
Loading…
↗
24
65WUS8151
6H1-43816-00
62 65W-43855-00
Loading…
↗
27
65W4380L00
Housing, trim & tilt sub assembly
Loading…
↗
20
9321050768
O-ring
Loading…
↗
28
65W4388800
al _
Bolt, hexagon socket head(1jk)
Loading…
↗
30
6T44380203
Valve sub assembly
Loading…
↗
31
6H14386600
t
O-ring
Loading…
↗
32
6H14386700
O-ring
Loading…
↗
33
62X43-84100
Piston, shuttle
Loading…
↗
34
9321009165
O-ring
Loading…
↗
36
65W4383000
Gear pump assembly
Loading…
↗
38
9131804025
Bolt(62x)
Loading…
↗
40
65W4386100
O-ring
Loading…
↗
41
65W4386200
O-ring
Loading…
↗
42
6H14387500
Ring, snap
Loading…
↗
44
9321018397
O-ring (6g5)
Loading…
↗
45
6H14384700
2]
Seat, manual valve
Loading…
↗
46
65W4385400
Spring, manual release
Loading…
↗
47
65W4382A00
Adaptor 1
Loading…
↗
49
65W4385100
Seat, relief valve
Loading…
↗
50
9321008006
O-ring
Loading…
↗
51
9321003478
O-ring(31m)
Loading…
↗
54
65W4384300
Screw, valve lock
Loading…
↗
95
65W4383100
Connector, shaft
Loading…
↗
97
6T44385300
Spring, main valve
Loading…
↗
99
65W4381700
Filter 2
Loading…
↗
5
6H14385610
1]
Spring, down relief
Loading…
↗
56
6H14384410
Pin, valve support
Loading…
↗
57
6H14384F10
Seal, main valve
Loading…
↗
58
B5W4386A00
Pin, Absorber Valve
Loading…
↗
59
9350108001
Ball
Loading…
↗
60
65W4385300
Spring, absorber valve
Loading…
↗
61
6H14382900
Plug, reservoir
Loading…
↗
62
62X4387800
Bolt, socket
Loading…
↗
63
9321010M74
O-ring
Loading…
↗
