40XWT (2002)
POWER TRIM & TILT ASSY

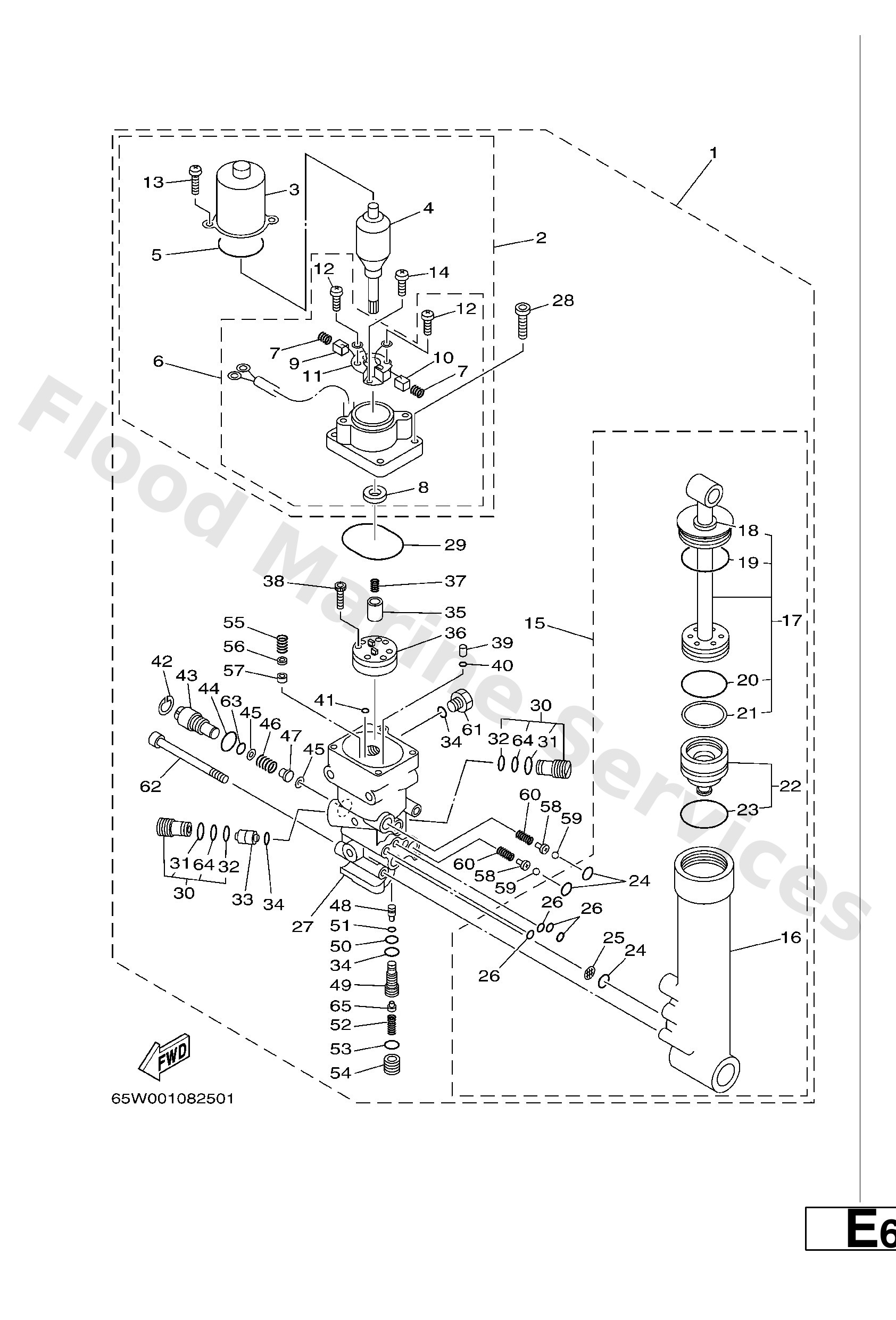

Diagram: POWER TRIM & TILT ASSY
Parts List
Reference
Description
Price
2
65W--43880--00
Motor assembly (hitachi)
Loading…
↗
3
65W--43804--00
Stator assembly
Loading…
↗
4
65W--43805--00
Armature assembly
Loading…
↗
5
65W--43869--00
O-ring
Loading…
↗
6
65W--43881--00
Frame, End
Loading…
↗
7
65W--4386K--00
Spring, brush
Loading…
↗
8
65W--43882--00
Oil seal
Loading…
↗
9
65W--43892--00
Brush 2
Loading…
↗
10
65W--43891--00
Brush 1
Loading…
↗
11
65W--4380F--00
Plate, brush holder
Loading…
↗
12
65W--43879--00
Screw, with washer
Loading…
↗
13
65W--43887--00
Bolt, screw
Loading…
↗
14
65W--4388E--00
Bolt
Loading…
↗
15
65W--43840--00
Power tilt assembly
Loading…
↗
16
65W--4380K--00
Cylinder, tilt sub assembly
Loading…
↗
17
65W--43810--00
Tilt piston sub assembly
Loading…
↗
18
65W--43812--00
Seal, dust
Loading…
↗
19
65W--43865--00
O-ring
Loading…
↗
20
6H1--43861--10
O-ring
Loading…
↗
21
65W--43871--00
Ring, back up
Loading…
↗
22
65W--4381B--00
Free piston sub assembly
Loading…
↗
24
93210--11368
O-ring (2h7)
Loading…
↗
25
6H1--43816--00
Filter 1
Loading…
↗
26
93210--064A5
O-ring(61a)
Loading…
↗
27
65W--4380L--00
Housing, trim & tilt sub assembly
Loading…
↗
28
65W--43888--00
Bolt, hexagon socket head(1jk)
Loading…
↗
29
93210--50768
O-ring
Loading…
↗
30
6T4--43802--03
Valve sub assembly
Loading…
↗
31
6H1--43866--00
O-ring
Loading…
↗
32
6H1--43867--00
O-ring
Loading…
↗
33
62X--43841--00
Piston, shuttle
Loading…
↗
34
93210--09165
O-ring
Loading…
↗
35
65W--43831--00
Connector, shaft
Loading…
↗
36
65W--43830--00
Gear pump assembly
Loading…
↗
37
6T4--43853--00
Spring, main valve
Loading…
↗
38
91318--04025
Bolt(62x)
Loading…
↗
39
65W--43817--00
Filter 2
Loading…
↗
40
65W--43861--00
O-ring
Loading…
↗
41
65W--43862--00
O-ring
Loading…
↗
42
6H1--43875--00
Ring, snap
Loading…
↗
43
6H1--43845--00
Screw, manual release
Loading…
↗
44
93210--18397
O-ring (6g5)
Loading…
↗
45
6H1--43847--00
Seat, manual valve
Loading…
↗
46
65W--43854--00
Spring, manual release
Loading…
↗
47
65W--4382A--00
Adaptor 1
Loading…
↗
48
65W--43844--00
Pin, valve support
Loading…
↗
49
65W--43851--00
Seat, relief valve
Loading…
↗
50
93210--08006
O-ring
Loading…
↗
51
93210--03478
O-ring(31m)
Loading…
↗
52
65W--43855--00
Spring, up relief
Loading…
↗
53
93210--11073
O-ring (p95)
Loading…
↗
54
65W--43843--00
Screw, valve lock
Loading…
↗
55
6H1--43856--10
Spring, down relief
Loading…
↗
56
6H1--43844--10
Pin, valve support
Loading…
↗
57
6H1--4384F--10
Seal, main valve
Loading…
↗
58
65W--4386A--00
Pin, absorber valve
Loading…
↗
59
93501--08001
Ball
Loading…
↗
60
65W--43853--00
Spring, absorber valve
Loading…
↗
61
6H1--43829--00
Plug, reservoir
Loading…
↗
62
62X--43878--00
Bolt, socket
Loading…
↗
63
93210--10M74
O-ring
Loading…
↗
64
9321010M74
O-ring
Loading…
↗
65
6T44380800
Seat valve comp. 1
Loading…
↗
