70BETO (2016)
POWER TRIM & TILT ASSY

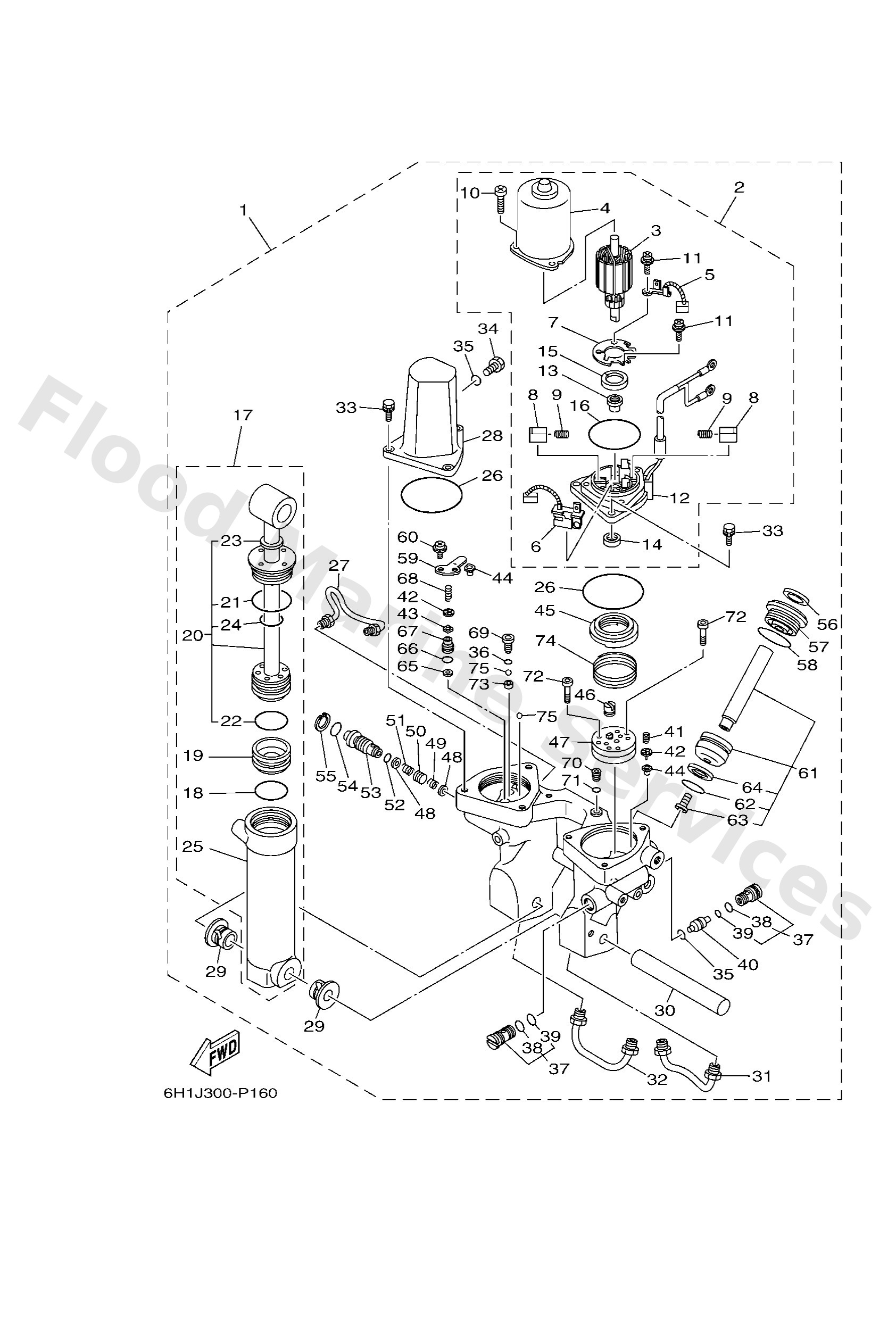

Diagram: POWER TRIM & TILT ASSY
Parts List
Reference
Description
Price
1
6H143800178D
Power trim & tilt assembly
Loading…
↗
2
6H14388002
Motor assembly
Loading…
↗
3
6H14380510
Armature assembly
Loading…
↗
4
6H14380410
Stator assembly
Loading…
↗
5
6H14389110
Brush
Loading…
↗
6
6H14389210
Breaker comp. (brush 2)
Loading…
↗
7
6H14380F10
Plate, brush holder
Loading…
↗
8
6H14380J10
Holder, brush
Loading…
↗
9
6H14386K10
Spring, brush
Loading…
↗
10
9788505016
Screw, pan head(6b0)
Loading…
↗
11
9760704310
Screw, pan head(6g8)
Loading…
↗
12
6H14388110
Frame, end
Loading…
↗
13
6H14380H10
Metal
Loading…
↗
14
9310208M43
Oil seal(6b0)
Loading…
↗
15
6H14380G10
Plate
Loading…
↗
16
6H14386510
O-ring
Loading…
↗
17
6H14384012
Power tilt assembly
Loading…
↗
18
6H14386110
O-ring
Loading…
↗
19
6H14381411
Piston, free
Loading…
↗
20
6H14381012
Tilt piston sub assembly
Loading…
↗
21
6H14386100
O-ring
Loading…
↗
22
6H14386200
O-ring
Loading…
↗
23
6H14381200
Seal dast
Loading…
↗
24
6D84386100
O-ring
Loading…
↗
25
6H14381310
Cylinder, tilt
Loading…
↗
26
9321068N50
O-ring
Loading…
↗
27
6H14383510
Pipe
Loading…
↗
28
6H14382810
Body, reservoir
Loading…
↗
29
9038618M14
Bushing (6e5)
Loading…
↗
30
6E54381800
Pin, lower shock mount
Loading…
↗
31
6H14383310
Pipe
Loading…
↗
32
6H14383400
Pipe
Loading…
↗
33
9759506420
Bolt(7u8)
Loading…
↗
34
6H14382900
Plug, reservoir
Loading…
↗
35
9321009165
O-ring
Loading…
↗
36
93210064A5
O-ring(61a)
Loading…
↗
37
67F4380200
Valve sub assembly
Loading…
↗
38
6H14386601
O-ring
Loading…
↗
39
9321012N52
O-ring
Loading…
↗
40
6H14384111
Piston, shuttle
Loading…
↗
41
6H14385610
Spring, down relief
Loading…
↗
42
6H14384410
Pin, valve support
Loading…
↗
43
6H14384G11
Seal, relief valve
Loading…
↗
44
6H14384F10
Seal, main valve
Loading…
↗
45
6H14381701
Filter 2
Loading…
↗
46
6H14383110
Connector, shaft
Loading…
↗
47
6H14383011
Gear pump assembly
Loading…
↗
48
6H14384700
Seat, manual valve
Loading…
↗
49
6H14389900
Spring, manual release
Loading…
↗
50
6H14382A10
Adaptor 1
Loading…
↗
51
6H14385400
Spring, manual release
Loading…
↗
52
9321010M74
O-ring
Loading…
↗
53
6H14384500
Screw, manual release
Loading…
↗
54
6D84386300
O-ring
Loading…
↗
55
6H14387500
Ring, snap
Loading…
↗
56
6H14382210
Seal, trim dust
Loading…
↗
57
6H14382111
Screw, trim cylinder end
Loading…
↗
59
6H14384E20
Spring, trim
Loading…
↗
60
9760205210
Screw, pan head with washer
Loading…
↗
61
6H14382011
Piston sub assembly
Loading…
↗
62
6H14386400
O-ring
Loading…
↗
63
9131808016
Bolt, socket
Loading…
↗
64
6H14387400
Ring, back up
Loading…
↗
65
6H14381600
Filter 1
Loading…
↗
66
9321011368
O-ring (2h7)
Loading…
↗
67
6H14389512
Seat, relief valve
Loading…
↗
68
6H14385511
Spring, up relief
Loading…
↗
69
6H14384311
Screw, valve lock
Loading…
↗
70
6H14388E11
Plug, tapper screw
Loading…
↗
71
6H14386800
O-ring
Loading…
↗
72
9131804025
Bolt(62x)
Loading…
↗
73
6H14387J00
Washer, special 2
Loading…
↗
74
6H14385H00
Spring, seal
Loading…
↗
75
9350532038
Ball(7fk)
Loading…
↗
