F20AEH (1998)
POWER TRIM & TILT ASSY

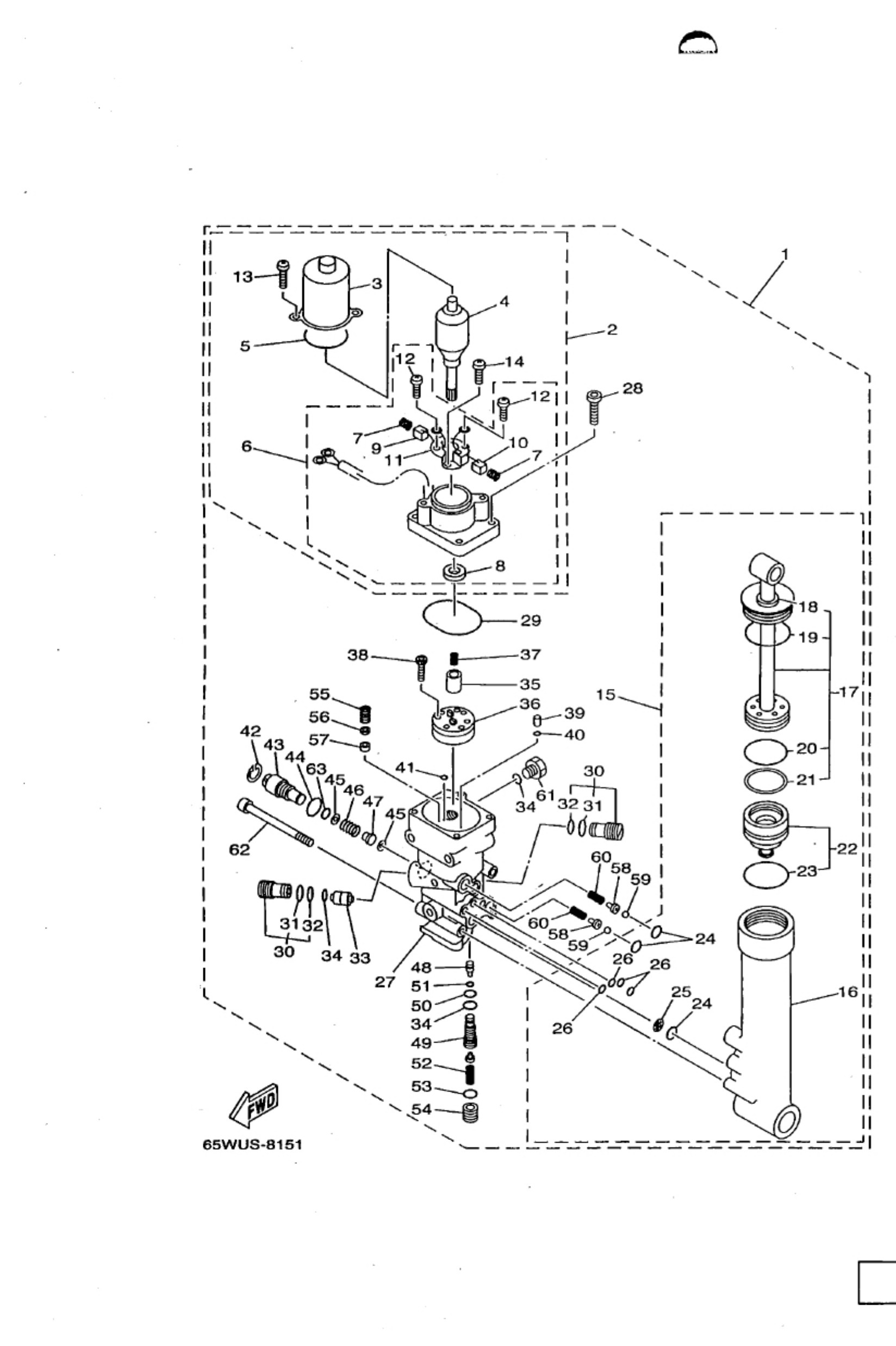

Diagram: POWER TRIM & TILT ASSY
Parts List
Reference
Description
Price
28
65W4388800
Bolt, hexagon socket head(1jk)
Loading…
↗
29
9321050768
O-ring
Loading…
↗
30
6T44380203
Valve sub assembly
Loading…
↗
31
6H14386600
O-ring
Loading…
↗
32
6H14386700
O-ring
Loading…
↗
33
62X43841
Piston, shuttle
Loading…
↗
34
9321009165
O-ring
Loading…
↗
35
65W4383100
Connector, shaft
Loading…
↗
36
65W4383000
Gear pump assembly
Loading…
↗
37
6T44385300
Spring, main valve
Loading…
↗
38
9131804026
Bolt
Loading…
↗
39
65W4381700
Filter 2
Loading…
↗
40
65W4386100
O-ring
Loading…
↗
41
65W4386200
O-ring
Loading…
↗
42
6H14387500
Ring, snap
Loading…
↗
43
6H14384500
Screw, manual release
Loading…
↗
44
9321018397
O-ring (6g5)
Loading…
↗
45
6H14384700
Seat, manual valve
Loading…
↗
46
65W4385400
Spring, manual release
Loading…
↗
47
65W4382A00
Adaptor 1
Loading…
↗
48
65W43-84400
or NEI
Pin, valve support
Loading…
↗
49
65W4385100
Seat, relief valve
Loading…
↗
50
9321008006
O-ring
Loading…
↗
51
9321003478
O-ring(31m)
Loading…
↗
51
65WUS8151
62 65W-43855-00
Loading…
↗
54
65W4384300
Screw, valve lock
Loading…
↗
58
93210110730
© TTT TTT TTT TT EEE
O-ring (p95)
Loading…
↗
