F25DMH (2015)
POWER TRIM & TILT ASSY

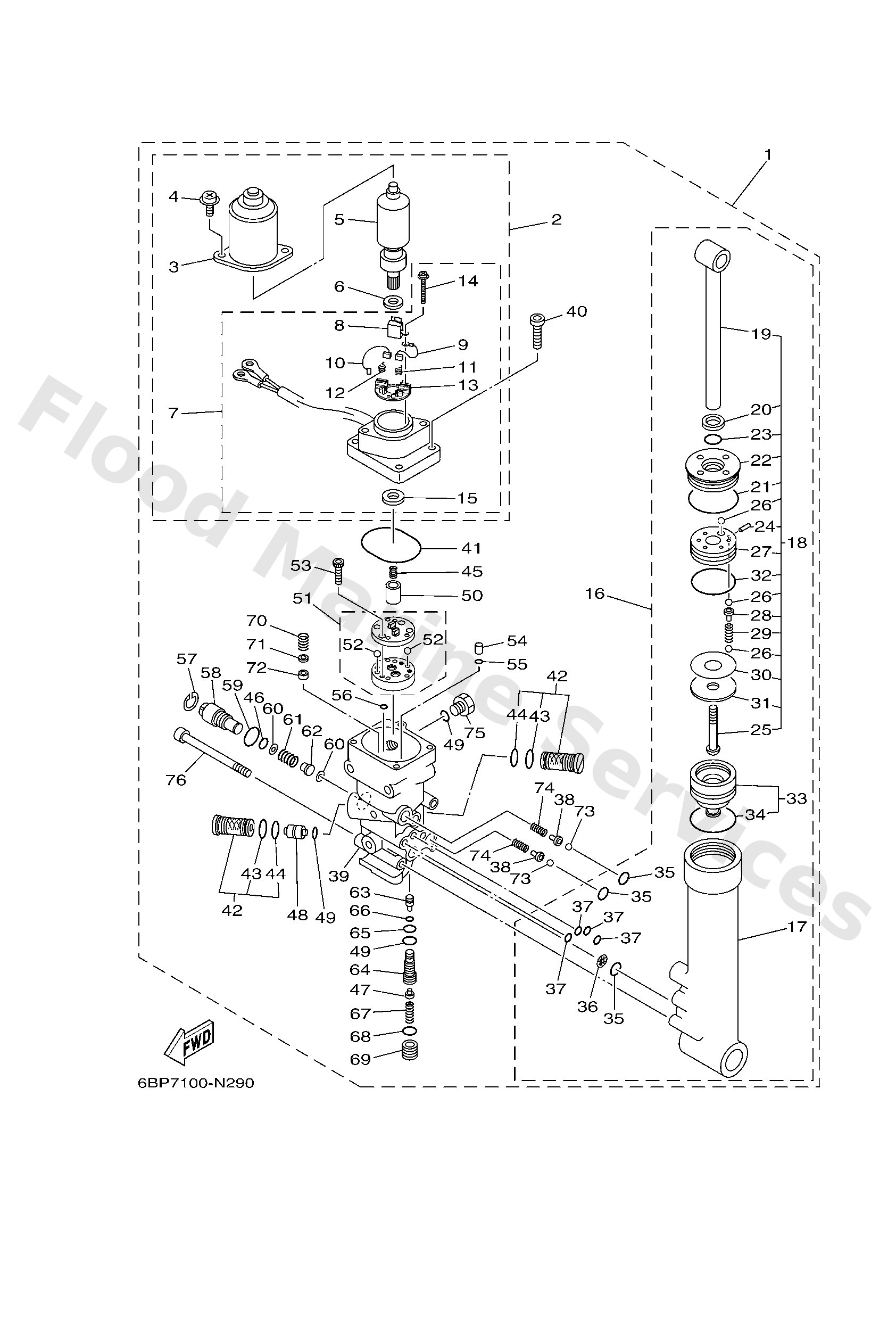

Diagram: POWER TRIM & TILT ASSY
Parts List
Reference
Description
Price
1
65W43800214D
Power trim & tilt assembly
Loading…
↗
2
65W4388001
Motor assembly (hitachi)
Loading…
↗
3
65W4380401
Stator assembly
Loading…
↗
4
65W4388701
Bolt
Loading…
↗
5
65W4380501
Armature assembly
Loading…
↗
6
65W4387G00
Washer
Loading…
↗
7
65W4388101
Frame, end
Loading…
↗
8
65W8218100
Circuit breaker comp.
Loading…
↗
9
65W4389201
Brush 2
Loading…
↗
10
65W4389101
Brush 1
Loading…
↗
11
65W4386K01
Spring, brush
Loading…
↗
12
65W4386L00
Spring, brush 2
Loading…
↗
13
65W4380F01
Plate, brush holder
Loading…
↗
14
65W4387901
Screw, with washer
Loading…
↗
15
65W4388201
Oil seal
Loading…
↗
16
65W4384001
Power tilt assembly
Loading…
↗
17
65W4380K00
Cylinder, tilt sub assembly
Loading…
↗
18
65W4381001
Tilt piston sub assembly
Loading…
↗
19
65W4380101
Rod
Loading…
↗
20
65W4381200
Seal, dust
Loading…
↗
21
65W4386500
O-ring
Loading…
↗
22
65W4381101
Screw, cylinder end
Loading…
↗
23
67C4386700
O-ring
Loading…
↗
24
9160916012
91609-16012
Loading…
↗
25
67C4388600
Bolt
Loading…
↗
26
9350532038
Ball(7fk)
Loading…
↗
27
65W4385A01
Piston, tilt
Loading…
↗
28
65W4386A00
Pin, absorber valve
Loading…
↗
29
65W4385700
Spring, absorber valve
Loading…
↗
30
15A2244200
UN
Shim
Loading…
↗
31
9020110038
Washer, plate
Loading…
↗
32
6H14386200
O-ring
Loading…
↗
33
65W4381B00
Free piston sub assembly
Loading…
↗
34
6H14386110
O-ring
Loading…
↗
35
9321011368
O-ring (2h7)
Loading…
↗
36
69J4381C00
Filter 3
Loading…
↗
37
93210064A5
O-ring(61a)
Loading…
↗
39
65W4380L02
Housing, trim & tilt sub assembly
Loading…
↗
40
9138006020
Bolt, hexagon socket head(1jk)
Loading…
↗
41
9321050768
O-ring
Loading…
↗
42
67F4380200
Valve sub assembly
Loading…
↗
43
6H14386601
O-ring
Loading…
↗
44
9321012N52
O-ring
Loading…
↗
45
6T44385300
Spring, main valve
Loading…
↗
46
9321010M74
O-ring
Loading…
↗
47
6T44380800
Seat valve comp. 1
Loading…
↗
48
62X4384100
Piston, shuttle
Loading…
↗
49
9321009165
O-ring
Loading…
↗
50
65W4383100
Connector, shaft
Loading…
↗
51
65W4383000
Gear pump assembly
Loading…
↗
53
9131804025
Bolt(62x)
Loading…
↗
54
65W4381700
Filter 2
Loading…
↗
55
9321004N50
O-ring
Loading…
↗
56
9321004N51
O-ring
Loading…
↗
57
6H14387500
Ring, snap
Loading…
↗
58
6H14384500
Screw, manual release
Loading…
↗
59
6D84386300
O-ring
Loading…
↗
60
6H14384700
Seat, manual valve
Loading…
↗
61
65W4385400
Spring, manual release
Loading…
↗
62
65W4382A00
Adaptor 1
Loading…
↗
63
65W4384400
Pin, valve support
Loading…
↗
64
65W4385100
Seat, relief valve
Loading…
↗
65
9321008006
O-ring
Loading…
↗
66
9321003478
O-ring(31m)
Loading…
↗
67
65W4385500
Spring, up relief
Loading…
↗
68
9321011073
O-ring (p95)
Loading…
↗
69
65W4384300
Screw, valve lock
Loading…
↗
70
6H14385610
Spring, down relief
Loading…
↗
71
6H14384410
Pin, valve support
Loading…
↗
72
6H14384F10
Seal, main valve
Loading…
↗
73
9350108001
Ball
Loading…
↗
74
65W4385300
Spring, absorber valve
Loading…
↗
75
6H14382900
Plug, reservoir
Loading…
↗
76
62X4387801
Bolt, socket
Loading…
↗
