F30AWHD (2005)
POWER TRIM & TILT ASSY

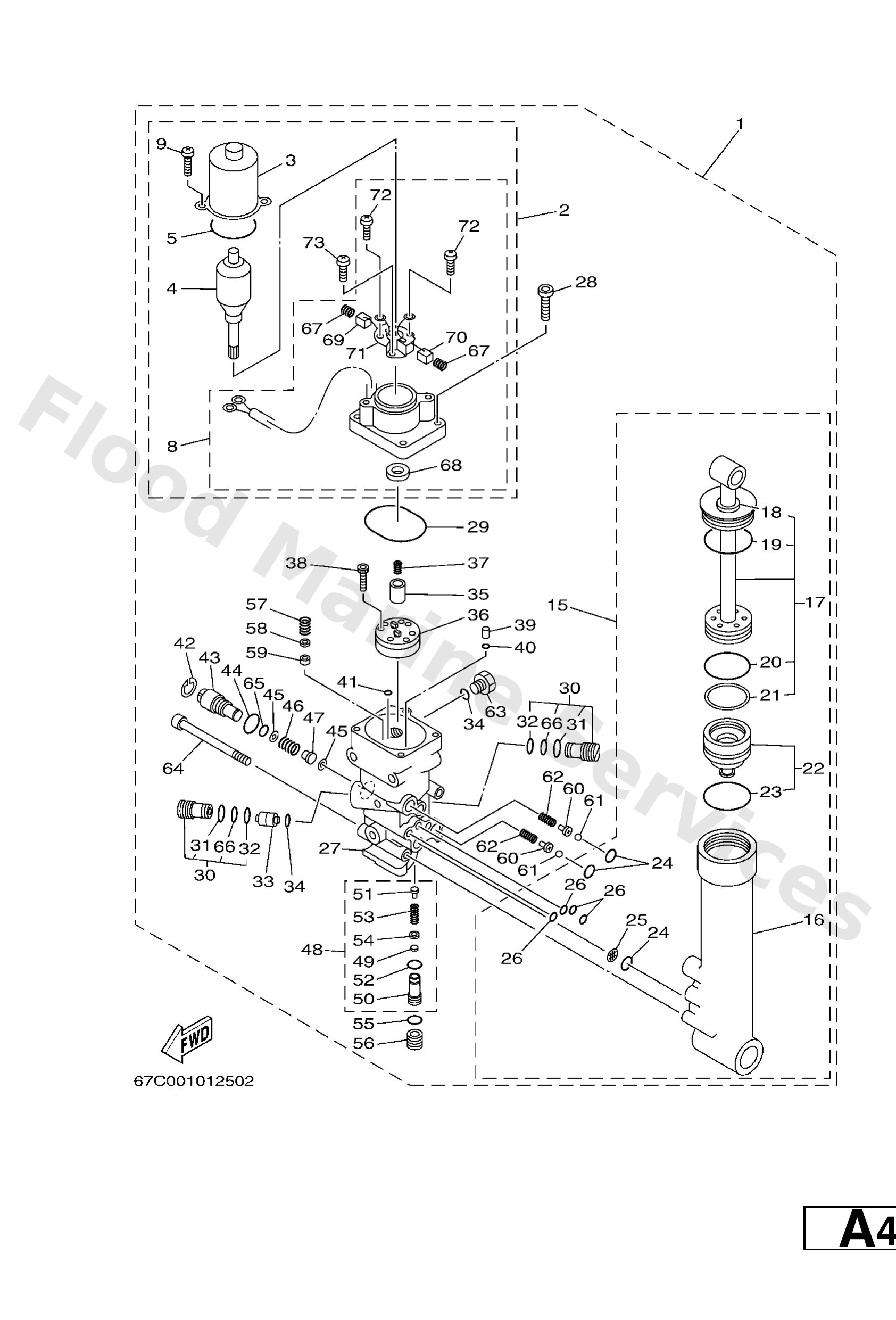

Diagram: POWER TRIM & TILT ASSY
Parts List
Reference
Description
Price
1
67C43800004D
Power trim & tilt assembly
Loading…
↗
2
67C4388000
Motor assembly
Loading…
↗
3
65W4380400
Stator assembly
Loading…
↗
4
65W4380500
-
Loading…
↗
5
65W4386900
O-ring
Loading…
↗
8
67C4388100
Frame, End
Loading…
↗
9
65W4388700
Bolt, screw
Loading…
↗
15
67C4384000
Power tilt assembly
Loading…
↗
16
65W4380K00
Cylinder, tilt sub assembly
Loading…
↗
17
67C4381000
Tilt piston sub assembly
Loading…
↗
18
65W4381200
Seal, dust
Loading…
↗
19
65W4386500
O-ring
Loading…
↗
20
6H14386110
O-ring
Loading…
↗
21
65W4387100
Ring, back up
Loading…
↗
22
65W4381B00
Free piston sub assembly
Loading…
↗
24
9321011368
O-ring (2h7)
Loading…
↗
25
6H14381600
Filter 1
Loading…
↗
26
93210064A5
O-ring(61a)
Loading…
↗
27
67C4380L00
Housing, trim & tilt sub assembly
Loading…
↗
28
65W4388800
Bolt, hexagon socket head(1jk)
Loading…
↗
29
9321050768
O-ring
Loading…
↗
30
6T44380203
Valve sub assembly
Loading…
↗
31
6H14386600
O-ring
Loading…
↗
32
6H14386700
O-ring
Loading…
↗
33
62X4384100
Piston, shuttle
Loading…
↗
34
9321009165
O-ring
Loading…
↗
35
65W4383100
Connector, shaft
Loading…
↗
36
65W4383000
Gear pump assembly
Loading…
↗
37
6T44385300
Spring, main valve
Loading…
↗
38
9131804025
Bolt(62x)
Loading…
↗
39
65W4381700
Filter 2
Loading…
↗
40
65W4386100
O-ring
Loading…
↗
41
65W4386200
O-ring
Loading…
↗
42
6H14387500
Ring, snap
Loading…
↗
43
6H14384500
Screw, manual release
Loading…
↗
44
9321018397
O-ring (6g5)
Loading…
↗
45
6H14384700
Seat, manual valve
Loading…
↗
46
65W4385400
Spring, manual release
Loading…
↗
47
65W4382A00
Adaptor 1
Loading…
↗
48
CS24380381
Case valve comp.
Loading…
↗
49
6H14384G11
Seal, relief valve
Loading…
↗
50
CS24385180
Seat, relief valve
Loading…
↗
51
67F4384300
Screw, valve lock
Loading…
↗
52
9321010M74
O-ring
Loading…
↗
53
6H14385610
Spring, down relief
Loading…
↗
54
6H14384410
Pin, valve support
Loading…
↗
55
9321011073
O-ring (p95)
Loading…
↗
56
65W4384300
Screw, valve lock
Loading…
↗
59
6H14384F10
Seal, main valve
Loading…
↗
60
65W4386A00
Pin, absorber valve
Loading…
↗
61
9350108001
Ball
Loading…
↗
62
65W4385300
Spring, absorber valve
Loading…
↗
63
6H14382900
Plug, reservoir
Loading…
↗
64
62X4387800
Bolt, socket
Loading…
↗
67
65W4386K00
Spring, brush
Loading…
↗
68
65W4388200
Oil seal
Loading…
↗
69
65W4389200
Brush 2
Loading…
↗
70
65W4389100
Brush 1
Loading…
↗
71
65W4380F00
Plate, brush holder
Loading…
↗
72
65W4387900
Screw, with washer
Loading…
↗
73
65W4388E00
-
Loading…
↗
