F40FET (2009)
POWER TRIM & TILT ASSY

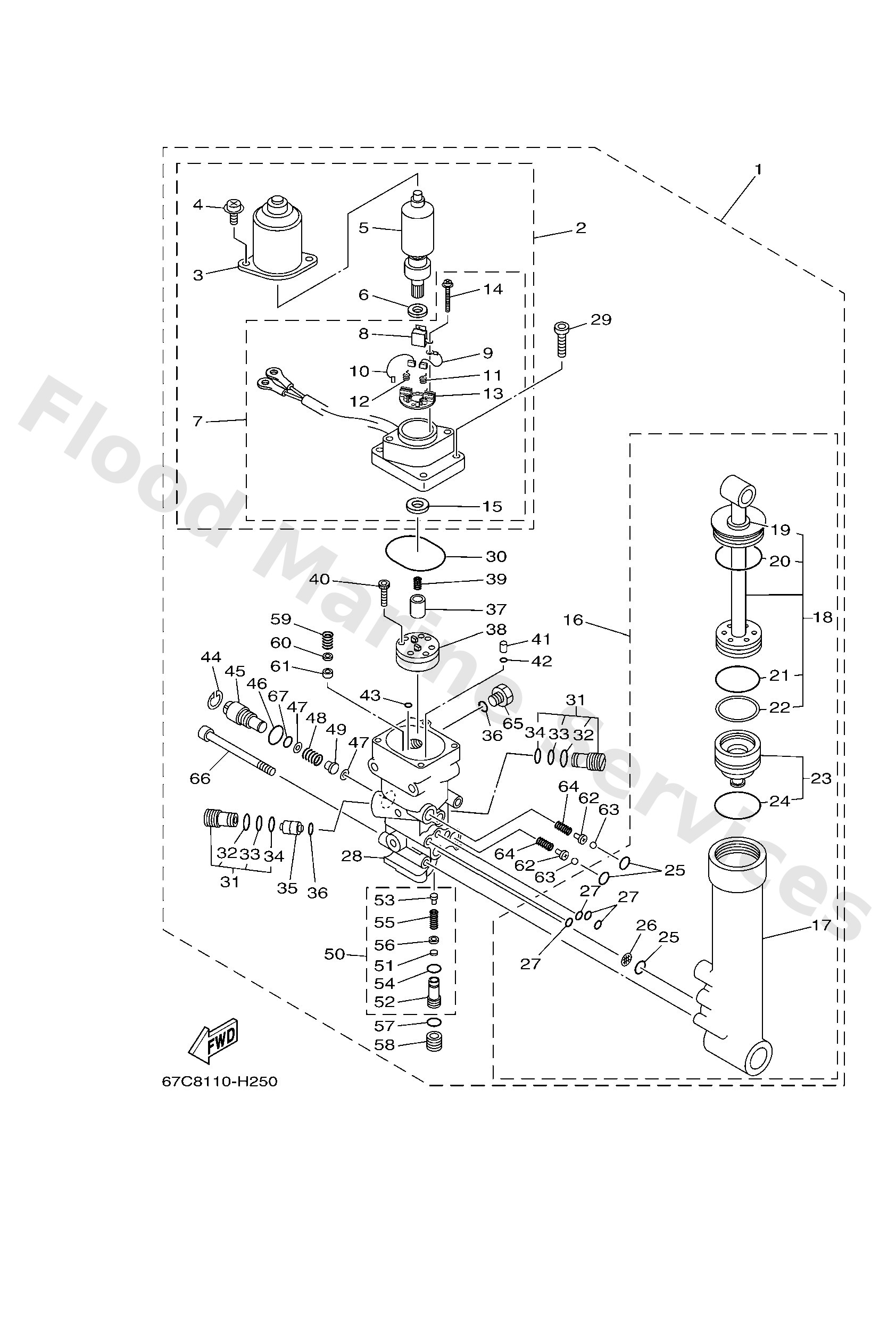

Diagram: POWER TRIM & TILT ASSY
Parts List
Reference
Description
Price
1
67C43800018D
Power trim & tilt assembly
Loading…
↗
2
67C4388001
Motor assembly
Loading…
↗
3
65W4380401
Stator assembly
Loading…
↗
4
65W4388701
Bolt
Loading…
↗
5
65W4380501
Armature assembly
Loading…
↗
6
65W4387G00
Washer
Loading…
↗
7
67C4388101
Frame, end
Loading…
↗
8
65W8218100
Circuit breaker comp.
Loading…
↗
9
65W4389201
Brush 2
Loading…
↗
10
65W4389101
Brush 1
Loading…
↗
11
65W4386K01
Spring, brush
Loading…
↗
12
65W4386L00
Spring, brush 2
Loading…
↗
13
65W4380F01
Plate, brush holder
Loading…
↗
14
65W4387901
Screw, with washer
Loading…
↗
15
65W4388201
Oil seal
Loading…
↗
16
67C4384000
Power tilt assembly
Loading…
↗
17
65W4380K00
Cylinder, tilt sub assembly
Loading…
↗
18
67C4381000
Tilt piston sub assembly
Loading…
↗
19
65W4381200
Seal, dust
Loading…
↗
20
65W4386500
O-ring
Loading…
↗
21
6H14386110
O-ring
Loading…
↗
22
65W4387100
Ring, back up
Loading…
↗
23
65W4381B00
Free piston sub assembly
Loading…
↗
25
9321011368
O-ring (2h7)
Loading…
↗
26
6H14381600
Filter 1
Loading…
↗
27
93210064A5
O-ring(61a)
Loading…
↗
28
67C4380L00
Housing, trim & tilt sub assembly
Loading…
↗
29
65W4388800
Bolt, hexagon socket head(1jk)
Loading…
↗
30
9321050768
O-ring
Loading…
↗
31
6T44380203
Valve sub assembly
Loading…
↗
32
6H14386600
O-ring
Loading…
↗
33
9321010M74
O-ring
Loading…
↗
34
9321012N52
O-ring
Loading…
↗
35
62X4384100
Piston, shuttle
Loading…
↗
36
9321009165
O-ring
Loading…
↗
37
65W4383100
Connector, shaft
Loading…
↗
38
65W4383000
Gear pump assembly
Loading…
↗
39
6T44385300
Spring, main valve
Loading…
↗
40
9131804025
Bolt(62x)
Loading…
↗
41
65W4381700
Filter 2
Loading…
↗
42
9321004N50
O-ring
Loading…
↗
43
9321004N51
O-ring
Loading…
↗
44
6H14387500
Ring, snap
Loading…
↗
45
6H14384500
Screw, manual release
Loading…
↗
46
9321018397
O-ring (6g5)
Loading…
↗
47
6H14384700
Seat, manual valve
Loading…
↗
48
65W4385400
Spring, manual release
Loading…
↗
49
65W4382A00
Adaptor 1
Loading…
↗
50
CS24380381
Case valve comp.
Loading…
↗
51
6H14384G11
Seal, relief valve
Loading…
↗
52
67C4385100
Seat, relief valve
Loading…
↗
53
67F4384300
Screw, valve lock
Loading…
↗
55
6H14385610
Spring, down relief
Loading…
↗
56
6H14384410
Pin, valve support
Loading…
↗
57
9321011073
O-ring (p95)
Loading…
↗
58
65W4384300
Screw, valve lock
Loading…
↗
61
6H14384F10
Seal, main valve
Loading…
↗
62
65W4386A00
Pin, absorber valve
Loading…
↗
63
9350108001
Ball
Loading…
↗
64
65W4385300
Spring, absorber valve
Loading…
↗
65
6H14382900
Plug, reservoir
Loading…
↗
66
62X4387800
Bolt, socket
Loading…
↗
