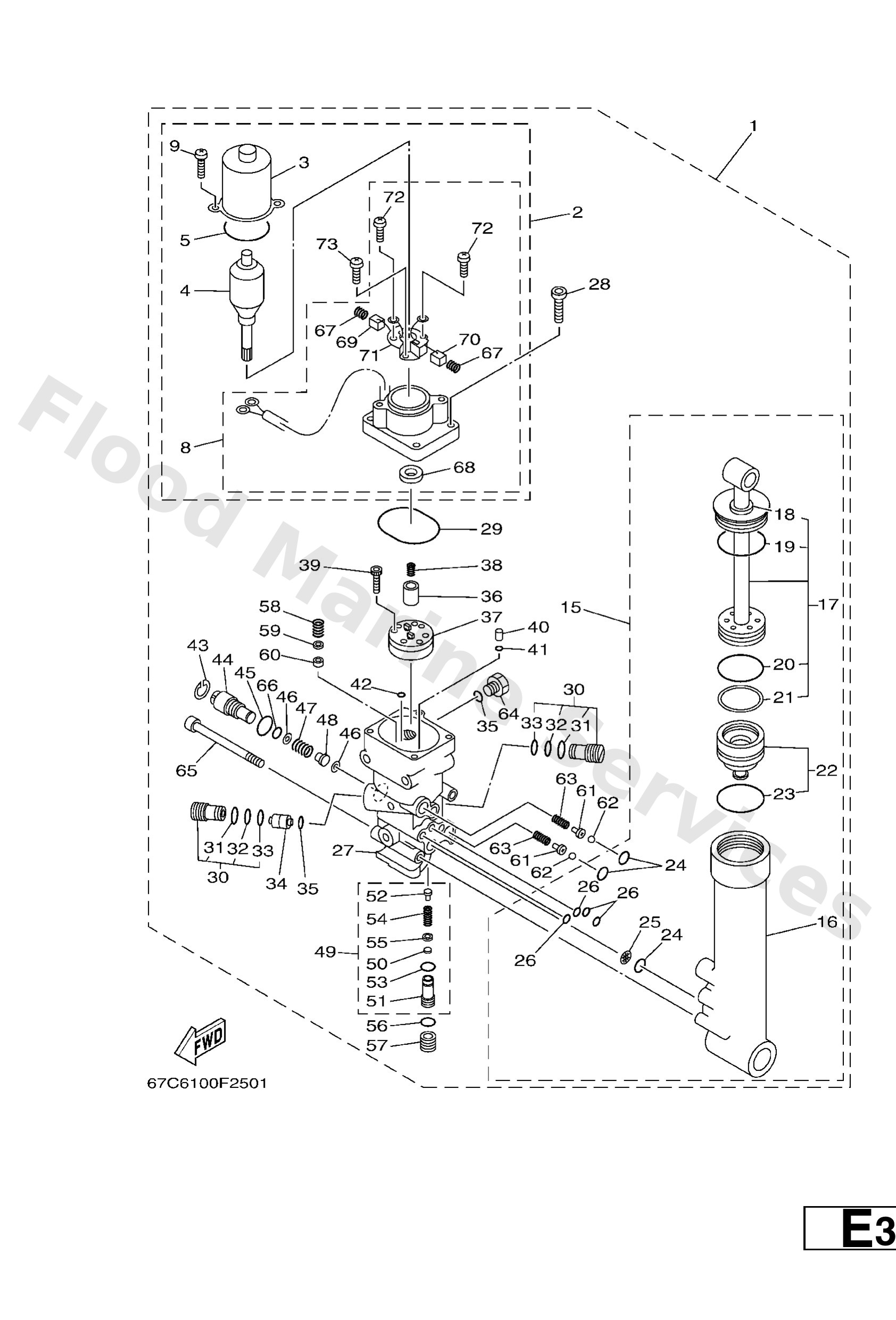

Diagram: POWER TRIM & TILT ASSY

Diagram

Parts List

Reference
Description
Price


1
67C43800004D
Power trim & tilt assembly
Loading…

↗
2
67C4388000
Motor assembly
Loading…

↗
3
65W4380400
Stator assembly
Loading…

↗
4
65W4380500
-
Loading…

↗
5
65W4386900
O-ring
Loading…

↗
8
67C4388100
Frame, End
Loading…

↗
9
65W4388700
Bolt, screw
Loading…

↗
15
67C4384000
Power tilt assembly
Loading…

↗
16
65W4380K00
Cylinder, tilt sub assembly
Loading…

↗
17
67C4381000
Tilt piston sub assembly
Loading…

↗
18
65W4381200
Seal, dust
Loading…

↗
19
65W4386500
O-ring
Loading…

↗
20
6H14386110
O-ring
Loading…

↗
21
65W4387100
Ring, back up
Loading…

↗
22
65W4381B00
Free piston sub assembly
Loading…

↗
24
9321011368
O-ring (2h7)
Loading…

↗
25
6H14381600
Filter 1
Loading…

↗
26
93210064A5
O-ring(61a)
Loading…

↗
27
67C4380L00
Housing, trim & tilt sub assembly
Loading…

↗
28
65W4388800
Bolt, hexagon socket head(1jk)
Loading…

↗
29
9321050768
O-ring
Loading…

↗
30
6T44380203
Valve sub assembly
Loading…

↗
31
6H14386600
O-ring
Loading…

↗
32
9321010M74
O-ring
Loading…

↗
33
6H14386700
O-ring
Loading…

↗
34
62X4384100
Piston, shuttle
Loading…

↗
35
9321009165
O-ring
Loading…

↗
36
65W4383100
Connector, shaft
Loading…

↗
37
65W4383000
Gear pump assembly
Loading…

↗
38
6T44385300
Spring, main valve
Loading…

↗
39
9131804025
Bolt(62x)
Loading…

↗
40
65W4381700
Filter 2
Loading…

↗
41
65W4386100
O-ring
Loading…

↗
42
65W4386200
O-ring
Loading…

↗
43
6H14387500
Ring, snap
Loading…

↗
44
6H14384500
Screw, manual release
Loading…

↗
45
9321018397
O-ring (6g5)
Loading…

↗
46
6H14384700
Seat, manual valve
Loading…

↗
47
65W4385400
Spring, manual release
Loading…

↗
48
65W4382A00
Adaptor 1
Loading…

↗
49
CS24380381
Case valve comp.
Loading…

↗
50
6H14384G11
Seal, relief valve
Loading…

↗
51
CS24385180
Seat, relief valve
Loading…

↗
52
67F4384300
Screw, valve lock
Loading…

↗
54
6H14385610
Spring, down relief
Loading…

↗
55
6H14384410
Pin, valve support
Loading…

↗
56
9321011073
O-ring (p95)
Loading…

↗
57
65W4384300
Screw, valve lock
Loading…

↗
60
6H14384F10
Seal, main valve
Loading…

↗
61
65W4386A00
Pin, absorber valve
Loading…

↗
62
9350108001
Ball
Loading…

↗
63
65W4385300
Spring, absorber valve
Loading…

↗
64
6H14382900
Plug, reservoir
Loading…

↗
65
62X4387800
Bolt, socket
Loading…

↗
67
65W4386K00
Spring, brush
Loading…

↗
68
65W4388200
Oil seal
Loading…

↗
69
65W4389200
Brush 2
Loading…

↗
70
65W4389100
Brush 1
Loading…

↗
71
65W4380F00
Plate, brush holder
Loading…

↗
72
65W4387900
Screw, with washer
Loading…

↗
73
65W4388E00
-
Loading…

↗
