115CETO (2013)
POWER TRIM & TILT ASSY 1

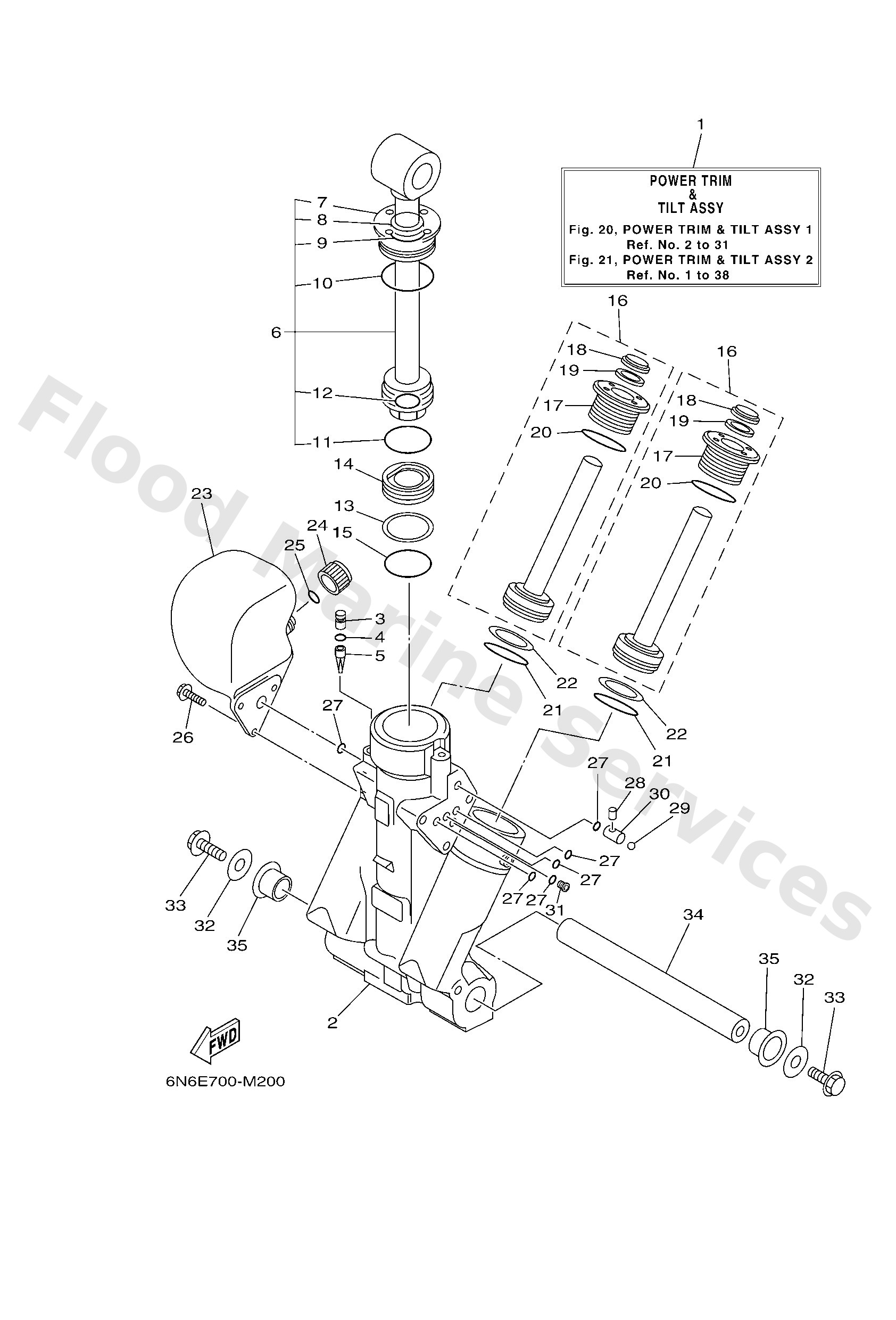

Diagram: POWER TRIM & TILT ASSY 1
Parts List
Reference
Description
Price
1
64E4380008
Power trim & tilt assembly
Loading…
↗
2
64E4382503
Housing, trim & tilt
Loading…
↗
3
6AW4388J00
Plug 2
Loading…
↗
4
9321010M74
O-ring
Loading…
↗
5
64E4381700
Filter 2
Loading…
↗
6
64E4381002
Tilt piston sub assembly
Loading…
↗
7
64E4381102
Screw, cylinder end
Loading…
↗
8
64E4389800
Seal, dust 2
Loading…
↗
9
64E4386700
O-ring 7
Loading…
↗
10
64E4386600
O-ring 6
Loading…
↗
11
6E54386200
O-ring 2
Loading…
↗
12
64E4388300
O-ring 10
Loading…
↗
13
6E54387200
Ring, back-up 2
Loading…
↗
14
6E54381402
Piston, free
Loading…
↗
16
64E4382003
Trim piston sub assembly
Loading…
↗
17
64E4382103
Screw, trim cylinder end
Loading…
↗
18
64E4382200
Seal, trim dust
Loading…
↗
19
64E4384J00
Seal, trim down
Loading…
↗
20
6G54386400
O-ring 4
Loading…
↗
21
6E54386400
O-ring 4
Loading…
↗
22
6E54387401
Ring, back-up 4
Loading…
↗
23
64E4382801
Body, reservoir
Loading…
↗
24
64E4382901
Plug, reservoir
Loading…
↗
25
64E4389700
O-ring
Loading…
↗
26
64E4388E01
Bolt ,screw (l:14mm)
Loading…
↗
27
64E4386900
O-ring 9
Loading…
↗
28
64E4381G00
Pin 1
Loading…
↗
29
6E54385800
Ball 1
Loading…
↗
30
64E4382G00
Valve seat
Loading…
↗
31
64E4384N00
Plug, Orifice
Loading…
↗
32
9020110060
Washer, plate
Loading…
↗
33
9757510530
Bolt, with washer
Loading…
↗
34
6BC4381800
Pin, lower shock mount
Loading…
↗
35
9038622M98
Bush(61u)
Loading…
↗
