F100DET (2013)
POWER TRIM & TILT ASSY 1

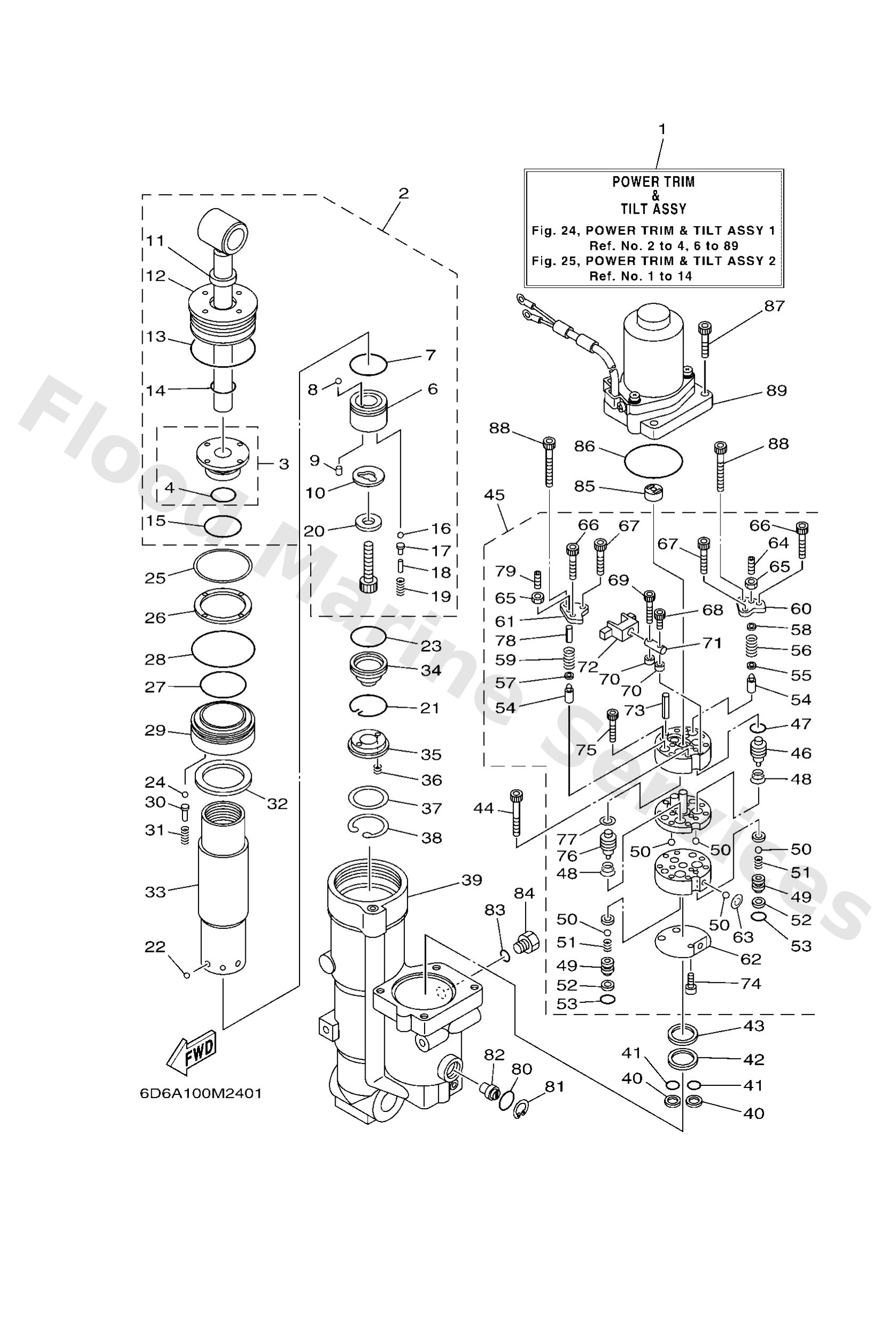

Diagram: POWER TRIM & TILT ASSY 1
Parts List
Reference
Description
Price
1
6D843800108D
Power trim & tilt assembly
Loading…
↗
2
67F4381002
Tilt piston sub assembly
Loading…
↗
3
67F4380R01
Cylinder end sub assembly
Loading…
↗
4
6D84386100
O-ring
Loading…
↗
6
67F4385A02
Piston, tilt
Loading…
↗
7
67F4386300
O-ring
Loading…
↗
8
9350108001
Ball
Loading…
↗
9
9360207244
Pin, dowel
Loading…
↗
10
67F2243500
Plate, valve 2
Loading…
↗
11
6H14381200
Seal dast
Loading…
↗
12
67F4382101
Screw, trim cylinder end
Loading…
↗
13
67F4386100
O-ring
Loading…
↗
15
62X4386200
O-ring
Loading…
↗
17
65W4386A00
Pin, absorber valve
Loading…
↗
18
6884386F00
Pin, straight
Loading…
↗
19
65W4385300
Spring, absorber valve
Loading…
↗
20
67F4389300
Washer
Loading…
↗
21
67F4387500
Ring, snap
Loading…
↗
22
9350316003
Ball
Loading…
↗
25
67F4389900
Plate stopper
Loading…
↗
26
67F4381600
Filter 1
Loading…
↗
27
67F4386200
O-ring
Loading…
↗
28
67F4386500
O-ring
Loading…
↗
29
67F4388A01
Piston, trim
Loading…
↗
30
6T44386A00
Pin, absorber valve
Loading…
↗
31
67F4385700
Spring, absorber valve
Loading…
↗
32
67F4381J00
Plate
Loading…
↗
33
67F2247101
Cylinder, shock absorber
Loading…
↗
34
67F4381B00
Free piston sub assembly
Loading…
↗
35
62X4389900
Plate stopper
Loading…
↗
36
62X4384H00
Spring
Loading…
↗
37
1UF2243400
Plate, valve 1
Loading…
↗
38
62X4387500
Ring, snap
Loading…
↗
39
6D84380K01
Cylinder, tilt sub assembly
Loading…
↗
40
6C64381700
Filter 2
Loading…
↗
41
69J4389J00
O-ring
Loading…
↗
42
6C54381600
Filter 1
Loading…
↗
43
6C54380G00
Plate
Loading…
↗
44
9131805045
Bolt
Loading…
↗
45
6D84383000
Gear pump assembly
Loading…
↗
46
6C64384100
Piston, shuttle
Loading…
↗
47
6H14388300
O-ring
Loading…
↗
48
6C64389400
Spring, shuttle return
Loading…
↗
49
6C64382E00
Adaptor 2
Loading…
↗
50
9350532038
Ball(7fk)
Loading…
↗
51
6C64385300
Spring, main valve
Loading…
↗
52
6C64387G00
Washer
Loading…
↗
54
6C54385100
Seat, relief valve
Loading…
↗
55
6C54389300
Washer
Loading…
↗
56
6D84385500
Spring, up relief
Loading…
↗
57
6C64389300
Washer
Loading…
↗
58
6C54381K00
Holder
Loading…
↗
59
6D84385600
Spring, down relief
Loading…
↗
60
6C54382K00
Cap, relief valve
Loading…
↗
61
6C54382L00
Cap, relief valve
Loading…
↗
62
6C54389500
Seat, relief valve
Loading…
↗
63
6C54385400
Spring, manual release
Loading…
↗
64
92A0803110
Screw set
Loading…
↗
65
9530203600
Nut(7h6)
Loading…
↗
66
9131805030
Bolt
Loading…
↗
67
9131804030
Bolt
Loading…
↗
68
9131803016
Bolt
Loading…
↗
69
6C64388E00
Plug, taper screw
Loading…
↗
70
6C64388F00
Spacer
Loading…
↗
71
6C64386G00
Pin, straight 2
Loading…
↗
72
6C64386E00
Lever 1
Loading…
↗
73
9160950028
Pin spring (am2)
Loading…
↗
74
9131803005
Bolt
Loading…
↗
75
9131805025
Bolt,socket
Loading…
↗
76
6C54384100
Piston, shuttle
Loading…
↗
77
6C54387200
Ring, back up
Loading…
↗
78
6D84381G00
Pin 1
Loading…
↗
79
92A0803012
Screw set
Loading…
↗
80
6D84386300
O-ring
Loading…
↗
81
6H14387500
Ring, snap
Loading…
↗
82
6D84384500
Screw, manual release
Loading…
↗
83
9321009165
O-ring
Loading…
↗
84
6H14382900
Plug, reservoir
Loading…
↗
85
6D84383100
Connector, shaft
Loading…
↗
86
9321064488
93210-64488
Loading…
↗
87
9138006020
Bolt, hexagon socket head(1jk)
Loading…
↗
88
9131805050
Bolt
Loading…
↗
89
6D84388001
REFER TO FIG.25
Motor assembly (with connector)
Loading…
↗
