F100FET (2017)
POWER TRIM & TILT ASSY 1

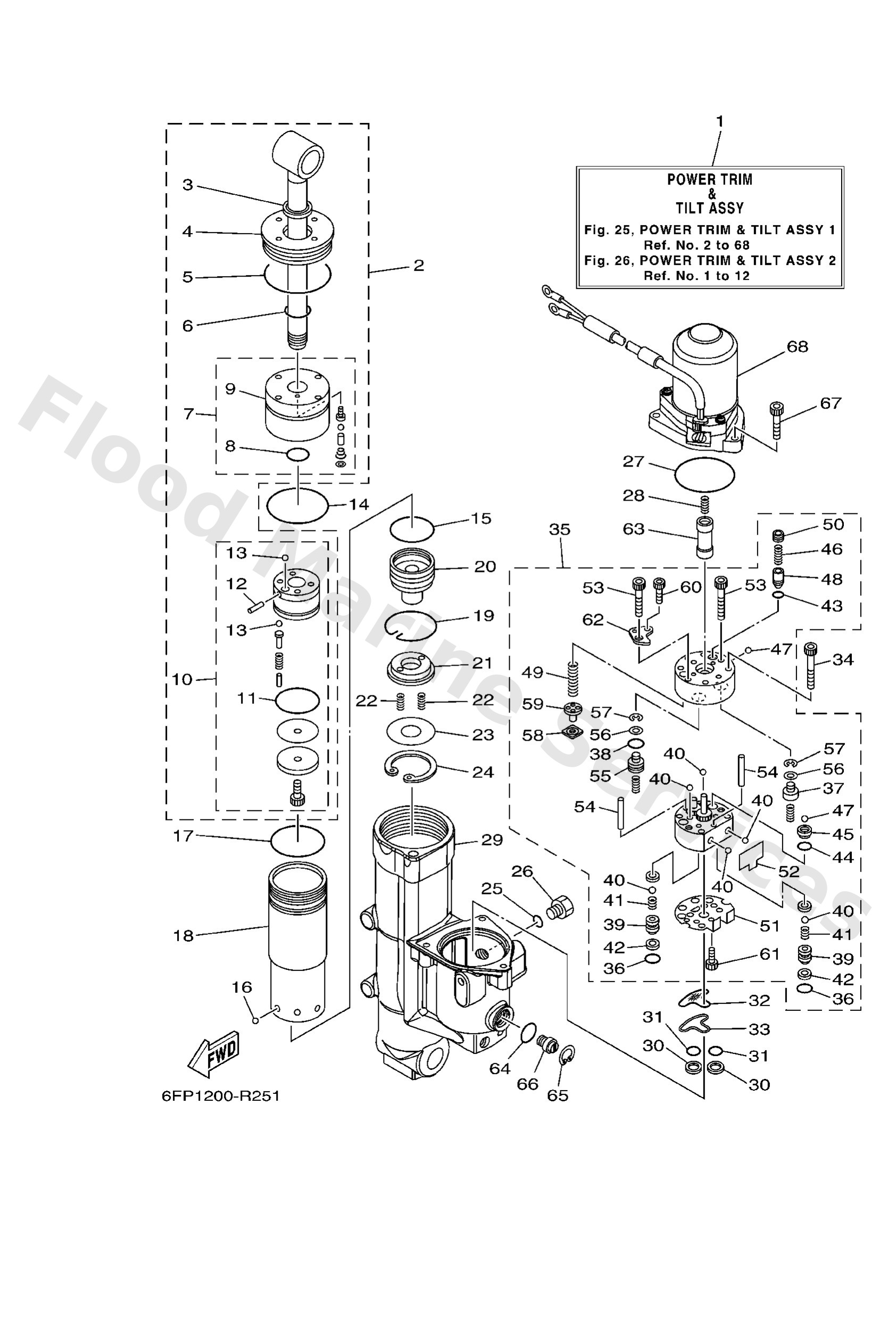

Diagram: POWER TRIM & TILT ASSY 1
Parts List
Reference
Description
Price
1
6FP4380000
Power trim & tilt assembly
Loading…
↗
2
6EK4381000
Tilt piston sub assembly
Loading…
↗
3
6H14381200
Seal dast
Loading…
↗
4
6EK4382100
Screw, trim cylinder end
Loading…
↗
5
6EK4386100
O-ring
Loading…
↗
6
6D84386100
O-ring
Loading…
↗
7
6EK4380R00
Cylinder end sub assembly
Loading…
↗
9
6EK4381100
Screw, cylinder end
Loading…
↗
10
6EK4380P00
Piston sub assembly
Loading…
↗
11
6H14386200
O-ring
Loading…
↗
12
9160916012
91609-16012
Loading…
↗
13
9350532038
Ball(7fk)
Loading…
↗
14
67F4386500
O-ring
Loading…
↗
16
9350316003
Ball
Loading…
↗
17
7BBG386100
O-ring
Loading…
↗
18
6EK2247101
Cylinder, shock absorber
Loading…
↗
19
6EK4387500
Ring, snap
Loading…
↗
20
6EK4381B00
Free piston sub assembly
Loading…
↗
21
6EK4389900
Plate stopper
Loading…
↗
22
62X4384H00
Spring
Loading…
↗
23
6EK2243400
Plate, valve 1
Loading…
↗
24
9900947500
Circlip(48y)
Loading…
↗
25
9321009165
O-ring
Loading…
↗
26
6EK4382900
Plug, reservoir
Loading…
↗
27
9321068N50
O-ring
Loading…
↗
29
6FP4380K00
Cylinder, tilt sub assembly
Loading…
↗
30
6C64381700
Filter 2
Loading…
↗
31
69J4389J00
O-ring
Loading…
↗
32
6C54381600
Filter 1
Loading…
↗
33
6C54380G00
Plate
Loading…
↗
34
9131805045
Bolt
Loading…
↗
35
6FP4383000
Gear pump assembly
Loading…
↗
37
6D84384M00
Piston, shuttle 2
Loading…
↗
38
6H14388300
O-ring
Loading…
↗
39
6EK4382E00
Adaptor 2
Loading…
↗
41
6C64385300
Spring, main valve
Loading…
↗
42
6C64387G00
Washer
Loading…
↗
43
9321004N51
O-ring
Loading…
↗
44
93210064A5
O-ring(61a)
Loading…
↗
45
6D84385100
Seat, relief valve
Loading…
↗
46
6C54385510
Spring, up relief
Loading…
↗
47
9350108001
Ball
Loading…
↗
48
6D84384400
Pin, valve support
Loading…
↗
49
6EK4385600
Spring, down relief
Loading…
↗
50
6D84384300
Screw, valve lock
Loading…
↗
51
6C54389500
Seat, relief valve
Loading…
↗
52
6C54385400
Spring, manual release
Loading…
↗
53
9131805030
Bolt
Loading…
↗
54
9360426256
Pin, dowel
Loading…
↗
55
6D84384100
Piston, shuttle
Loading…
↗
56
69A4384F00
Seal, main valve
Loading…
↗
57
9900203600
Circlip(6l5)
Loading…
↗
58
6H14384G11
Seal, relief valve
Loading…
↗
59
6H14384410
Pin, valve support
Loading…
↗
60
9131803025
Bolt
Loading…
↗
61
9131803005
Bolt
Loading…
↗
62
6D84382L00
Cap, relief valve
Loading…
↗
63
6EK4383100
Connector, shaft
Loading…
↗
64
6D84386300
O-ring
Loading…
↗
65
6H14387500
Ring, snap
Loading…
↗
66
6EK4384500
Screw, manual release
Loading…
↗
67
9138006025
Bolt,socket
Loading…
↗
68
6EK4388011
REFER TO FIG.26
