F150FET (2017)
POWER TRIM & TILT ASSY 1

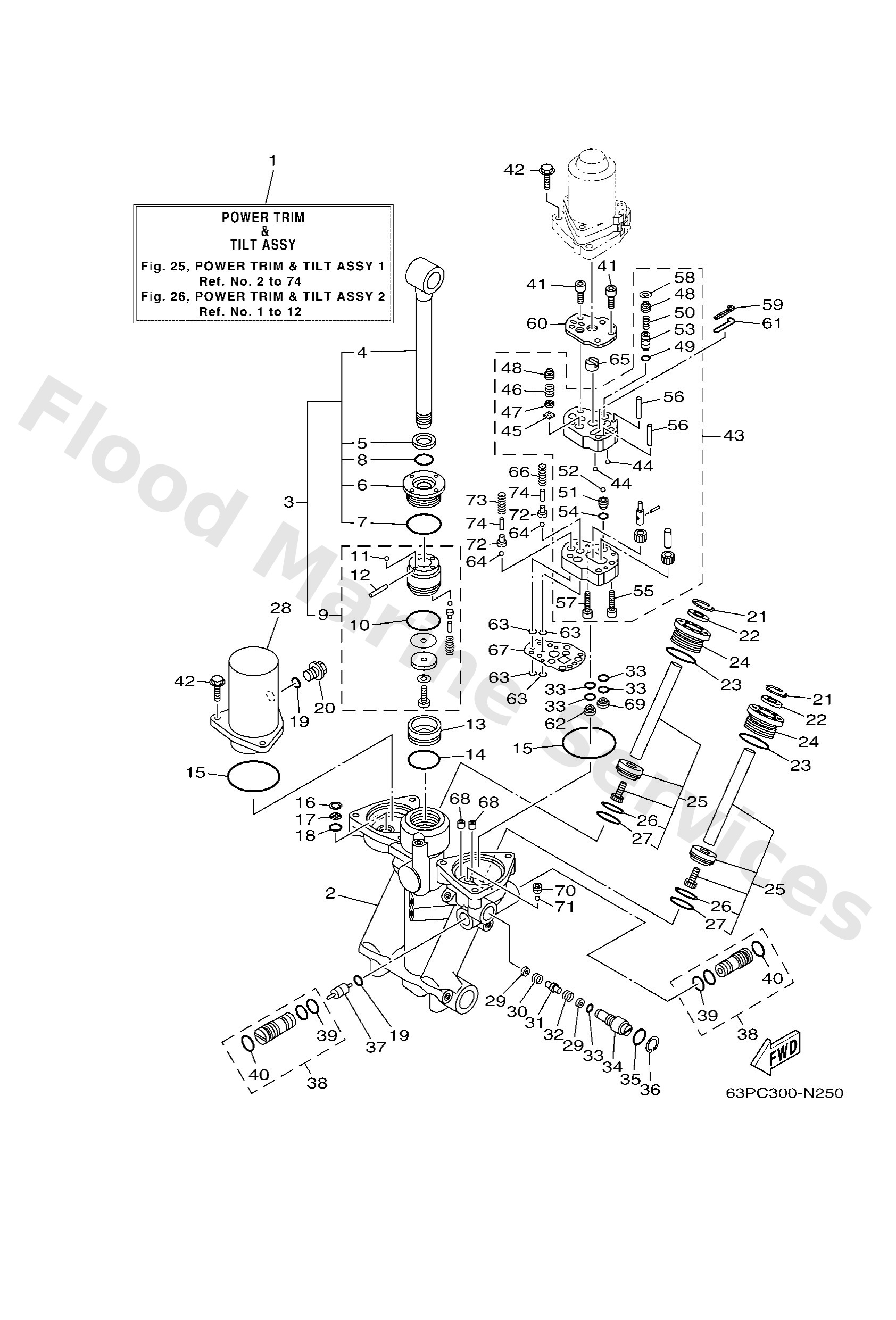

Diagram: POWER TRIM & TILT ASSY 1
Parts List
Reference
Description
Price
1
63P4380013
Power trim & tilt assembly
Loading…
↗
2
63P4380L13
Housing, trim & tilt sub assembly
Loading…
↗
3
63P4381010
Tilt piston sub assembly
Loading…
↗
4
63P4380110
Rod
Loading…
↗
5
9310619N50
Oil seal
Loading…
↗
6
63P4381110
Screw, cylinder end
Loading…
↗
7
6H14386100
O-ring
Loading…
↗
8
63P4386310
O-ring
Loading…
↗
9
63P4380P10
Piston sub assembly
Loading…
↗
10
6H14386200
O-ring
Loading…
↗
11
9350532038
Ball(7fk)
Loading…
↗
12
9160916012
91609-16012
Loading…
↗
13
63P4381410
Piston, free
Loading…
↗
15
9321068N50
O-ring
Loading…
↗
16
63P4387610
Ring, snap
Loading…
↗
17
63P4381610
Filter 1
Loading…
↗
18
9321011N52
O-ring
Loading…
↗
19
9321009165
O-ring
Loading…
↗
20
63P4382910
Plug, reservoir
Loading…
↗
21
63P4387510
Ring, snap
Loading…
↗
22
6H14382210
Seal, trim dust
Loading…
↗
23
63P4386210
O-ring
Loading…
↗
24
63P4382110
Screw, trim cylinder end
Loading…
↗
25
63P4382010
Trim piston sub assembly
Loading…
↗
26
62X4387100
Ring, back up
Loading…
↗
27
9321029375
O-ring (j10)
Loading…
↗
28
63P4382810
Body, reservoir
Loading…
↗
29
63P4384710
Seat, manual valve
Loading…
↗
30
63P4385410
Spring, manual release
Loading…
↗
31
63P4382A10
Adaptor 1
Loading…
↗
32
63P4384H10
Spring
Loading…
↗
33
69J4389J00
O-ring
Loading…
↗
34
63P4384510
Screw, manual release
Loading…
↗
35
9321018397
O-ring (6g5)
Loading…
↗
36
6H14387500
Ring, snap
Loading…
↗
37
6H14384111
Piston, shuttle
Loading…
↗
38
63P4380210
Valve sub assembly
Loading…
↗
39
9321012N52
O-ring
Loading…
↗
40
6H14386601
O-ring
Loading…
↗
41
9131805040
Bolt,socket
Loading…
↗
42
9759506625
Bolt, hexagon w/w deep recess
Loading…
↗
43
63P4383010
Gear pump assembly
Loading…
↗
44
9350316003
Ball
Loading…
↗
45
6H14384G11
Seal, relief valve
Loading…
↗
46
6H14385610
Spring, down relief
Loading…
↗
47
6H14384410
Pin, valve support
Loading…
↗
48
63P4384310
Screw, valve lock
Loading…
↗
49
93210064A5
O-ring(61a)
Loading…
↗
50
69J4385500
Spring, up relief
Loading…
↗
51
63P4385110
Seat, relief valve
Loading…
↗
52
9350108001
Ball
Loading…
↗
53
6CJ4384400
Pin, valve support
Loading…
↗
54
9321007N51
O-ring
Loading…
↗
55
9131804025
Bolt(62x)
Loading…
↗
56
9360429184
Pin, dowel
Loading…
↗
57
9131805025
Bolt,socket
Loading…
↗
58
63P4333810
Washer, wave
Loading…
↗
59
6CJ4381600
Filter 1
Loading…
↗
60
63P4381J10
Plate
Loading…
↗
61
62Y4387100
Ring, back up
Loading…
↗
62
69J4389901
Plate stopper
Loading…
↗
65
69J4383100
Connector, shaft
Loading…
↗
66
63P4385H10
Spring, seal
Loading…
↗
67
63P4384G10
Seal, relief valve
Loading…
↗
68
63P4388H10
Plug
Loading…
↗
69
63P4389910
Plate stopper
Loading…
↗
70
61A4387800
Bolt, socket
Loading…
↗
72
65W4386A00
Pin, absorber valve
Loading…
↗
73
63P4385710
Spring, absorber valve
Loading…
↗
74
6884386F00
Pin, straight
Loading…
↗
