F50DET (2010)
POWER TRIM & TILT ASSY 1

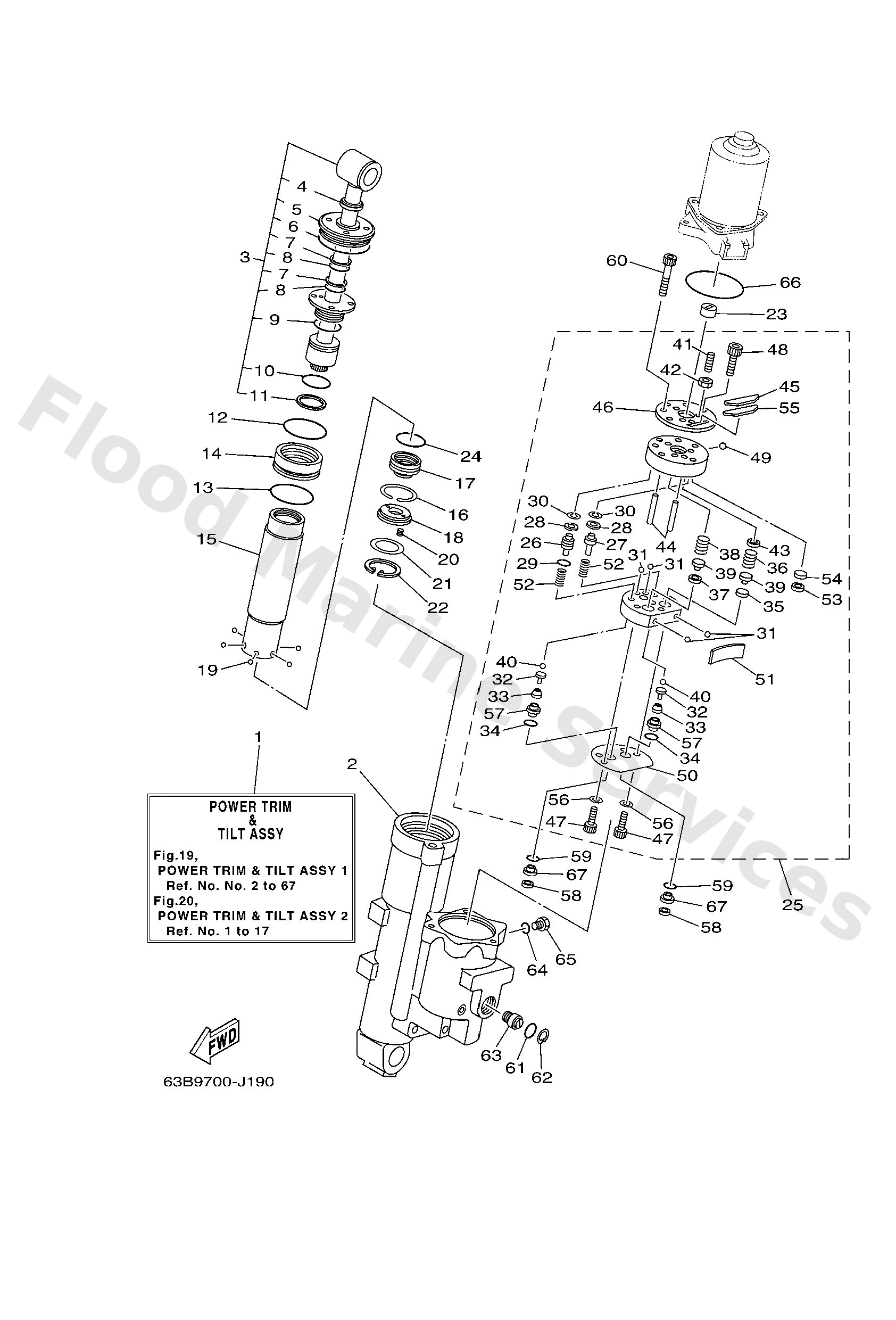

Diagram: POWER TRIM & TILT ASSY 1
Parts List
Reference
Description
Price
1
62Y43800018D
Power trim & tilt assembly
Loading…
↗
2
62Y4380K01
Cylinder, tilt sub assembly
Loading…
↗
3
62X4381001
Tilt piston sub assembly
Loading…
↗
4
62Y4382200
Seal, trim dust
Loading…
↗
5
62X4382100
Screw, trim cylinder end
Loading…
↗
6
62X4386100
O-ring
Loading…
↗
7
62X4387200
Ring, back up
Loading…
↗
8
6C54386300
O-ring
Loading…
↗
9
62X4386200
O-ring
Loading…
↗
10
9321029375
O-ring (j10)
Loading…
↗
11
62X4387100
Ring, back up
Loading…
↗
12
9321044383
O-ring (705)
Loading…
↗
13
9321048214
O-ring
Loading…
↗
14
62X4388A00
Piston, trim
Loading…
↗
15
62Y2247100
Cylinder, shock absorber
Loading…
↗
16
67F4387500
Ring, snap
Loading…
↗
17
69W4381B00
Free piston sub assembly
Loading…
↗
18
62X4389900
Plate stopper
Loading…
↗
19
9350316003
Ball
Loading…
↗
20
62X4384H00
Spring
Loading…
↗
21
1UF2243400
Plate, valve 1
Loading…
↗
22
62X4387500
Ring, snap
Loading…
↗
23
6H14383110
Connector, shaft
Loading…
↗
25
62Y4383001
Gear pump assembly
Loading…
↗
26
69J4384100
Piston, shuttle
Loading…
↗
27
69J4384M00
Piston, shuttle 2
Loading…
↗
28
69A4384F00
Seal, main valve
Loading…
↗
29
6H14388300
O-ring
Loading…
↗
30
9900203600
Circlip(6l5)
Loading…
↗
31
9350532038
Ball(7fk)
Loading…
↗
32
65W4386A00
Pin, absorber valve
Loading…
↗
33
69J4385300
Spring, main valve
Loading…
↗
34
69J4389J00
O-ring
Loading…
↗
35
6H14384G11
Seal, relief valve
Loading…
↗
36
62Y4385500
Spring, up relief
Loading…
↗
37
6H14384F10
Seal, main valve
Loading…
↗
38
6H14385610
Spring, down relief
Loading…
↗
39
6H14384410
Pin, valve support
Loading…
↗
41
92A0803110
Screw set
Loading…
↗
42
9530203600
Nut(7h6)
Loading…
↗
43
62Y4382A00
Adaptor 1
Loading…
↗
44
9360426256
Pin, dowel
Loading…
↗
45
62Y4381600
Filter 1
Loading…
↗
46
62Y4382L00
Cap, relief valve
Loading…
↗
47
9131805020
Bolt, socket
Loading…
↗
48
9131805008
Bolt,socket
Loading…
↗
49
9350108001
Ball
Loading…
↗
50
69W4384G00
Seal, relief valve
Loading…
↗
51
62Y4385400
Spring, manual release
Loading…
↗
52
69J4389400
Spring, shuttle return
Loading…
↗
53
62Y4387J00
Washer, special 2
Loading…
↗
54
62Y2243400
Plate, valve 1
Loading…
↗
55
62Y4387100
Ring, back up
Loading…
↗
56
62Y4387G00
Washer
Loading…
↗
57
69J4389300
Washer
Loading…
↗
58
6H14381600
Filter 1
Loading…
↗
60
9131806040
Bolt,socket
Loading…
↗
61
9321018397
O-ring (6g5)
Loading…
↗
62
6H14387500
Ring, snap
Loading…
↗
63
62Y4384500
Screw, manual release
Loading…
↗
64
9321009165
O-ring
Loading…
↗
65
6H14382900
Plug, reservoir
Loading…
↗
66
62X4386500
O-ring
Loading…
↗
67
69W4389901
Plate stopper
Loading…
↗
