F50FED (2008)
POWER TRIM & TILT ASSY 1

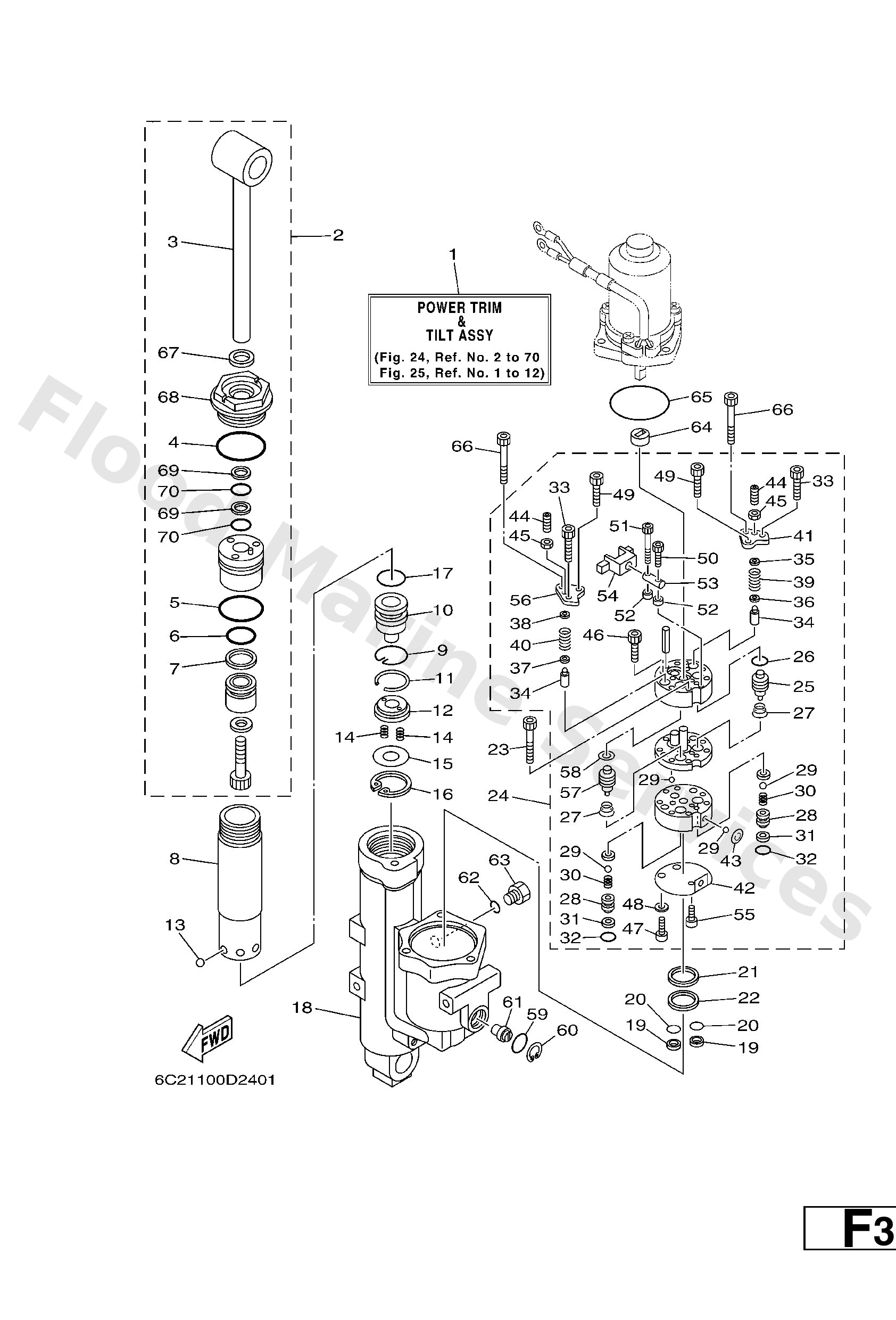

Diagram: POWER TRIM & TILT ASSY 1
Parts List
Reference
Description
Price
1
6C543800018D
Power trim & tilt assembly
Loading…
↗
2
6C54381000
Tilt piston sub assembly
Loading…
↗
3
6C54380100
Rod
Loading…
↗
4
62Y4386300
O-ring
Loading…
↗
5
6C54386200
O-ring
Loading…
↗
6
6C54386100
O-ring
Loading…
↗
7
6C54387100
Ring, back up
Loading…
↗
8
6C52247100
Cylinder, shock absorber
Loading…
↗
9
6C54387500
Ring, snap
Loading…
↗
10
6C54381B00
Free piston sub assembly
Loading…
↗
11
9345032116
Circlip(1hx)
Loading…
↗
12
6C54389900
Plate stopper
Loading…
↗
13
9350316003
Ball
Loading…
↗
14
62X4384H00
Spring
Loading…
↗
15
6C52243500
Plate, valve 2
Loading…
↗
16
9900932500
Circlip(46t)
Loading…
↗
18
6C54380K00
Cylinder, tilt sub assembly
Loading…
↗
19
6C54381710
Filter 2
Loading…
↗
20
69J4389J00
O-ring
Loading…
↗
21
6C54381600
Filter 1
Loading…
↗
22
6C54380G00
Plate
Loading…
↗
23
9131205045
Bolt
Loading…
↗
24
6C54383000
Gear pump assembly
Loading…
↗
25
6C64384100
Piston, shuttle
Loading…
↗
26
6H14388300
O-ring
Loading…
↗
27
6C64389400
Spring, shuttle return
Loading…
↗
28
6C64382E00
Adaptor 2
Loading…
↗
29
9350532038
Ball(7fk)
Loading…
↗
30
6C64385300
Spring, main valve
Loading…
↗
31
6C64387G00
Washer
Loading…
↗
33
9131205030
Bolt
Loading…
↗
34
6C54385100
Seat, relief valve
Loading…
↗
35
6C54381K00
Holder
Loading…
↗
36
6C54389300
Washer
Loading…
↗
37
6C64389300
Washer
Loading…
↗
38
6C64381K00
Holder
Loading…
↗
39
6C54385500
Spring, up relief
Loading…
↗
40
6C54385600
Spring, down relief
Loading…
↗
41
6C54382K00
Cap, relief valve
Loading…
↗
42
6C54389500
Seat, relief valve
Loading…
↗
43
6C54385400
Spring, manual release
Loading…
↗
44
92A0803110
Screw set
Loading…
↗
45
9530203600
Nut(7h6)
Loading…
↗
46
9131205025
Bolt
Loading…
↗
47
6C64387800
Bolt, socket
Loading…
↗
48
62Y4387G00
Washer
Loading…
↗
49
9131204030
Bolt
Loading…
↗
50
9131203016
Bolt
Loading…
↗
51
6C64388E00
Plug, taper screw
Loading…
↗
52
6C64388F00
Spacer
Loading…
↗
53
6C64386G00
Pin, straight 2
Loading…
↗
54
6C64386E00
Lever 1
Loading…
↗
55
9131203005
Bolt
Loading…
↗
56
6C54382L00
Cap, relief valve
Loading…
↗
57
6C54384100
Piston, shuttle
Loading…
↗
58
6C54387200
Ring, back up
Loading…
↗
59
9321018397
O-ring (6g5)
Loading…
↗
60
6H14387500
Ring, snap
Loading…
↗
61
6C54384500
Screw, manual release
Loading…
↗
62
9321009165
O-ring
Loading…
↗
63
6H14382900
Plug, reservoir
Loading…
↗
64
6C54383100
Connector, shaft
Loading…
↗
65
9321064488
93210-64488
Loading…
↗
66
9131205050
Bolt
Loading…
↗
67
62Y4382200
Seal, trim dust
Loading…
↗
68
6C54382100
Screw, trim cylinder end
Loading…
↗
69
62X4387200
Ring, back up
Loading…
↗
70
6C54386300
O-ring
Loading…
↗
