Yamaha Outboard Parts - POWER TRIM & TILT ASSY 1 - FL115AET (2002) | Flood Marine

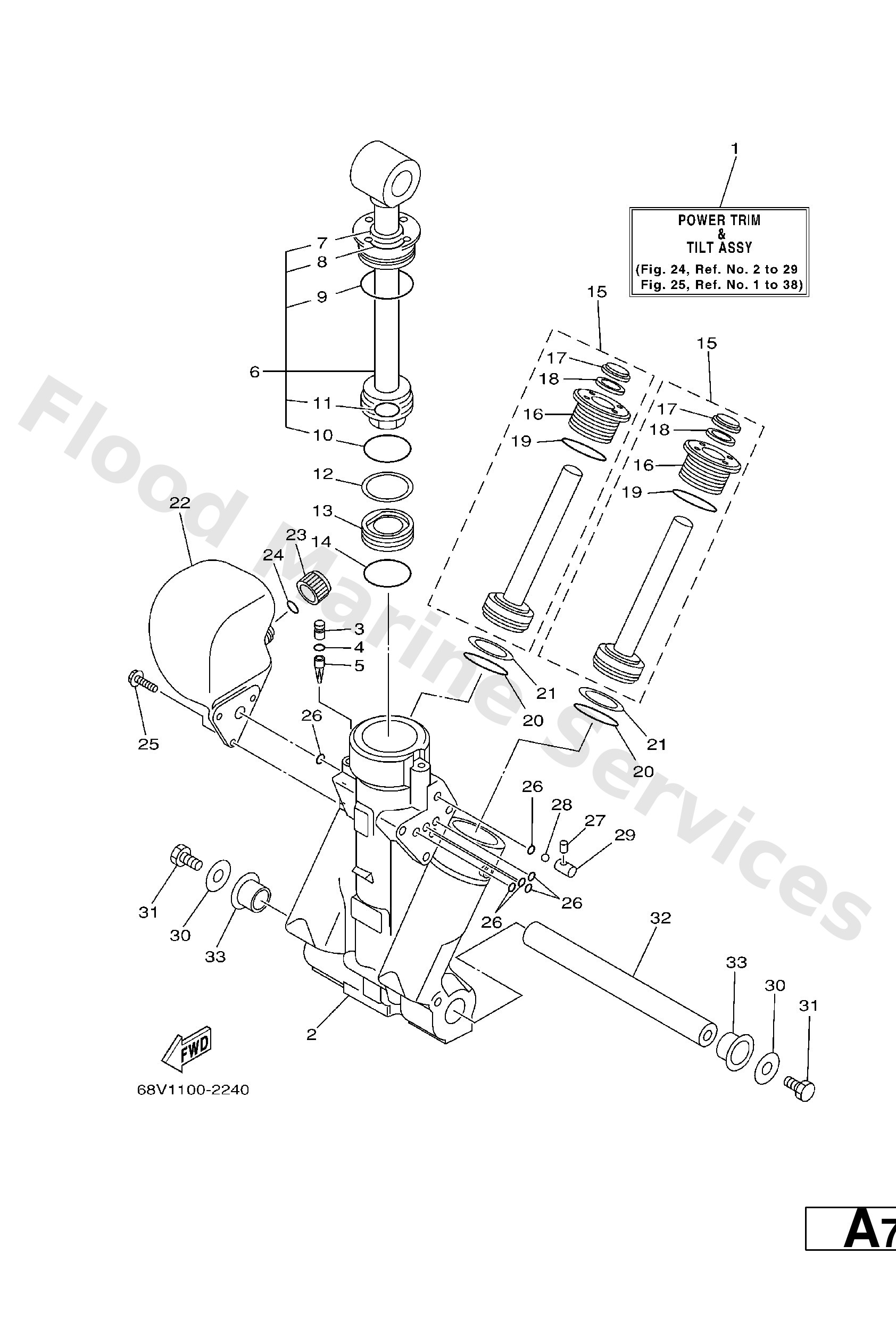

Diagram: POWER TRIM & TILT ASSY 1

Diagram

Parts List

Reference
Description
Price


1
68V−43800−01−4D
Power trim & tilt assembly
Loading…

↗
2
64E−43825−01
Housing, Trim & Tilt
Loading…

↗
3
64E−4388J−00
Plug 2
Loading…

↗
4
93210−10M74
O-ring
Loading…

↗
5
64E−43817−00
Filter 2
Loading…

↗
6
64E−43810−00
Tilt piston sub assembly
Loading…

↗
7
64E−43898−00
Seal, dust 2
Loading…

↗
8
64E−43867−00
O-ring 7
Loading…

↗
9
64E−43866−00
O-ring 6
Loading…

↗
10
6E5−43862−00
O-ring 2
Loading…

↗
11
64E−43883−00
O-ring 10
Loading…

↗
12
6E5−43872−00
Ring, back-up 2
Loading…

↗
13
6E5−43814−02
Piston, free
Loading…

↗
15
64E−43820−00
Trim piston sub assembly
Loading…

↗
16
64E−43821−00
Screw, trim cylinder end
Loading…

↗
17
64E−43822−00
Seal, trim dust
Loading…

↗
18
64E−4384J−00
Seal, trim down
Loading…

↗
19
6G5−43864−00
O-ring 4
Loading…

↗
20
6E5−43864−00
O-ring 4
Loading…

↗
21
6E5−43874−01
Ring, back-up 4
Loading…

↗
22
64E−43828−00
Body, reservoir
Loading…

↗
23
64E−43829−00
Plug, reservoir
Loading…

↗
24
64E−43897−00
O-ring
Loading…

↗
25
64E−4388E−00
Bolt ,screw (l:14mm)
Loading…

↗
26
64E−43869−00
O-ring 9
Loading…

↗
27
64E−4381G−00
Pin 1
Loading…

↗
28
6E5−43858−00
Ball 1
Loading…

↗
29
64E−4382G−00
Valve seat
Loading…

↗
30
90201−08M14
Washer, plate
Loading…

↗
31
97080−08016
Bolt
Loading…

↗
32
64E−43818−01
Lower shock mount pin set
Loading…

↗
33
90386−22M98
Bush(61u)
Loading…

↗
