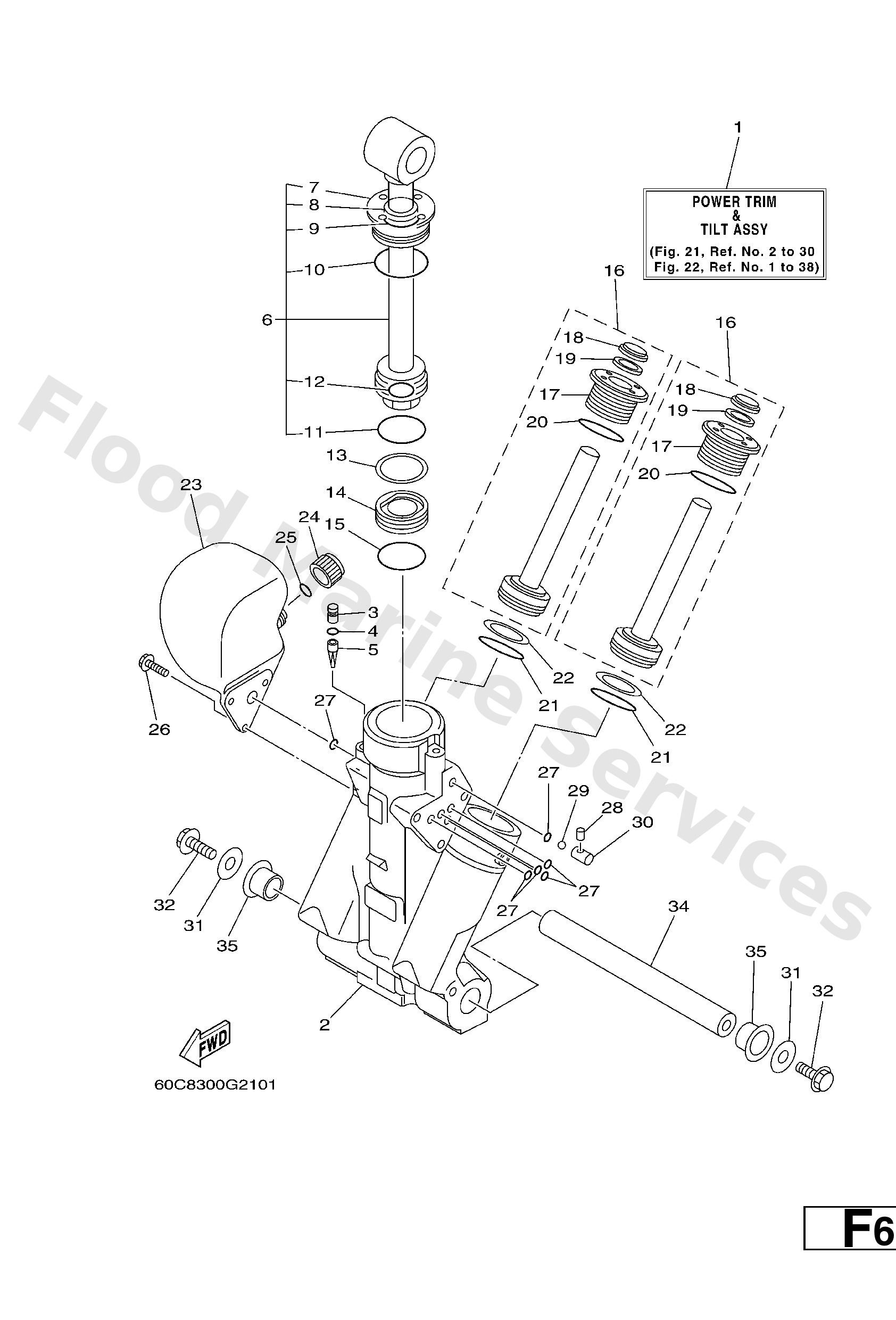

Diagram: POWER TRIM & TILT ASSY 1

Diagram

Parts List

Reference
Description
Price


1
68V43800034D
Power trim & tilt assembly
Loading…

↗
2
64E4382502
Housing, trim & tilt
Loading…

↗
3
64E4388J00
Plug 2
Loading…

↗
4
9321010M74
O-ring
Loading…

↗
5
64E4381700
Filter 2
Loading…

↗
6
64E4381001
Tilt piston sub assembly
Loading…

↗
7
64E4381101
Screw, cylinder end
Loading…

↗
8
64E4389800
Seal, dust 2
Loading…

↗
9
64E4386700
O-ring 7
Loading…

↗
10
64E4386600
O-ring 6
Loading…

↗
11
6E54386200
O-ring 2
Loading…

↗
12
64E4388300
O-ring 10
Loading…

↗
13
6E54387200
Ring, back-up 2
Loading…

↗
14
6E54381402
Piston, free
Loading…

↗
16
64E4382001
Trim piston sub assembly
Loading…

↗
17
64E4382101
Screw, trim cylinder end
Loading…

↗
18
64E4382200
Seal, trim dust
Loading…

↗
19
64E4384J00
Seal, trim down
Loading…

↗
20
6G54386400
O-ring 4
Loading…

↗
21
6E54386400
O-ring 4
Loading…

↗
22
6E54387401
Ring, back-up 4
Loading…

↗
23
64E4382800
Body, reservoir
Loading…

↗
24
64E4382900
Plug, reservoir
Loading…

↗
25
64E4389700
O-ring
Loading…

↗
26
64E4388E00
Bolt ,screw (l:14mm)
Loading…

↗
27
64E4386900
O-ring 9
Loading…

↗
28
64E4381G00
Pin 1
Loading…

↗
29
6E54385800
Ball 1
Loading…

↗
30
64E4382G00
Valve seat
Loading…

↗
31
9020110060 Go to P/N ) PE0-OM-080039
Washer, plate
Loading…

↗
32
9757510530 Go to P/N ) PE0-OM-080039
Bolt, with washer
Loading…

↗
34
6BC4381800 Go to P/N ) PE0-OM-080039
Pin, lower shock mount
Loading…

↗
35
9038622M98
Bush(61u)
Loading…

↗
