FL225FET (2014)
POWER TRIM & TILT ASSY 1

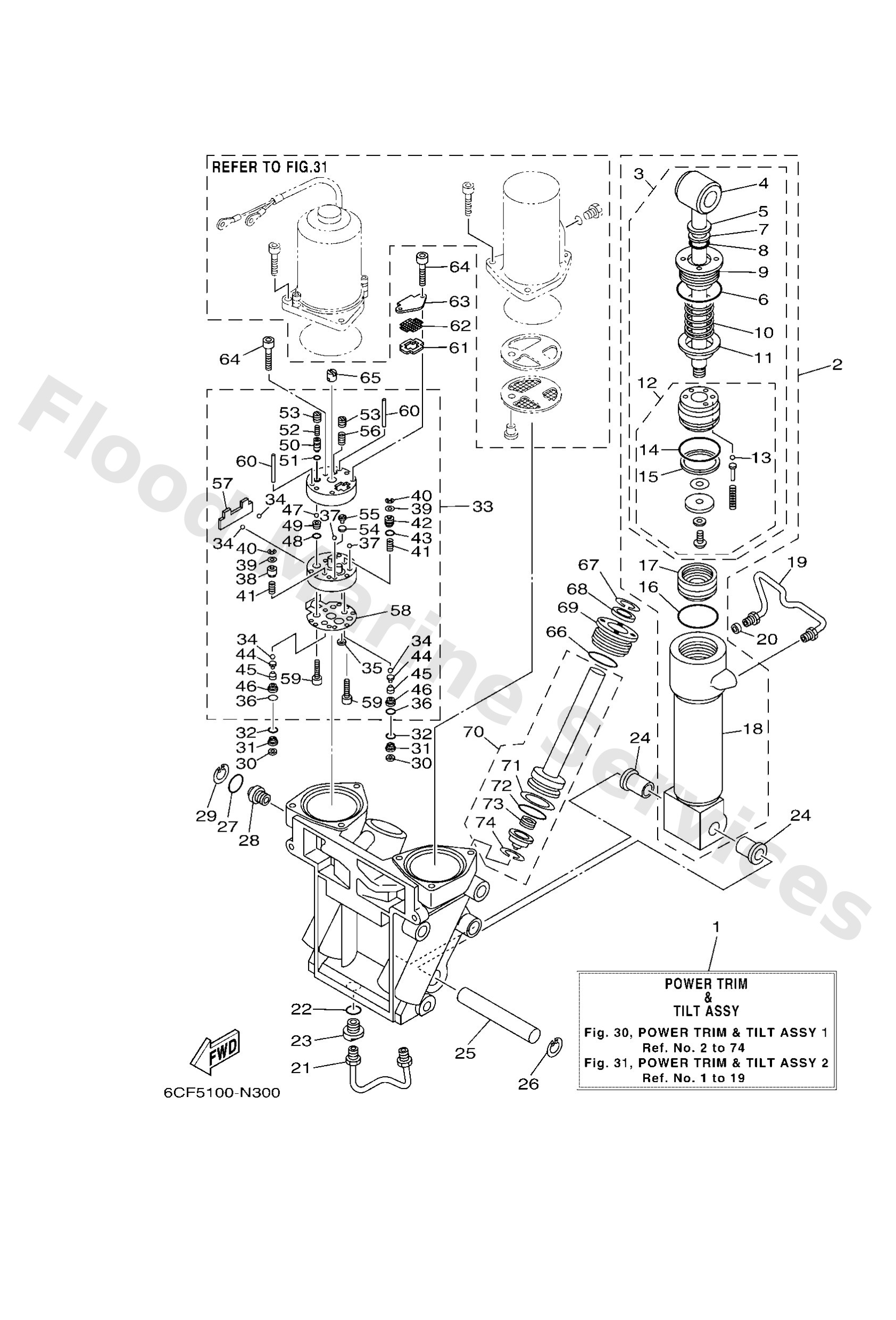

Diagram: POWER TRIM & TILT ASSY 1
Parts List
Reference
Description
Price
1
69J43800068D
Power trim & tilt assembly
Loading…
↗
2
6CE4384000
Power tilt assembly
Loading…
↗
3
6CE4381000
Tilt piston sub assembly
Loading…
↗
4
69J4380101
Rod
Loading…
↗
5
9310619N50
Oil seal
Loading…
↗
6
6H14386100
O-ring
Loading…
↗
7
6H14387200
Ring, back up
Loading…
↗
8
61A4389H01
O-ring
Loading…
↗
9
61A4381100
Screw, cylinder end
Loading…
↗
10
69J4384H00
Spring
Loading…
↗
11
69J4382E00
Adaptor 2
Loading…
↗
12
6CE4380P00
Piston sub assembly
Loading…
↗
13
9350532038
Ball(7fk)
Loading…
↗
14
61A4386100
O-ring
Loading…
↗
15
61A4387100
Ring, back up
Loading…
↗
17
6H14381400
Piston, free
Loading…
↗
18
61A4381301
Cylinder, tilt
Loading…
↗
19
61A4383501
Pipe
Loading…
↗
20
69J4388J00
Plug 2
Loading…
↗
21
69J4383301
Pipe
Loading…
↗
22
9321017239
O-ring (1j7)
Loading…
↗
23
69J4388E01
Bolt ,screw
Loading…
↗
24
9038618M14
Bushing (6e5)
Loading…
↗
25
61A4381800
Pin, lower shock mount
Loading…
↗
26
61A4387600
Ring, snap
Loading…
↗
27
6D84386300
O-ring
Loading…
↗
28
69J4384500
Screw, manual release
Loading…
↗
29
6H14387500
Ring, snap
Loading…
↗
30
69J4381C00
Filter 3
Loading…
↗
31
69J4389901
Plate stopper
Loading…
↗
32
69J4389J00
O-ring
Loading…
↗
33
69J4383001
Gear pump assembly
Loading…
↗
37
9350316003
Ball
Loading…
↗
38
6CJ4384M00
Piston, shuttle 2
Loading…
↗
39
69A4384F00
Seal, main valve
Loading…
↗
40
9900203600
Circlip(6l5)
Loading…
↗
41
69J4389400
Spring, shuttle return
Loading…
↗
42
6CJ4384100
Piston, shuttle
Loading…
↗
43
6H14388300
O-ring
Loading…
↗
44
60V4386A00
Pin, absorber valve
Loading…
↗
45
69J4385300
Spring, main valve
Loading…
↗
46
6CJ4389300
Washer
Loading…
↗
47
9350108001
Ball
Loading…
↗
48
9321008391
O-ring
Loading…
↗
49
69J4385100
Seat, relief valve
Loading…
↗
50
6CJ4384400
Pin, valve support
Loading…
↗
51
93210064A5
O-ring(61a)
Loading…
↗
52
69J4385500
Spring, up relief
Loading…
↗
53
6CJ4384300
Screw, valve lock
Loading…
↗
54
6H14384G11
Seal, relief valve
Loading…
↗
55
6H14384410
Pin, valve support
Loading…
↗
56
6H14385610
Spring, down relief
Loading…
↗
57
69J4385400
Spring, manual release
Loading…
↗
58
69J4384G00
Seal, relief valve
Loading…
↗
59
9131805025
Bolt,socket
Loading…
↗
60
9360435236
Pin, dowel
Loading…
↗
61
69J4387100
Ring, back up
Loading…
↗
62
69J4381600
Filter 1
Loading…
↗
63
69J4381J00
Plate
Loading…
↗
64
9131805040
Bolt,socket
Loading…
↗
65
69J4383100
Connector, shaft
Loading…
↗
67
6T44387501
Ring, snap
Loading…
↗
68
61A4382200
Seal, trim dust
Loading…
↗
69
61A4382101
Screw, trim cylinder end
Loading…
↗
70
69J4382001
Trim piston sub assembly
Loading…
↗
71
61A4387400
Ring, back up
Loading…
↗
72
61A4386400
O-ring
Loading…
↗
73
61A4384H10
Spring
Loading…
↗
74
61A4387510
Ring, snap
Loading…
↗
