L130BETO (2004)
POWER TRIM & TILT ASSY 1

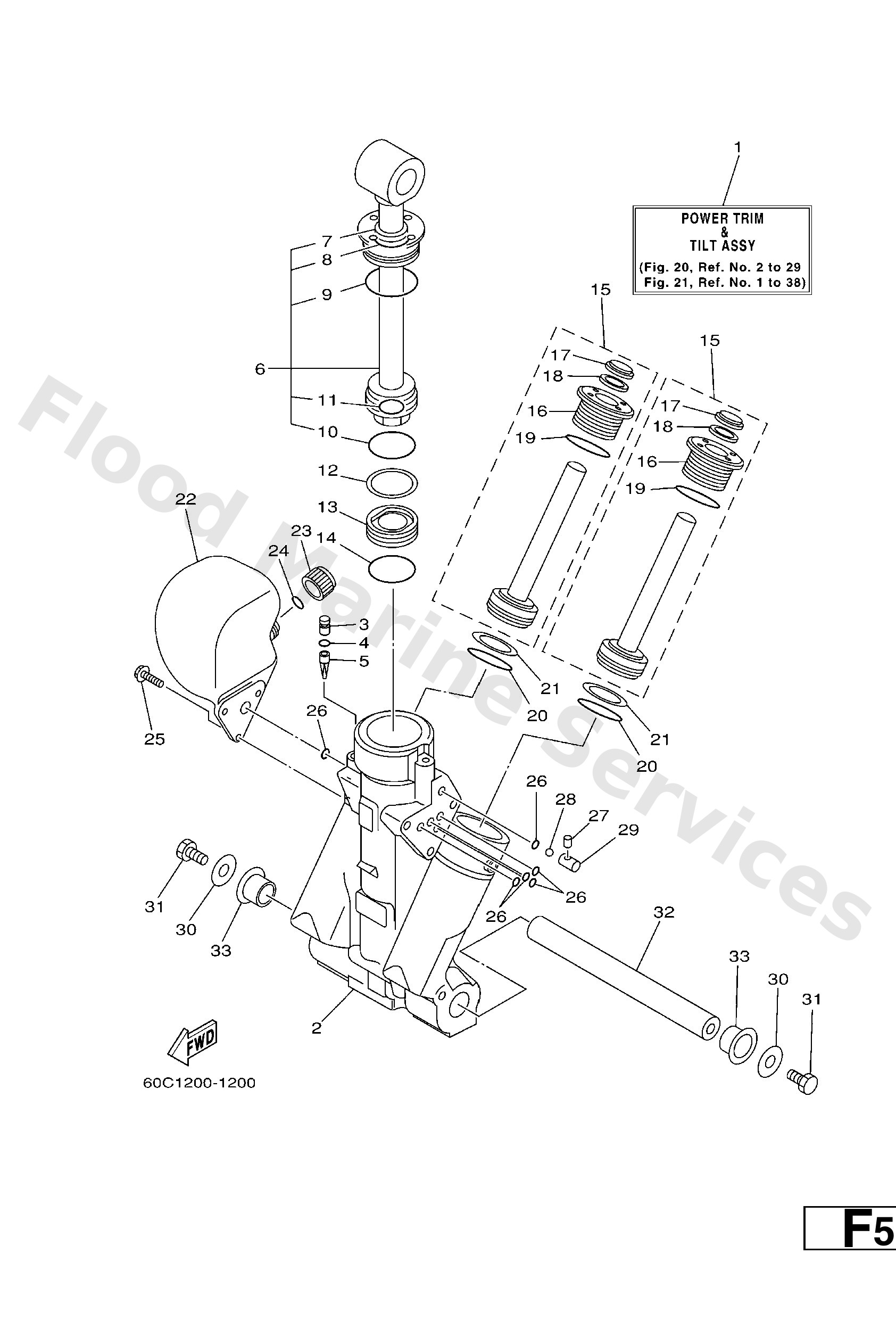

Diagram: POWER TRIM & TILT ASSY 1
Parts List
Reference
Description
Price
1
64E43800024D
Power trim & tilt assembly
Loading…
↗
2
64E4382501
Housing, Trim & Tilt
Loading…
↗
3
64E4388J00
Plug 2
Loading…
↗
4
9321010M74
O-ring
Loading…
↗
5
64E4381700
Filter 2
Loading…
↗
6
64E4381000
Tilt piston sub assembly
Loading…
↗
7
64E4389800
Seal, dust 2
Loading…
↗
8
64E4386700
O-ring 7
Loading…
↗
9
64E4386600
O-ring 6
Loading…
↗
10
6E54386200
O-ring 2
Loading…
↗
11
64E4388300
O-ring 10
Loading…
↗
12
6E54387200
Ring, back-up 2
Loading…
↗
13
6E54381402
Piston, free
Loading…
↗
15
64E4382000
Trim piston sub assembly
Loading…
↗
16
64E4382100
Screw, trim cylinder end
Loading…
↗
17
64E4382200
Seal, trim dust
Loading…
↗
18
64E4384J00
Seal, trim down
Loading…
↗
19
6G54386400
O-ring 4
Loading…
↗
20
6E54386400
O-ring 4
Loading…
↗
21
6E54387401
Ring, back-up 4
Loading…
↗
22
64E4382800
Body, reservoir
Loading…
↗
23
64E4382900
Plug, reservoir
Loading…
↗
24
64E4389700
O-ring
Loading…
↗
25
64E4388E00
Bolt ,screw (l:14mm)
Loading…
↗
26
64E4386900
O-ring 9
Loading…
↗
27
64E4381G00
Pin 1
Loading…
↗
28
6E54385800
Ball 1
Loading…
↗
29
64E4382G00
Valve seat
Loading…
↗
30
9020108M14
Washer, plate
Loading…
↗
31
9708008016
Bolt
Loading…
↗
32
64E4381801
Lower shock mount pin set
Loading…
↗
33
9038622M98
Bush(61u)
Loading…
↗
