LZ250DETO (2003)
POWER TRIM & TILT ASSY 1

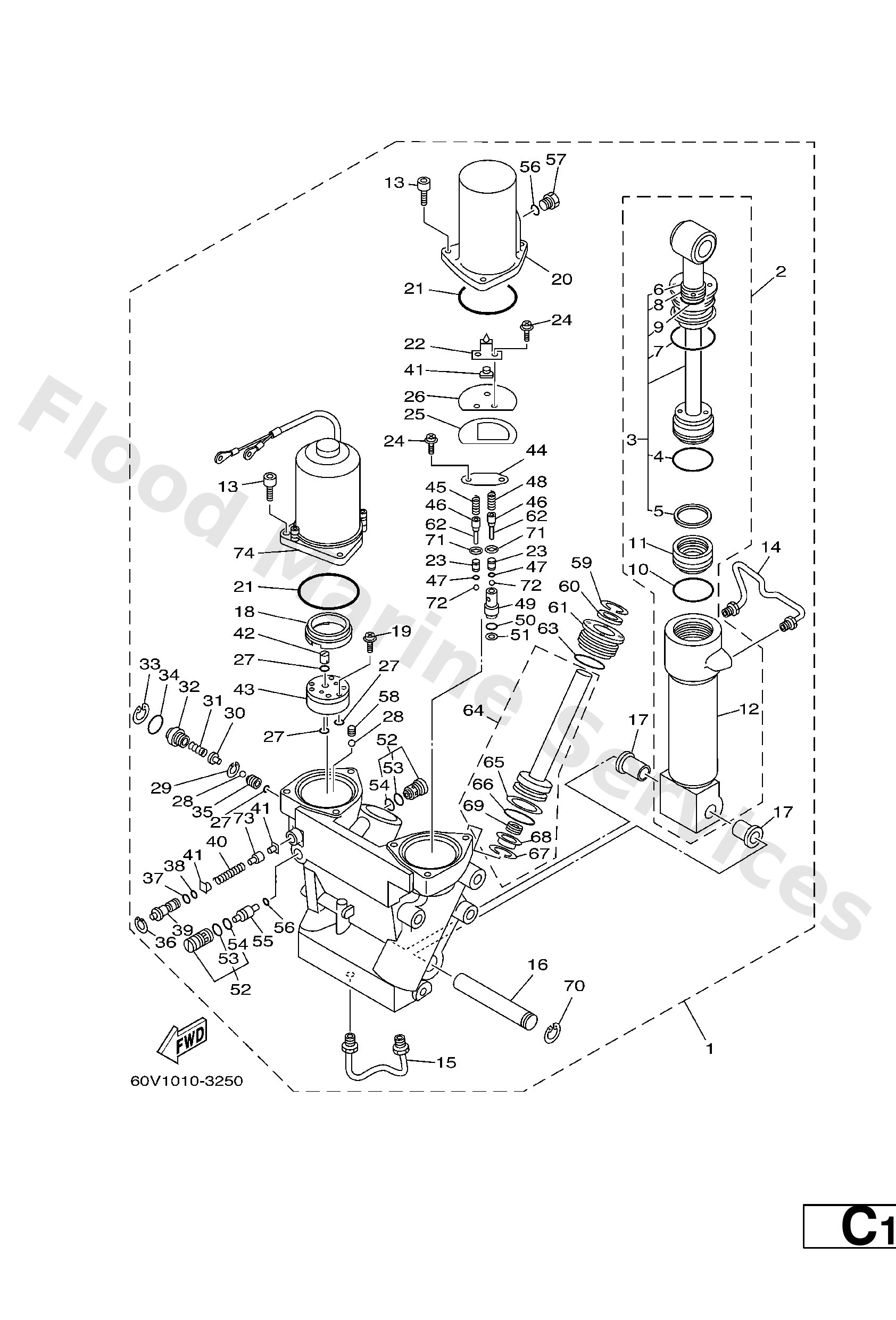

Diagram: POWER TRIM & TILT ASSY 1
Parts List
Reference
Description
Price
1
60V−43800−00−4D
Power trim & tilt assembly
Loading…
↗
2
61A−43840−01
Power tilt assembly
Loading…
↗
3
61A−43810−00
Tilt piston sub assembly
Loading…
↗
4
61A−43861−00
O-ring
Loading…
↗
5
61A−43871−00
Ring, back up
Loading…
↗
6
93106−19N50
Oil seal
Loading…
↗
7
6H1−43861−00
O-ring
Loading…
↗
8
6H1−43872−00
Ring, back up
Loading…
↗
9
61A−4389H−00
O-ring
Loading…
↗
11
6H1−43814−00
Piston, free
Loading…
↗
12
61A−43813−01
Cylinder, tilt
Loading…
↗
13
69J−43888−00
Bolt, socket
Loading…
↗
14
61A−43835−01
Pipe
Loading…
↗
15
61A−43833−01
Pipe
Loading…
↗
16
61A−43818−00
Pin, lower shock mount
Loading…
↗
17
90386−18M14
Bushing (6e5)
Loading…
↗
18
6H1−43817−00
Filter 2
Loading…
↗
19
97607−04230
Screw, pan head with washer
Loading…
↗
20
69J−43828−00
Body, reservoir
Loading…
↗
21
6H1−43869−00
O-ring
Loading…
↗
22
61A−4384L−00
22 −
Loading…
↗
23
6T4−43851−00
Seat, relief valve
Loading…
↗
24
97607−05210
26 −
Loading…
↗
25
61A−4384K−00
Plate, trim down
Loading…
↗
26
61A−4384J−00
Seal, trim down
Loading…
↗
27
93210−064A5
O-ring(61a)
Loading…
↗
28
93505−32038
Ball(7fk)
Loading…
↗
29
61A−43875−00
Ring, snap
Loading…
↗
30
61A−43848−00
Rod, manual release
Loading…
↗
31
61A−43854−00
Spring, manual release
Loading…
↗
32
61A−43845−00
Screw, manual release
Loading…
↗
33
6H1−43875−00
Ring, snap
Loading…
↗
34
93210−18397
O-ring (6g5)
Loading…
↗
35
61A−43847−00
Seat, manual valve
Loading…
↗
36
6T4−43876−00
Ring, snap
Loading…
↗
37
93210−07003
O-ring (11m)
Loading…
↗
38
93210−06001
O-ring (26h)
Loading…
↗
39
6T4−43849−00
Pin, valve support
Loading…
↗
40
61A−4385H−00
Spring, seal
Loading…
↗
41
61A−4384F−00
Seal, main valve
Loading…
↗
42
6H1−43831−00
Connector, shaft
Loading…
↗
43
6T4−43830−00
Gear pump assembly
Loading…
↗
44
61A−4382K−00
Cap, relief valve
Loading…
↗
45
6H1−43856−10
Spring, down relief
Loading…
↗
46
6T4−43844−00
Pin, valve support
Loading…
↗
47
6T4−4384G−00
Seal, relief valve
Loading…
↗
48
6T4−43855−00
Spring, up relief
Loading…
↗
49
6T4−43895−00
Seat, relief valve
Loading…
↗
50
93210−10M74
O-ring
Loading…
↗
51
6H1−43816−00
Filter 1
Loading…
↗
52
6T4−43802−03
Valve sub assembly
Loading…
↗
53
6H1−43866−00
O-ring
Loading…
↗
54
6H1−43867−00
O-ring
Loading…
↗
55
6T4−43841−00
Piston, shuttle
Loading…
↗
56
93210−09165
O-ring
Loading…
↗
57
6H1−43829−00
Plug, reservoir
Loading…
↗
58
61A−43878−00
Bolt, socket
Loading…
↗
59
6T4−43875−01
Ring, snap
Loading…
↗
60
61A−43822−00
Seal, trim dust
Loading…
↗
61
61A−43821−00
Screw, trim cylinder end
Loading…
↗
62
91609−10014
Pin, spring(61a)
Loading…
↗
64
61A−43820−10
Trim piston sub assembly
Loading…
↗
65
61A−43874−00
Ring, back up
Loading…
↗
66
61A−43864−00
O-ring
Loading…
↗
67
61A−43875−10
Ring, snap
Loading…
↗
68
61A−4383H−11
Hose, oil 5
Loading…
↗
69
61A−4384H−10
Spring
Loading…
↗
70
61A−43876−00
Ring, snap
Loading…
↗
71
6T4−43893−00
Washer
Loading…
↗
72
93501−08001
Ball
Loading…
↗
73
61A−4382A−00
Adaptor 1
Loading…
↗
74
69J−43880−00
Motor assembly
Loading…
↗
