XF425NSA7 (2019)
POWER TRIM & TILT ASSY 1

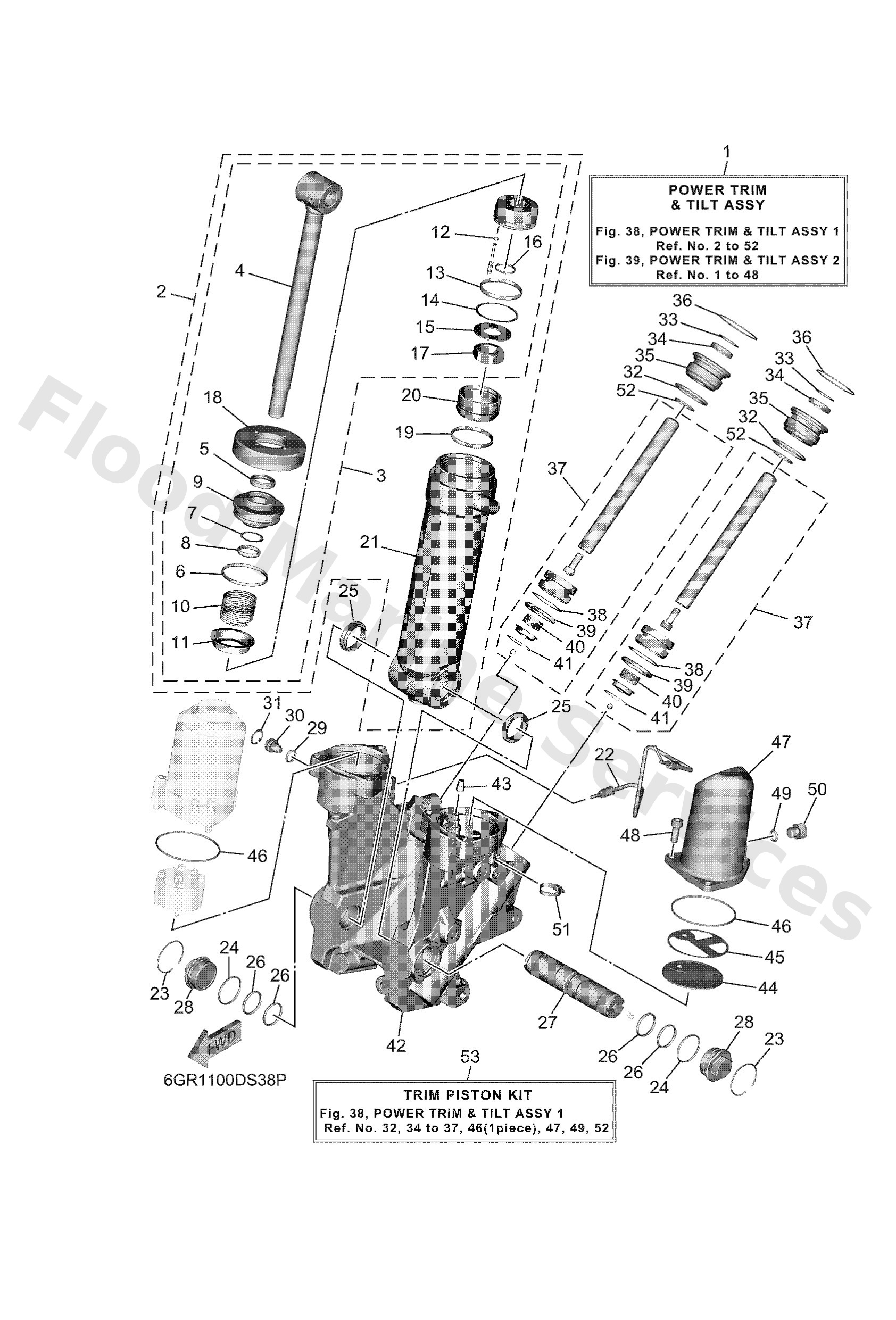

Diagram: POWER TRIM & TILT ASSY 1
Parts List
Reference
Description
Price
1
6GR4380009
Power trim & tilt assembly
Loading…
↗
1
6GR4380007
Power trim & tilt assembly
Loading…
↗
2
6GR4384000
Power tilt assembly
Loading…
↗
3
6GR4381000
Tilt piston sub assembly
Loading…
↗
4
6GR4380100
Rod
Loading…
↗
5
6GR4381200
Seal, dust
Loading…
↗
6
9321049046
O-ring (620)
Loading…
↗
7
6GR4387200
Ring, back up
Loading…
↗
8
6GR4386300
O-ring
Loading…
↗
9
6GR4381100
Screw, cylinder end
Loading…
↗
10
69J4384H00
Spring
Loading…
↗
11
6GR4382E00
Adaptor 2
Loading…
↗
12
9350532038
Ball(7fk)
Loading…
↗
13
9321044006
O-ring
Loading…
↗
14
6GR4387100
Ring, back up
Loading…
↗
15
9020118029
Washer, plate
Loading…
↗
16
9321018397
O-ring (6g5)
Loading…
↗
17
6GR4365400
Nut 1
Loading…
↗
18
6GR4382700
Ring set
Loading…
↗
20
6GR4381400
Piston, free
Loading…
↗
21
6GR4380K00
Cylinder, tilt sub assembly
Loading…
↗
22
6GR4383500
Pipe
Loading…
↗
23
9345042110
Circlip(5t9)
Loading…
↗
24
6GR4386200
O-ring
Loading…
↗
25
6GR4388F00
Spacer
Loading…
↗
26
6GR4386100
O-ring
Loading…
↗
27
6GR4381800
Pin, lower shock mount
Loading…
↗
28
6GR2247200
Cap, case
Loading…
↗
29
9321012327
O-ring(3ld)
Loading…
↗
30
6GR4384500
Screw, manual release
Loading…
↗
31
61A4387600
Ring, snap
Loading…
↗
32
61A4386100
FOR 6GR-43800-09/07
O-ring
Loading…
↗
33
6T44387501
FOR 6GR-43800-09
Ring, snap
Loading…
↗
34
69J4382200
FOR 6GR-43800-09
Seal, trim dust
Loading…
↗
34
6KN4381200
FOR 6GR-43800-07
Seal, dust
Loading…
↗
35
61A4382101
FOR 6GR-43800-09
Screw, trim cylinder end
Loading…
↗
35
6KN4382100
FOR 6GR-43800-07
Screw, trim cylinder end
Loading…
↗
36
9344052N50
FOR 6GR-43800-09
Circlip
Loading…
↗
36
6KN2541500
FOR 6GR-43800-07
Circlip
Loading…
↗
37
6GR4382000
FOR 6GR-43800-09
Trim piston sub assembly
Loading…
↗
37
6KN4382000
FOR 6GR-43800-07
Trim piston sub assembly
Loading…
↗
38
61A4387400
Ring, back up
Loading…
↗
39
61A4386400
O-ring
Loading…
↗
40
61A4384H10
Spring
Loading…
↗
41
61A4387510
Ring, snap
Loading…
↗
42
6GR4380L00
FOR 6GR-43800-09
Housing, trim & tilt sub assembly
Loading…
↗
42
6GR4380L03
FOR 6GR-43800-07
Housing, Trim & Tilt Sub assembly
Loading…
↗
43
6GR4388H00
Plug
Loading…
↗
44
69J4381700
Filter 2
Loading…
↗
45
69J4388F00
Spacer
Loading…
↗
46
9321066001
FOR 6GR-43800-09/07
O-ring
Loading…
↗
47
6GR4382800
FOR 6GR-43800-09
Body, reservoir
Loading…
↗
47
6KN4382800
FOR 6GR-43800-07
Body, reservoir
Loading…
↗
48
69J4388800
Bolt, socket
Loading…
↗
49
9321009165
FOR 6GR-43800-09/07
O-ring
Loading…
↗
50
6EK4382900
Plug, reservoir
Loading…
↗
51
9046511M10
Clamp
Loading…
↗
52
9321023587
FOR 6GR-43800-09
O-ring
Loading…
↗
53
6KNW438200
Trim piston kit
Loading…
↗
